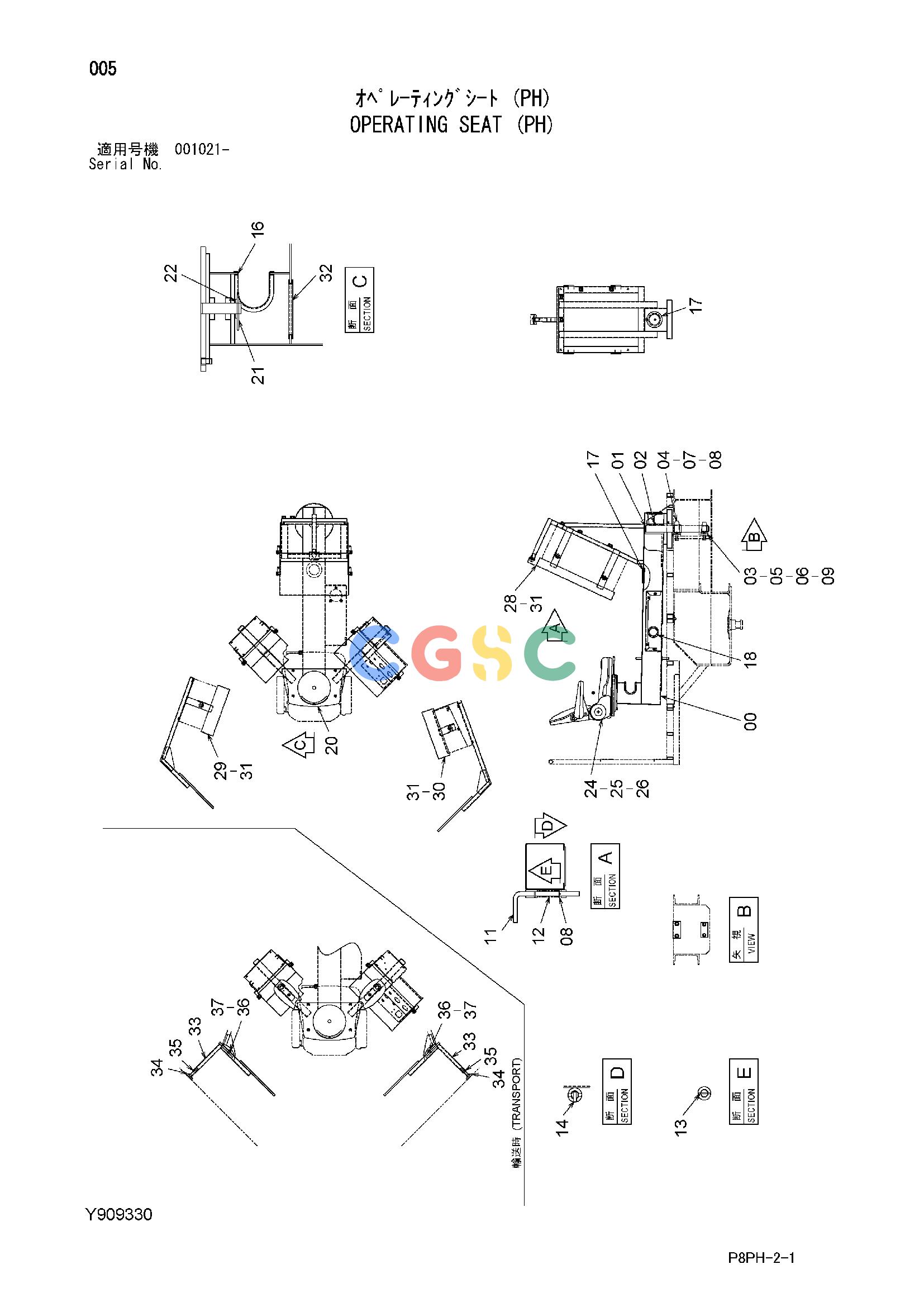

日立零件查询（AR2000）OPERATING SEAT (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802015 | [1] | ARM | |
| 01. | Y411736 | [1] | SHAFT | |
| 02. | Y411737 | [1] | SCREW;SET | |
| 03. | Y411740 | [1] | BRG.;UNIT | |
| 04. | Y411741 | [1] | BRG.;UNIT | |
| 05. | J901445 | [2] | BOLT | |
| 06. | A590114 | [2] | WASHER;PLANE | |
| 07. | J901645 | [2] | BOLT | |
| 08. | A590116 | [3] | WASHER;PLANE | |
| 09. | Y410988 | [1] | PLATE | |
| 11. | Y407403 | [1] | LOCK | |
| 12. | Y407744 | [1] | SPRING | |
| 13. | 4116302 | [1] | PIN;SPRING | |
| 14. | 4116308 | [1] | PIN;SPRING | |
| 16. | Y411738 | [1] | TRIM;SEAL | |
| 17. | 4084525 | [2] | BUSHING;RUBBER | |
| 18. | 4087462 | [1] | BUSHING;RUBBER | |
| 20. | Y700925 | [1] | BASE | |
| 21. | K422098 | [1] | PIN;LOCK | |
| 22. | A590124 | [1] | WASHER;PLANE | |
| 24. | Y404853 | [1] | SEAT | |
| 25. | M500807 | [4] | NUT | |
| 26. | A590908 | [4] | WASHER;SPRING | |
| 28. | Y700844 | [1] | COVER | |
| 29. | Y801912 | [1] | COVER | |
| 30. | Y802062 | [1] | COVER | |
| 31. | M570010 | [8] | NUT;WING | |
| 32. | Y411993 | [1] | TRIM;SEAL | |
| 33. | Y971557 | [2] | SUPPORT | |
| 34. | Y412929 | [2] | ADJUSTER | |
| 35. | J950016 | [2] | NUT | |
| 36. | J781020 | [2] | BOLT;SOCKET | |
| 37. | A590110 | [2] | WASHER;PLANE | |
| 38. | Y412533 | [3] | BELT | |
