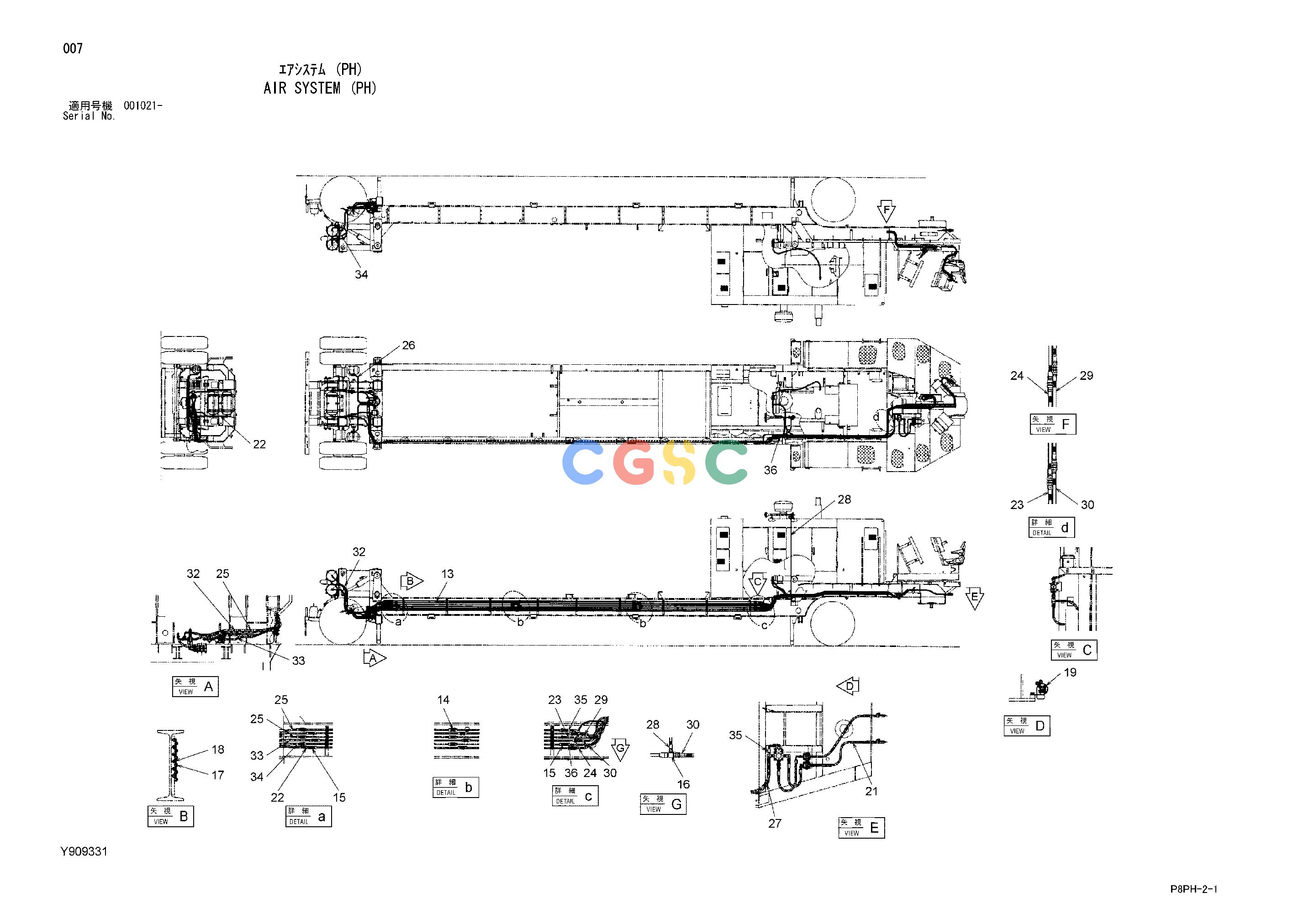

日立零件查询（AR2000）AIR SYSTEM (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
140 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11. | 4327293 | [6] | PROTECTOR | dia. 10mmX600mm BLACK -40~+90℃ |
| 12. | 4327294 | [100] | PROTECTOR | dia. 18.5mmX500mm BLACK -40~+90℃ |
| 13. | Y408450 | [18] | PIPE | |
| 14. | Y408721 | [12] | ADAPTER;S | |
| 15. | Y408736 | [11] | ADAPTER;S | |
| 16. | Y409074 | [1] | TEE;S | |
| 17. | Y409242 | [54] | CLIP;PIPE | |
| 18. | J260820 | [54] | BOLT;SEMS | |
| 18A. | J900820 | [1] | BOLT | |
| 18B. | A590108 | [1] | WASHER;PLANE | |
| 19. | 4193816 | [5] | CLIP | |
| 21. | 4305011 | [2] | HOSE | |
| 22. | Y408663 | [1] | HOSE | |
| 23. | Y411638 | [1] | HOSE | |
| 24. | Y411637 | [1] | HOSE | |
| 25. | Y408659 | [2] | HOSE | |
| 26. | Y408676 | [4] | HOSE | |
| 27. | Y408668 | [1] | HOSE | |
| 28. | 4304983 | [1] | HOSE | |
| 29. | Y411642 | [1] | HOSE | |
| 30. | Y411641 | [1] | HOSE | |
| 32. | 4289359 | [2] | HOSE | |
| 33. | 4305014 | [1] | HOSE | |
| 34. | 4286515 | [1] | HOSE | |
| 35. | Y413048 | [1] | HOSE | |
| 36. | 4286514 | [1] | HOSE | |
| 38. | 4327315 | [60] | PROTECTOR | dia. 10mmX600mm BLACK -50~+140℃ |
