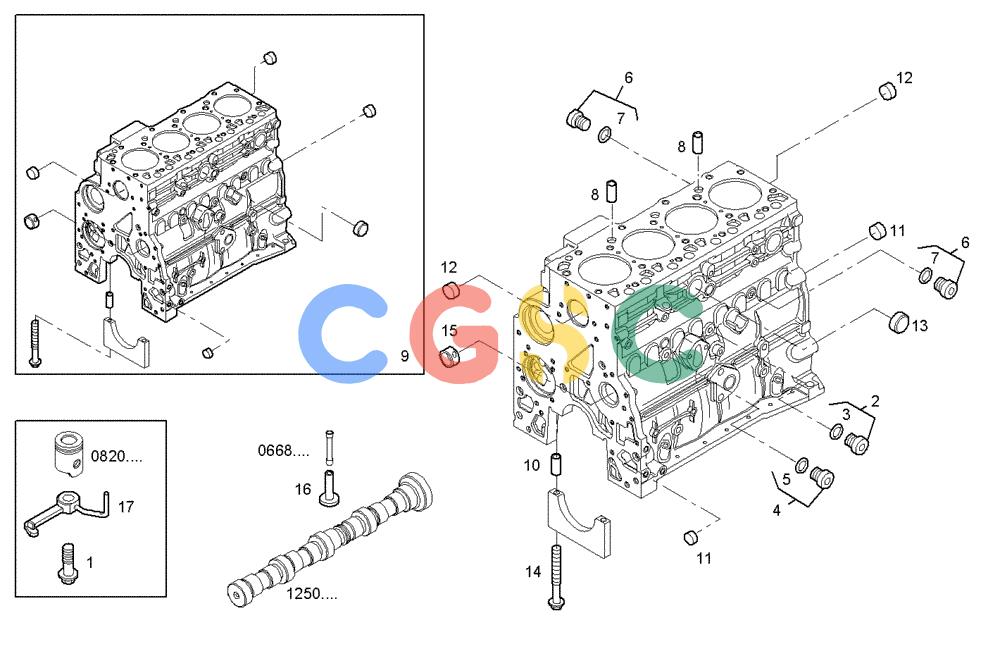

神钢零件查询(F4GE9484D J601) - ENGINE - 5801370290 - 84301930.. (1/07-12/07) (0401.031) - CRANKCASE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
941 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4894218 | [4] | SCREW,Special, M8 x 20 | TORSCREW CONNECTOR, M8X1.25 |
| 2. | 4895605 | [1] | HEX SOCKET PLUG,M14 x 1.5 | TORPLUG, ASSY M14X1,5, UP TO # 328585 |
| 3. | 4899115 | [1] | O-RING,2.2mm Thk x 11.3mm ID | TORO-RING, UP TO # 328585 |
| 4. | 4899009 | [1] | PLUG,M10 x1 | TORTHREADED PLUG, ASSY M10X1, UP TO # 328585 |
| 5. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TORO-RING, UP TO # 328585 |
| 6. | 4895392 | [2] | HEX SOCKET PLUG,M18 x 1.5 | TORTHREADED PLUG, ASSY M18X1,5 |
| 7. | 4895393 | [2] | O-RING,2.2mm Thk x 15.3mm ID | TORO-RING |
| 8. | 4895049 | [2] | DOWEL,M16.05 x 10 | TORDOWEL PIN |
| 10. | 4899026 | [10] | DOWEL,M18 x 10 | TORDOWEL PIN |
| 11. | 4895039 | [3] | EXPANSION PLUG,M17.73 | TORPLUG, dia=17 MM |
| 12. | 4895038 | [4] | EXPANSION PLUG,M58.06 | TORPLUG, dia=58 MM |
| 13. | 4895228 | [2] | EXPANSION PLUG,35.23mm x 7.94mm | TORPLUG, dia=35 MM |
| 14. | 4891353 | [10] | SCREW,Flg Hd, M12 x 1.5 x 120 | TORHEXAGON BOLT, M12X120 MM |
| 15. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TORCAMSHAFT BEARING |
| 16. | J931623 | [8] | TAPPET | CASTAPPET Superseded by part number: 4895180 |
| 17. | 2852202 | [4] | NOZZLE, PISTON COOLI | TOROIL NOZZLE, ASSY Superseded by part number: 5801910166, 5801639154 |
