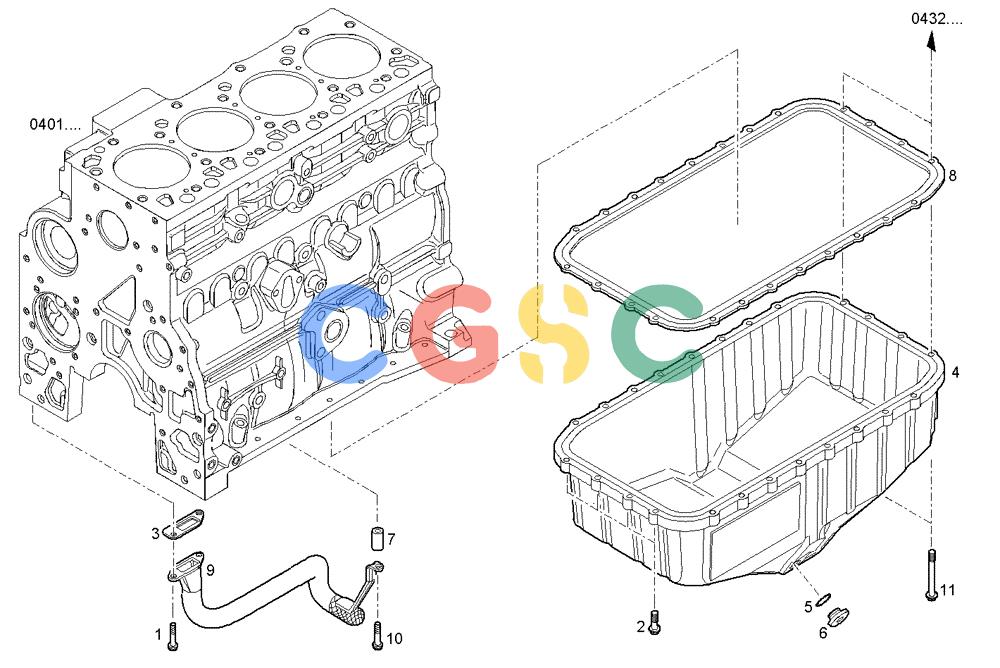

神钢零件查询(F4GE9484D J601) - ENGINE - 5801370290 - 84301930.. (1/07-12/07) (0420.180) - OIL SUMP Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
113 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 16586325 | [2] | BOLT,Hex, M8 x 20mm, Cl 8.8 | TORHEXAGON BOLT, M8X20 MM Superseded by part number: 16673635 |
| 2. | 4899091 | [22] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BASHEXAGON BOLT |
| 3. | 4898301 | [1] | GASKET,0.42mm Thk | TORFLAT ENGINE GASKET |
| 5. | 4895584 | [1] | O-RING,0.924mm ID x 0.103mm Width | TORO-RING Superseded by part number: 17282280 |
| 6. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TORTHREADED PLUG, M22X1,5 |
