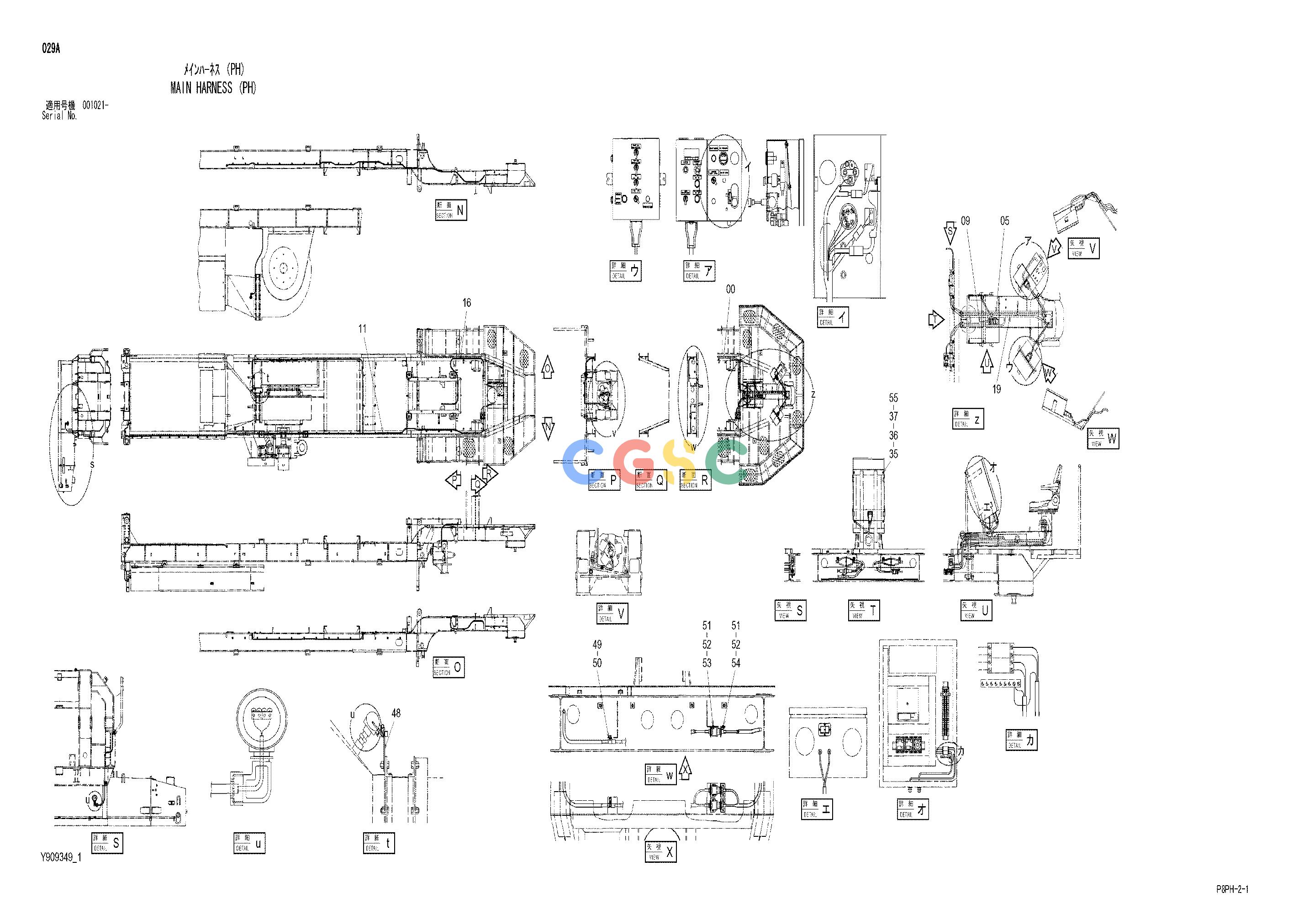

日立零件查询（AR2000）MAIN HARNESS (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
818 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y000030 | [1] | HARNESS;WIRE | |
| 05. | Y100695 | [1] | HARNESS;WIRE | |
| 07. | Y200354 | [1] | HARNESS;WIRE | |
| 09. | Y411942 | [1] | HARNESS;WIRE | |
| 11. | Y411943 | [1] | HARNESS;WIRE | |
| 12. | Y413125 | [1] | HARNESS;WIRE | |
| 16. | Y413116 | [1] | HARNESS;WIRE | |
| 17. | Y301857 | [1] | HARNESS;WIRE | |
| 18. | Y413176 | [1] | HARNESS;WIRE | |
| 19. | Y302025 | [1] | HARNESS;WIRE | |
| 31. | J901016 | [3] | BOLT | |
| 33. | A590110 | [3] | WASHER;PLANE | |
| 34. | A590910 | [3] | WASHER;SPRING | |
| 35. | J901250 | [4] | BOLT | |
| 36. | A590112 | [8] | WASHER;PLANE | |
| 37. | A590912 | [4] | WASHER;SPRING | |
| 40. | Y414916 | [1] | HARNESS;WIRE | |
| 41. | Y413983 | [2] | PLATE | |
| 42. | M430610 | [4] | SCREW | |
| 43. | A590106 | [4] | WASHER;PLANE | |
| 44. | A590104 | [16] | WASHER;PLANE | |
| 45. | A590904 | [8] | WASHER;SPRING | |
| 46. | M500403 | [8] | NUT | |
| 47. | M430420 | [8] | SCREW | |
| 48. | Y971180 | [1] | BRACKET | |
| 49. | J271016 | [1] | BOLT;SEMS | |
| 49A. | J901016 | [1] | BOLT | |
| 49B. | J222010 | [1] | WASHER | |
| 50. | 4448037 | [1] | BRACKET | |
| 51. | J260620 | [8] | BOLT;SEMS | |
| 51A. | J900620 | [1] | BOLT | |
| 51B. | A590106 | [1] | WASHER;PLANE | |
| 52. | Y413982 | [4] | TRIM;SEAL | |
| 53. | Y971585 | [2] | ANGLE | |
| 54. | Y971586 | [2] | ANGLE | |
| 55. | J950012 | [4] | NUT | |
