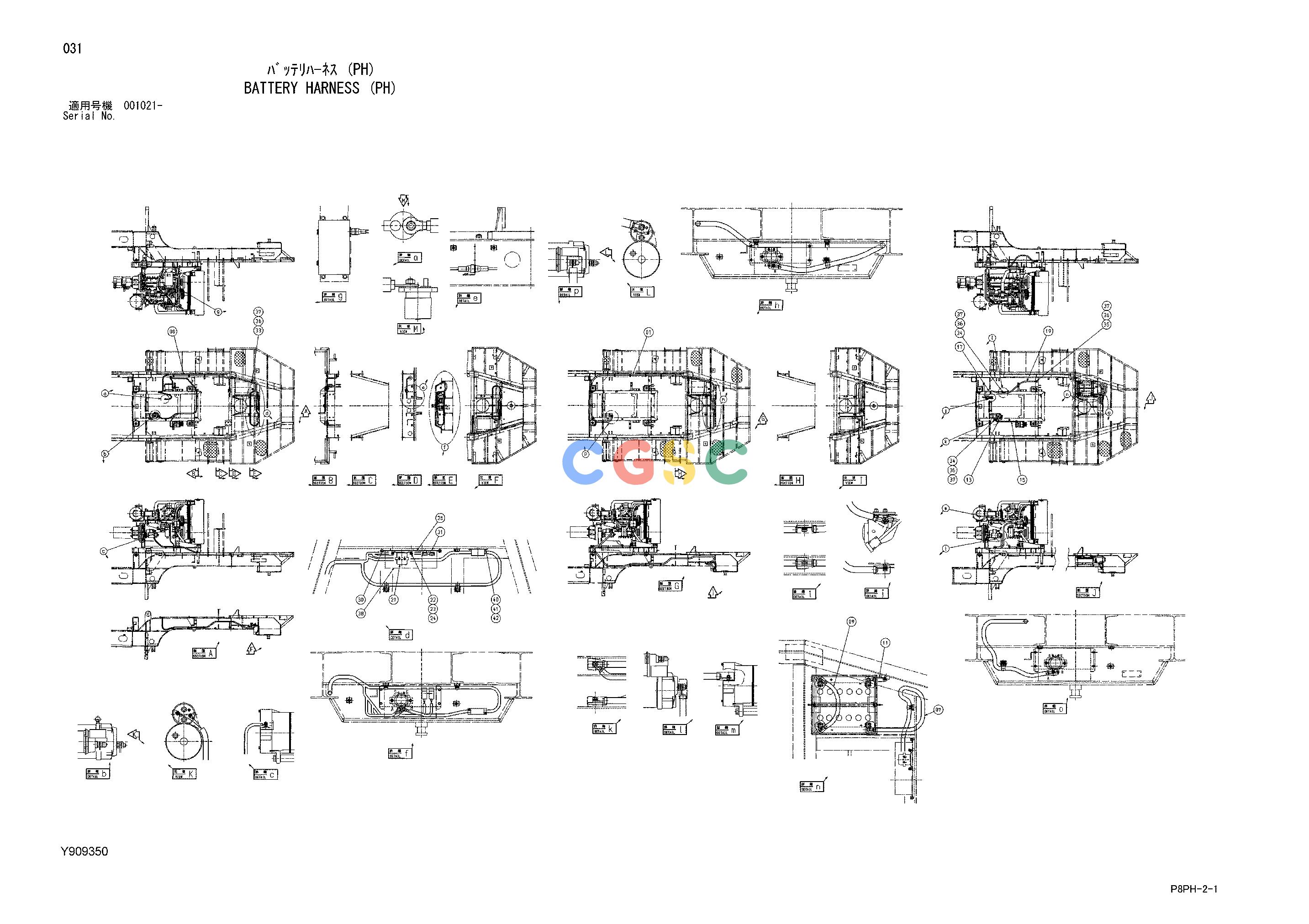

日立零件查询（AR2000）BATTERY HARNESS (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
597 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y200377 | [1] | HARNESS;WIRE | |
| 01. | Y413118 | [1] | HARNESS;WIRE | |
| 07. | Y411935 | [1] | HARNESS;WIRE | |
| 09. | Y411936 | [1] | HARNESS;WIRE | |
| 11. | Y411937 | [1] | HARNESS;WIRE | |
| 13. | Y411938 | [1] | HARNESS;WIRE | |
| 15. | Y411939 | [1] | HARNESS;WIRE | |
| 17. | Y411940 | [1] | HARNESS;WIRE | |
| 19. | Y411941 | [1] | HARNESS;WIRE | |
| 21. | 4255762 | [1] | RELAY;BATTERY | |
| 22. | J900820 | [2] | BOLT | |
| 23. | A590908 | [2] | WASHER;SPRING | |
| 24. | A590108 | [2] | WASHER;PLANE | |
| 25. | Y802184 | [1] | BRACKET | |
| 30. | J260812 | [4] | BOLT;SEMS | |
| 30A. | J900812 | [1] | BOLT | |
| 30B. | A590108 | [1] | WASHER;PLANE | |
| 31. | Y412688 | [2] | CLIP | |
| 33. | J901050 | [1] | BOLT | |
| 34. | J901040 | [2] | BOLT | |
| 35. | J901030 | [1] | BOLT | |
| 36. | A590110 | [4] | WASHER;PLANE | |
| 37. | A590910 | [4] | WASHER;SPRING | |
| 38. | Y200378 | [1] | COVER | |
| 40. | M430410 | [2] | SCREW | |
| 41. | A590904 | [2] | WASHER;SPRING | |
| 42. | A590104 | [2] | WASHER;PLANE | |
