神钢零件查询(F4GE9484D J601) - ENGINE - 5801370290 - 84301930.. (1/07-12/07) (0630.028) - CYL. HEAD COVERS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
374 次

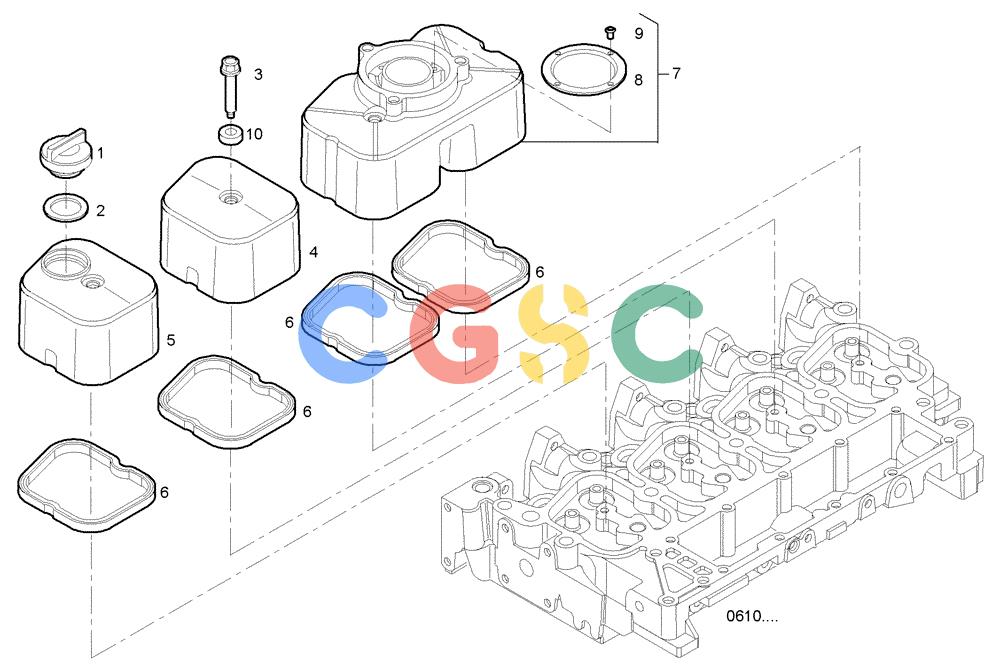

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895202 | [1] | FILLER CAP | TOROIL FILLER PLUG |
| 2. | 4895296 | [1] | SEALING RING,30mm ID x 48mm OD x 3mm Thk | TORSEAL GASKET |
| 3. | 4895214 | [4] | SCREW,Flng, M8 x 1.25 x 34.549mm, Cl 8.8 | TORHEXAGON BOLT, M8X1,25 |
| 4. | 2852032 | [1] | VALVE COVER | TORCYL. HEAD COVER Superseded by part number: 504065040 |
| 5. | 504065039 | [1] | COVER | SMCYL. HEAD COVER Superseded by part number: 2852894 |
| 6. | 2852033 | [4] | GASKET,7mm Thk | TORHEAD COVER GASKET Superseded by part number: 504053522 |
| 7. | 2830784 | [1] | VALVE COVER | TORCYL. HEAD COVER |
| 8. | 2830775 | [1] | BAFFLE | TORCENTERING RING |
| 9. | 2852034 | [4] | SCREW | TORSCREW Superseded by part number: 16784504 |
| 10. | J935449 | [4] | ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L | CASDOWEL Superseded by part number: 4895360 |
