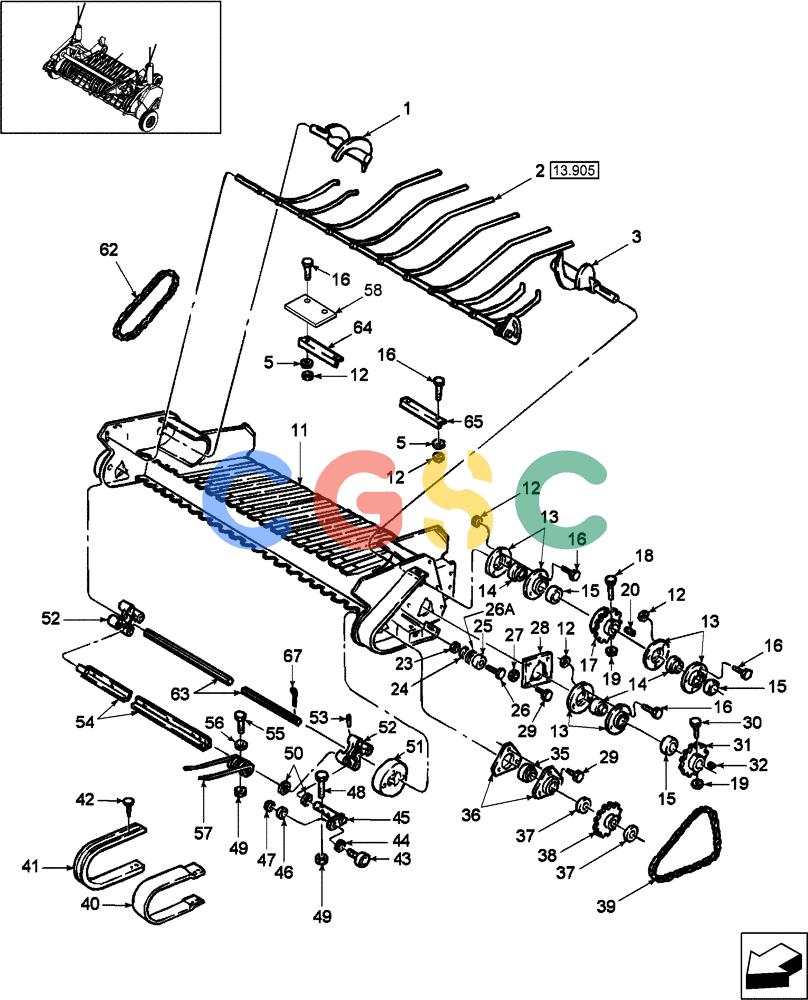

| 1. |
86637289
|
[1] |
AUGER
|
NH
RH
|
| 2. |
86634560
|
[1] |
ROD ASSY.
|
NH
Windguard
|
| 3. |
86636663
|
[1] |
AUGER
|
NH
LH
|
| 5. |
495-11034
|
[5] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| 11. |
86837216
|
[1] |
FRAME
|
NH
Pickup
|
| 12. |
825-5148
|
[19] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 13. |
86603075
|
[10] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
Bearing
|
| 14. |
214366C91
|
[3] |
BALL BEARING,25.40mm ID x 52mm OD
|
IH
Ball Superseded by part number: 204807C91
|
| 15. |
455102R21
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw Superseded by part number: 47577183
|
| 16. |
811-10030
|
[13] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 17. |
86636650
|
[2] |
DRIVEN SPROCKET
|
NH
17T
|
| 18. |
485-13812
|
[2] |
SET SCREW,Sq Hd, 3/8"-16 x 3/4"
|
CAS
Superseded by part number: 87616
|
| 19. |
86509499
|
[2] |
JAM NUT,3/8"-16, G2
|
ZED
|
| 20. |
86628576
|
[2] |
KEY
|
NH
1/4" Sq. x 1-1/4" Long
|
| 21. |
9849661
|
[1] |
CHAIN
|
NH
Roller, #50, 5/8" Pitch, 76 Pitches Superseded by part number: 1791DX
|
| . . |
42472
|
[1] |
CONNECTING LINK
|
NH
RC50, Cotter Style Superseded by part number: 86537460
|
| . . |
25816
|
[3] |
OFFSET LINK
|
GI
RC50 Superseded by part number: 86595276
|
| 23. |
825-1412
|
[3] |
NUT,M12, Cl 8
|
CAS
Superseded by part number: 9706685
|
| 24. |
140046
|
[3] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 25. |
86514717
|
[2] |
IDLER WHEEL
|
NH
Nylon
|
| 26. |
811-12060
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8
|
NH
Superseded by part number: 412097
|
| . . |
495-21069
|
[1] |
WASHER,5/8"
|
CAS
Superseded by part number: 80299
|
| 26A. |
29684
|
[2] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
17/32" ID x 2" OD x 3/16" Thk
|
| 27. |
825-51410
|
[20] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 28. |
86636899
|
[1] |
MOUNTING PLATE
|
NH
|
| 29. |
905-10020
|
[18] |
BOLT,Hex Flg, M10 x 20mm
|
CAS
Superseded by part number: 274249
|
| 30. |
84983
|
[2] |
SET SCREW,3/8" x 1"
|
GI
Set, Sq. Hd., CL 12.9, M10 x 1.5 x 25
|
| 31. |
86637156
|
[1] |
DRIVEN SPROCKET
|
NH
22T
|
| 32. |
126-24
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1"
|
CAS
Superseded by part number: 47471
|
| 35. |
121602
|
[2] |
BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W
|
NH
|
| 36. |
86620026
|
[4] |
FLANGED BEARING
|
NH
|
| 37. |
9800957
|
[6] |
WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk
|
NH
|
| 38. |
86637251
|
[2] |
DRIVEN SPROCKET
|
NH
44T
|
| 39. |
309046
|
[1] |
CHAIN,#50, 96 Links x 15.88mm = 1524mm
|
NH
Roller, #50, 96 Pitches, Includes: (1) Roller Link
|
| . . |
25194
|
[2] |
CONNECTING LINK
|
GI
RC50, Spring Style Superseded by part number: 86537460
|
| 40. |
86634554
|
[2] |
SUPPORT
|
NH
End Guard
|
| 41. |
86618417
|
[23] |
GUARD
|
NH
1.5M Pickup
|
| 42. |
412093
|
[105] |
SELF-TAP SCREW
|
NH
M6 x 1 x 12
|
| 43. |
84350126
|
[4] |
CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L
|
NH
|
| 44. |
703960
|
[1] |
WASHER
|
NH
1-1/4" OD, Hardened Superseded by part number: 87642988
|
| 45. |
86634547
|
[4] |
SHAFT
|
NH
|
| 46. |
65319
|
[1] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 47. |
88130
|
[4] |
NUT,1/2"-20, GC
|
NH
|
| 48. |
814-10050
|
[16] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 49. |
832-46410
|
[59] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 50. |
688917
|
[8] |
WASHER
|
NH
Superseded by part number: 86634532
|
| 51. |
86634545
|
[1] |
CAM
|
NH
|
| 52. |
86634546
|
[2] |
COUPLING
|
NH
|
| 53. |
326210
|
[2] |
GROOVED PIN
|
NH
Type A, 5/16" x 1-3/4"
|
| 54. |
86628669
|
[4] |
ANGLE BAR
|
NH
|
| 55. |
614-10030
|
[44] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 56. |
9618968
|
[48] |
WASHER,0.41" ID x 0.78" OD x 0.1" Thk
|
NH
13/32", Hardened
|
| 57. |
86551419
|
[48] |
FINGER
|
PA
Superseded by part number: 86632007
|
| 58. |
855657
|
[2] |
PAD
|
NH
|
| 62. |
121202
|
[1] |
CHAIN
|
NH
RC50, 5/8" Pitch, ASA Standard, Riveted Type, 79 Pitches, Includes" (1) Offset Link Superseded by part number: 1791DX
|
| 63. |
86543385
|
[1] |
SHAFT
|
NH
Hex
|
| 64. |
86633239
|
[1] |
ANGLE
|
NH
RH
|
| 65. |
86633238
|
[1] |
ANGLE
|
NH
LH
|
| 67. |
733-5040
|
[2] |
COTTER PIN,M5 x 40
|
CAS
Superseded by part number: 130011
|
