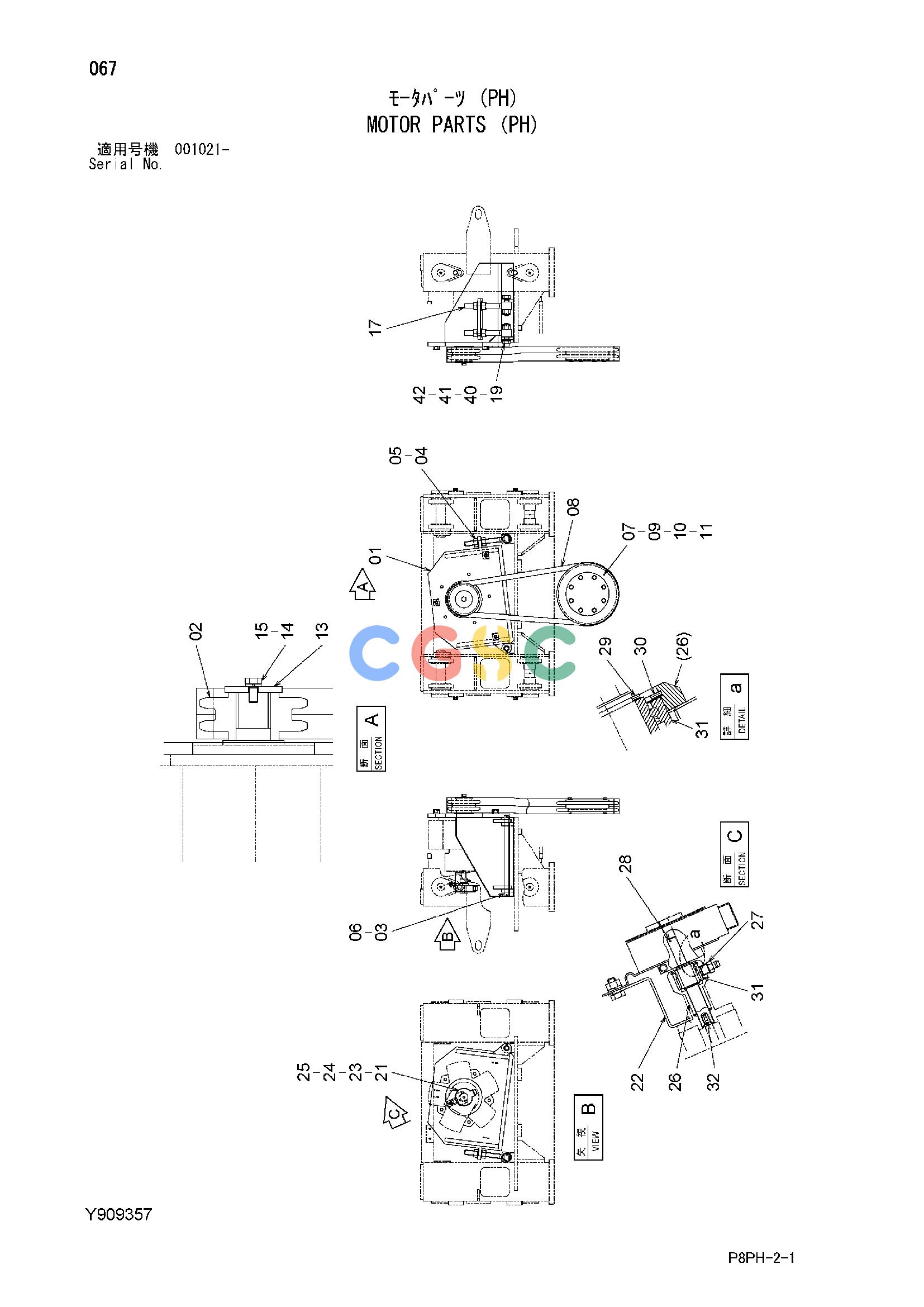

日立零件查询（AR2000）MOTOR PARTS (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
640 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y801623 | [1] | BRACKET | |
| 02. | Y411888 | [1] | SPROCKET;CHAIN | |
| 03. | Y407784 | [1] | PIN | |
| 04. | J950024 | [4] | NUT | |
| 05. | A590124 | [4] | WASHER;PLANE | |
| 06. | A766050 | [2] | PIN;SPLIT | |
| 07. | Y409310 | [1] | CHAIN;SPROCKET | |
| 08. | Y409309 | [1] | CHAIN | |
| 08A. | Y415793 | [1] | CHAIN (OFFSET) | |
| 09. | J271075 | [8] | BOLT;SEMS | |
| 09A. | J901075 | [1] | BOLT | |
| 09B. | J222010 | [1] | WASHER | |
| 10. | J950010 | [8] | NUT | |
| 11. | A590110 | [8] | WASHER;PLANE | |
| 13. | Y407793 | [1] | DISK | |
| 14. | J901430 | [1] | BOLT | |
| 15. | A590914 | [1] | WASHER;SPRING | |
| 17. | Y970928 | [2] | PIN | |
| 19. | A590924 | [2] | WASHER;SPRING | |
| 21. | Y411790 | [1] | ENCODER | |
| 22. | Y410511 | [1] | BRACKET | |
| 23. | J900816 | [1] | BOLT | |
| 24. | A590908 | [1] | WASHER;SPRING | |
| 25. | M500807 | [1] | NUT | |
| 26. | Y410509 | [1] | HOUSING | |
| 27. | J75481 | [1] | FITTING;GREASE | |
| 28. | Y410510 | [1] | SHAFT | |
| 29. | Y410513 | [1] | RING;RETAINING | |
| 30. | 443964 | [1] | RING;RETAINING | |
| 31. | Y410512 | [1] | BRG. | |
| 32. | 4097181 | [2] | PIN;SPRING | |
| 40. | Y415918 | [2] | BOLT | |
| 41. | A764045 | [2] | PIN;SPLIT | |
| 42. | Y416376 | [2] | NUT;CASTLE | |
