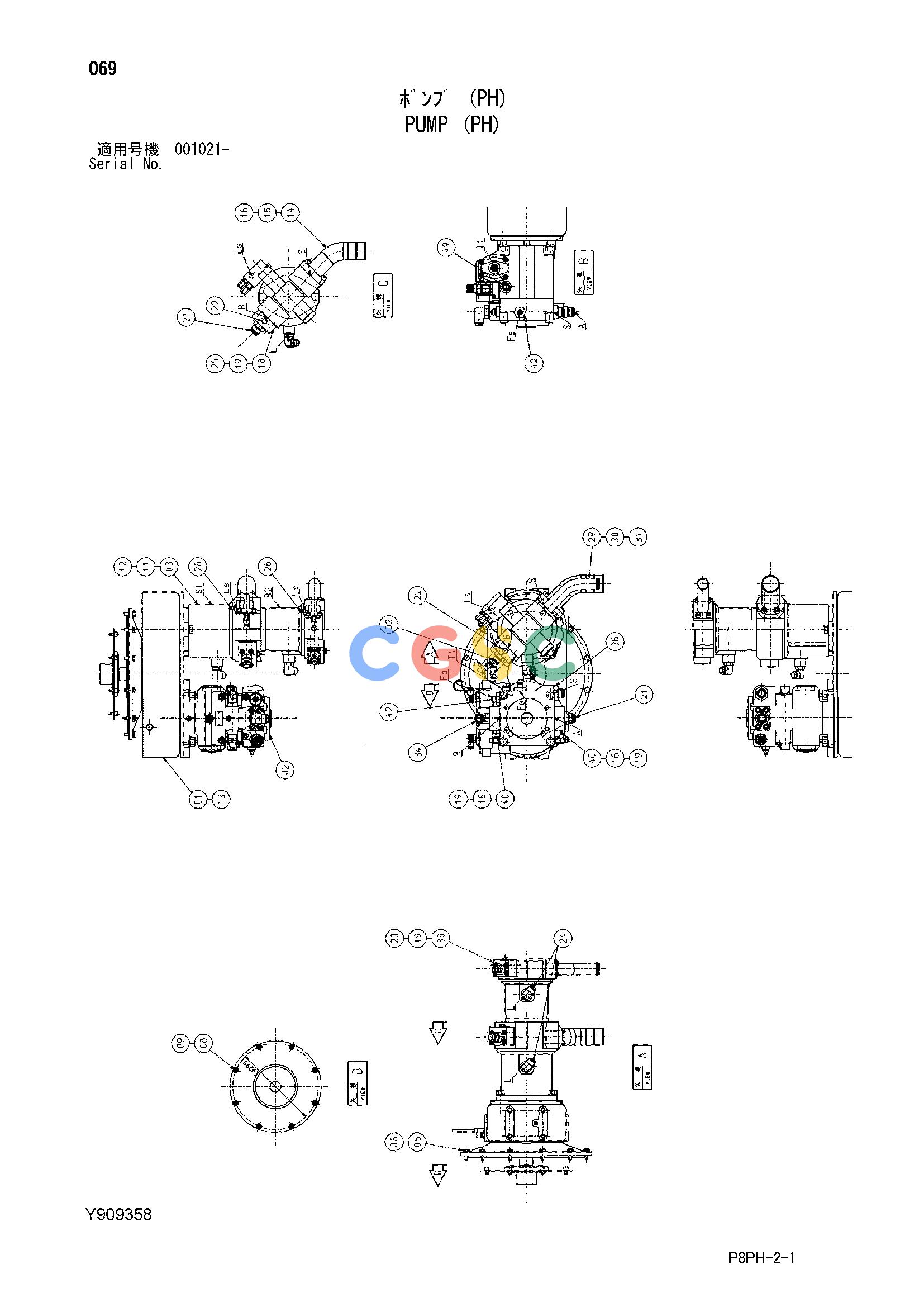

日立零件查询（AR2000）PUMP (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411259 | [1] | PUMP DRIVE;DOUBLE | |
| 02. | Y411160 | [1] | PUMP;PISTON | |
| 03. | Y411159 | [1] | PUMP;PISTON | |
| 05. | J901030 | [12] | BOLT | |
| 06. | A590910 | [12] | WASHER;SPRING | |
| 08. | Y411782 | [8] | BOLT;SOCKET | |
| 09. | J219083 | [8] | WASHER;SPRING | |
| 11. | Y410765 | [2] | BOLT | |
| 12. | A590916 | [2] | WASHER;SPRING | |
| 13. | A590920 | [4] | WASHER;SPRING | |
| 14. | Y802039 | [1] | PIPE;SUCTION | |
| 15. | A811060 | [1] | O-RING | |
| 16. | J781235 | [12] | BOLT;SOCKET | |
| 18. | Y301348 | [1] | FLANGE | |
| 19. | A811035 | [4] | O-RING | |
| 20. | J781035 | [8] | BOLT;SOCKET | |
| 21. | Y411688 | [2] | ADAPTER;S | |
| 22. | 4174543 | [2] | PLUG | |
| 22A. | 4510185 | [1] | O-RING | |
| 24. | 4190246 | [2] | ELBOW;S | |
| 24A. | 4506418 | [1] | O-RING | |
| 26. | 4241381 | [2] | ADAPTER;S | |
| 26A. | 4510185 | [1] | O-RING | |
| 29. | Y802040 | [1] | PIPE;SUCTION | |
| 30. | A811050 | [1] | O-RING | |
| 31. | J781225 | [4] | BOLT;SOCKET | |
| 32. | 4367380 | [1] | ADAPTER;S | |
| 32A. | U12547U | [1] | O-RING | |
| 33. | Y301343 | [1] | FLANGE | |
| 34. | Y411685 | [1] | ELBOW;S | |
| 36. | 4314094 | [1] | ADAPTER;S | |
| 36A. | 970860 | [1] | O-RING | |
| 40. | Y301342 | [2] | FLANGE | |
| 42. | 4317612 | [2] | ADAPTER;S | |
| 42A. | 4506424 | [1] | O-RING | |
| 49. | A852166 | [1] | ADAPTER;S | |
| 49A. | 4506424 | [1] | O-RING | |
