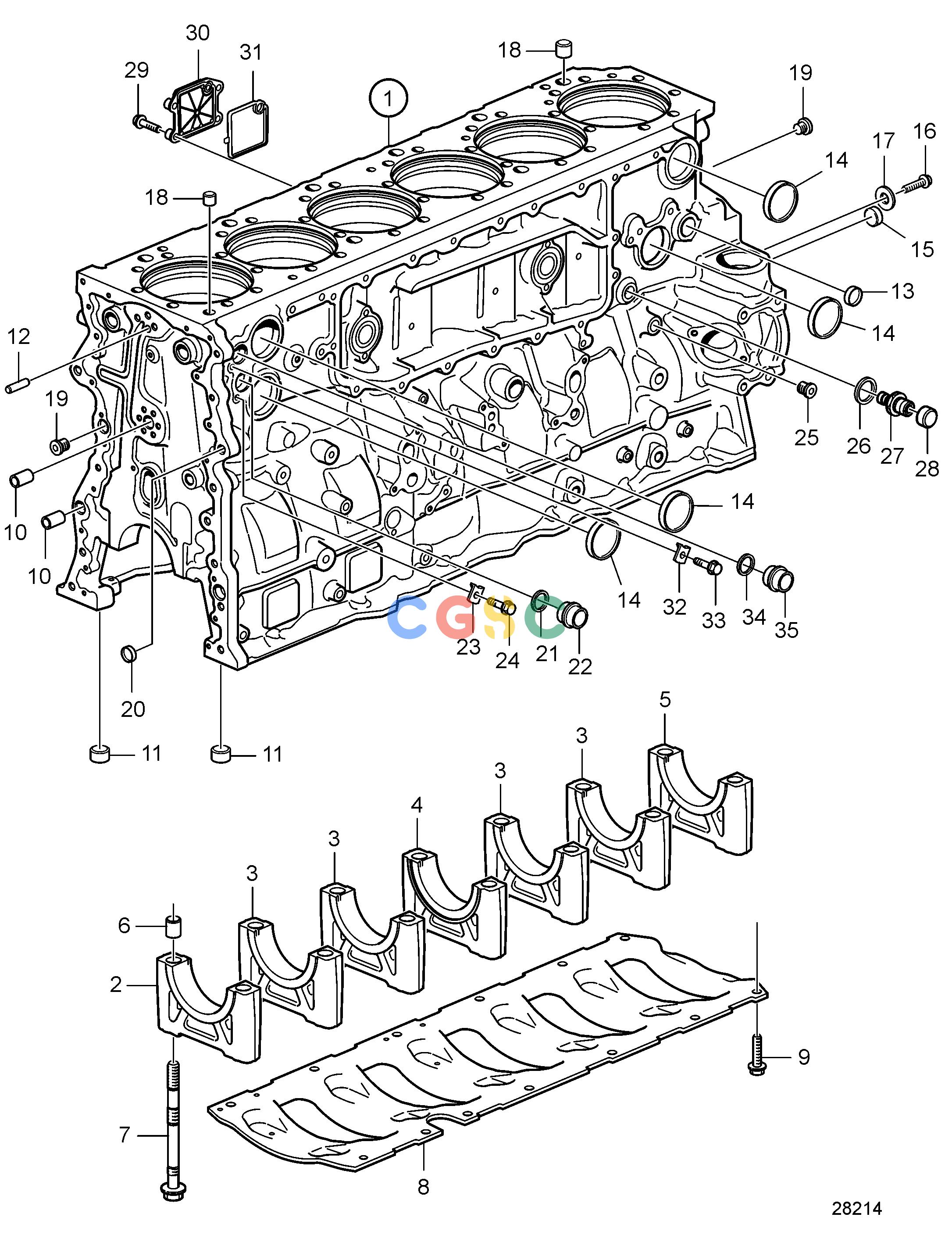

沃尔沃零件查询D16C-D MHEngineCylinder BlockEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
220 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22056791
|
[1] |
Cylinder block
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
21344781
|
[14] |
Flange screw
|
|
| 8. |
20722628
|
[1] |
Frame
|
|
| 9. |
975110
|
[13] |
Flange screw
|
|
| 10. |
8131145
|
[2] |
Guide sleeve
|
|
| 11. |
417588
|
[2] |
Guide sleeve
|
|
| 12. |
950588
|
[1] |
Pin
|
|
| 13. |
24426721
|
[2] |
Expansion plug
|
|
| 14. |
8131937
|
[4] |
Expansion plug
|
|
| 15. |
20562189
|
[2] |
Plug
|
|
| 16. |
980760
|
[1] |
Flange screw
|
|
| 17. |
976944
|
[1] |
Washer
|
|
| 18. |
20485996
|
[2] |
Pin
|
|
| 19. |
20529445
|
[2] |
Plug
|
|
| 20. |
20562189
|
[1] |
Plug
|
|
| 21. |
1547252
|
[2] |
Sealing ring
|
|
| 22. |
20845995
|
[2] |
Plug
|
|
| 23. |
20844430
|
[2] |
Lock brace
|
|
| 24. |
984733
|
[2] |
Flange screw
|
|
| 25. |
984793
|
[1] |
Plug
|
|
| 26. |
979099
|
[1] |
Gasket
|
|
| 27. |
1676622
|
[1] |
Nipple
|
|
| 28. |
476279
|
[1] |
Protecting cap
|
|
| 29. |
984735
|
[4] |
Flange screw
|
|
| 30. |
20533497
|
[1] |
Cap
|
|
| 31. |
20532891
|
[1] |
Gasket
|
|
| 32. |
1546532
|
[1] |
Lock brace
|
|
| 33. |
984735
|
[1] |
Flange screw
|
|
| 34. |
471708
|
[1] |
Rubber moulding
|
|
| 35. |
20381177
|
[1] |
Plug
|
|
