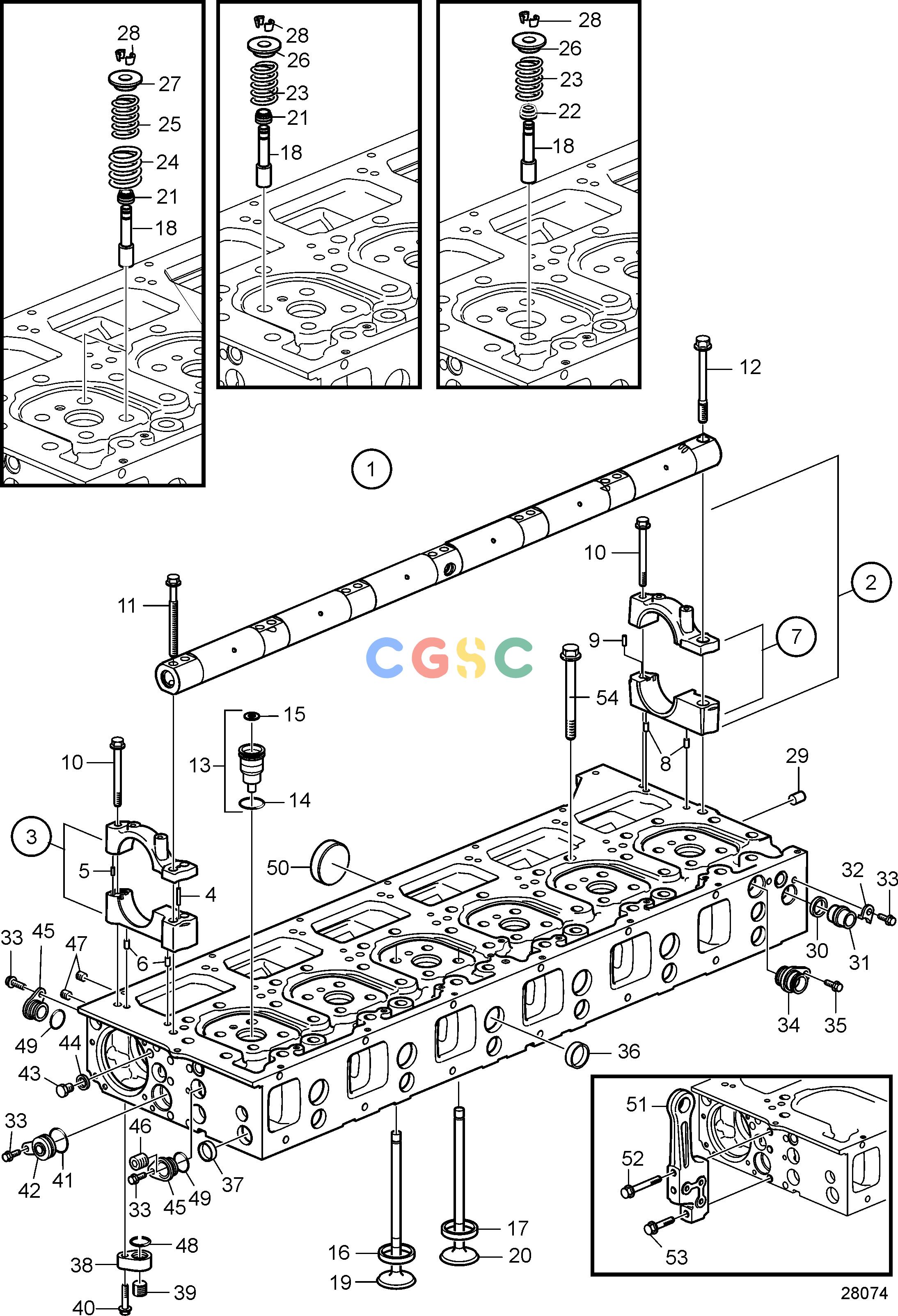

沃尔沃零件查询D16C-D MHEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
478 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801605
|
[1] |
Cylinder head, exch
|
|
| 2. |
3184068
|
[1] |
Bearing housing
|
When replacing one or more bearing houses the first time, all of the bearing houses must be replaced
|
| 3. |
21235155
|
[6] |
Bearing housing
|
When replacing one or more bearing houses the first time, all of the bearing houses must be replaced
|
| 4. |
950550
|
[6] |
Pin
|
When replacing one or more bearing houses the first time, all of the bearing houses must be replaced
|
| 5. |
950542
|
[6] |
Pin
|
When replacing one or more bearing houses the first time, all of the bearing houses must be replaced
|
| 6. |
950562
|
[12] |
Pin
|
|
| 7. |
21235155
|
[1] |
Bearing housing
|
|
| 8. |
950562
|
[2] |
Pin
|
|
| 9. |
950542
|
[1] |
Pin
|
|
| 10. |
975105
|
[7] |
Flange screw
|
|
| 11. |
21344753
|
[12] |
Flange screw
|
|
| 12. |
20412482
|
[1] |
Flange screw
|
|
| 13. |
21351717
|
[6] |
Injector sleeve
|
|
| 14. |
20536487
|
[1] |
O-ring
|
|
| 15. |
21261987
|
[1] |
Washer
|
|
| 16. |
20709467
|
[12] |
Valve seat
|
Inlet
|
| 17. |
20564028
|
[12] |
Valve seat
|
Exhaust SN-101674098
|
| 17. |
22059584
|
[12] |
Valve seat
|
Exhaust SN101674099-
|
| 18. |
21067953
|
[24] |
Valve guide
|
|
| 19. |
20739057
|
[12] |
Inlet valve
|
Inlet
|
| 20. |
20513285
|
[12] |
Exhaust valve
|
Exhaust
|
| 21. |
20924435
|
[18] |
Valve stem seal
|
Brown
|
| 22. |
22612096
|
[6] |
Valve stem seal
|
Blue
|
| 23. |
22527820
|
[12] |
Valve spring
|
Inlet
|
| 24. |
21448332
|
[12] |
Valve spring
|
Exhaust .Replaced by 22807212
|
| 24. |
22807212
|
[12] |
Valve spring
|
|
| 25. |
21324296
|
[12] |
Valve spring
|
Exhaust
|
| 26. |
20551394
|
[12] |
Valve spring washer
|
Inlet
|
| 27. |
8131835
|
[12] |
Valve spring washer
|
Exhaust
|
| 28. |
8170995
|
[48] |
Valve collet
|
|
| 29. |
968062
|
[1] |
Plug
|
|
| 30. |
1547252
|
[2] |
Sealing ring
|
|
| 31. |
20845995
|
[1] |
Plug
|
|
| 32. |
1546531
|
[1] |
Lock brace
|
|
| 33. |
984732
|
[4] |
Flange screw
|
|
| 34. |
20429993
|
[1] |
Pass-through
|
|
| 35. |
984733
|
[1] |
Flange screw
|
|
| 36. |
24426722
|
[6] |
Expansion plug
|
|
| 37. |
24426721
|
[14] |
Expansion plug
|
|
| 38. |
3819529
|
[1] |
Adapter
|
|
| 39. |
968146
|
[1] |
Plug
|
|
| 40. |
984736
|
[1] |
Flange screw
|
|
| 41. |
1547253
|
[1] |
Sealing ring
|
For use with 21160741 adapter
|
| 42. |
21160741
|
[1] |
Adapter
|
|
| 43. |
965768
|
[1] |
Plug
|
|
| 44. |
947281
|
[1] |
Gasket
|
|
| 45. |
3887007
|
[2] |
Adapter
|
|
| 46. |
968063
|
[1] |
Plug
|
|
| 47. |
968061
|
[2] |
Plug
|
|
| 48. |
949657
|
[1] |
O-ring
|
|
| 49. |
1547252
|
[2] |
Sealing ring
|
|
| 50. |
24426723
|
[3] |
Expansion plug
|
|
| 51. |
|
|
|
|
| 52. |
|
|
|
|
| 53. |
975112
|
[1] |
Flange screw
|
|
| 54. |
21345129
|
[38] |
Flange screw
|
|
