沃尔沃零件查询D16C-D MHEngineFlexible Engine Suspension, FrontEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
227 次

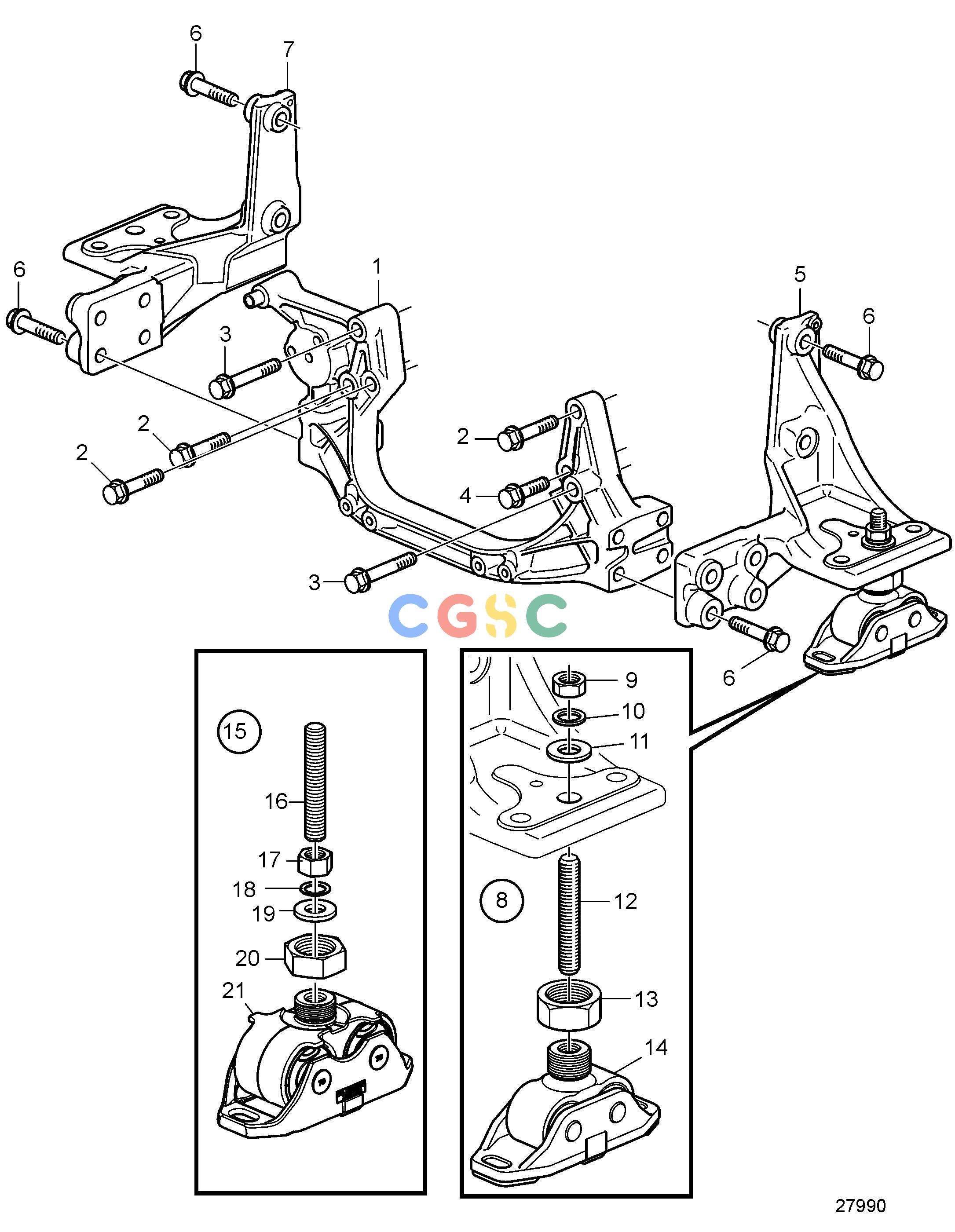

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3828707
|
[1] |
Engine anchorage
|
|
| 2. |
974008
|
[3] |
Flange screw
|
|
| 3. |
975127
|
[2] |
Flange screw
|
|
| 4. |
975126
|
[1] |
Flange screw
|
|
| 5. |
3843218
|
[1] |
Engine bracket
|
|
| 6. |
974008
|
[12] |
Flange screw
|
|
| 7. |
3843220
|
[1] |
Engine bracket
|
|
| 8. |
3843493
|
[1] |
Rubber cushion kit
|
|
| 9. |
990973
|
[2] |
Hexagon nut
|
|
| 10. |
990697
|
[2] |
Lock washer
|
|
| 11. |
991994
|
[2] |
Washer
|
|
| 12. |
3817323
|
[2] |
Adjusting screw
|
|
| 13. |
3840980
|
[2] |
Nut
|
|
| 14. |
|
|
|
|
| 15. |
22494990
|
[1] |
Rubber cushion
|
70 Shore hardness
|
| 16. |
3817323
|
[2] |
Adjusting screw
|
|
| 17. |
990973
|
[2] |
Hexagon nut
|
|
| 18. |
990697
|
[2] |
Lock washer
|
|
| 19. |
991994
|
[2] |
Washer
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
