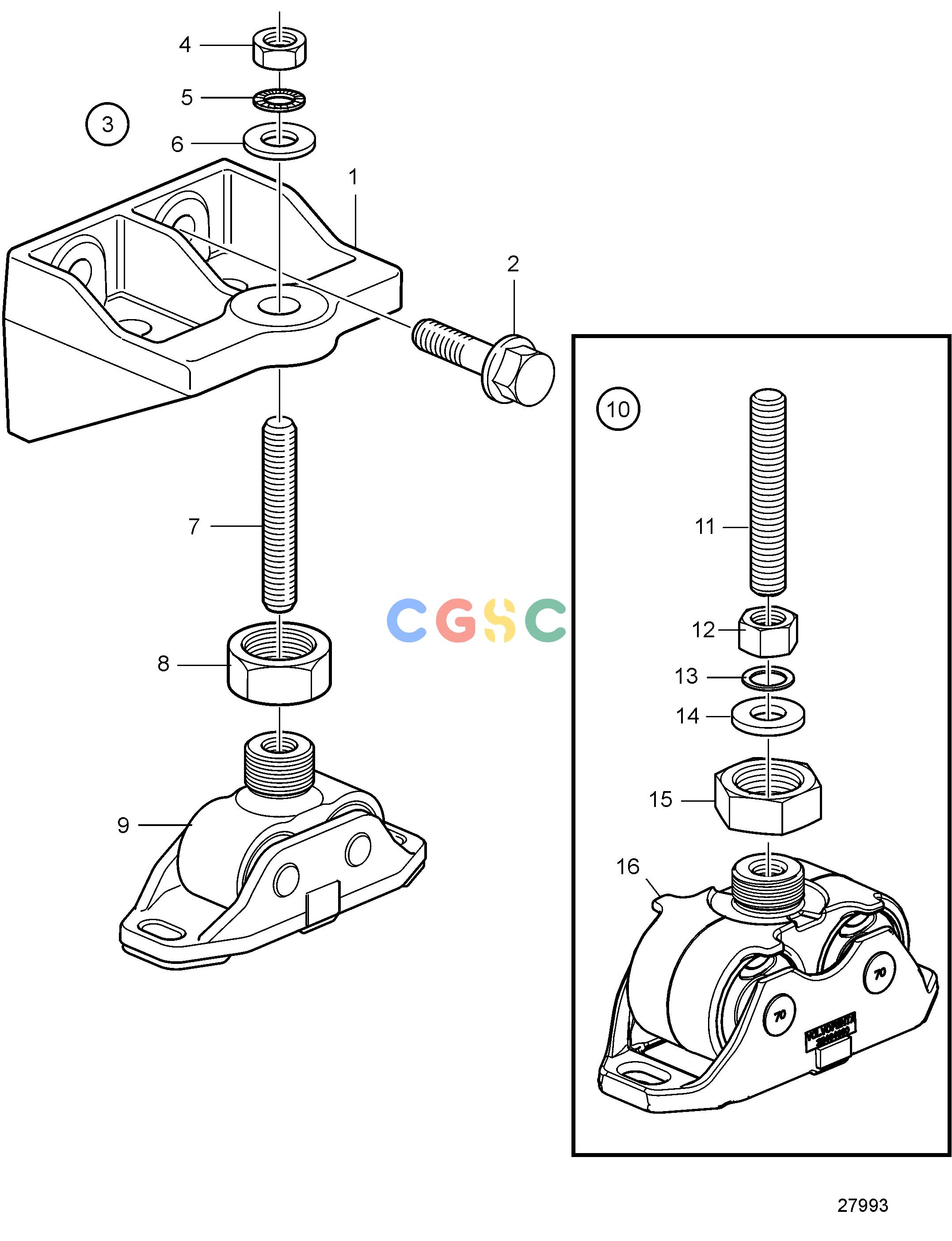

沃尔沃零件查询D16C-D MHEngineFlexible Engine Suspension, RearEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
649 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808006
|
[2] |
Engine bracket
|
|
| 2. |
984834
|
[8] |
Flange screw
|
|
| 3. |
3843493
|
[4] |
Rubber cushion kit
|
|
| 4. |
990973
|
[4] |
Hexagon nut
|
|
| 5. |
990697
|
[4] |
Lock washer
|
|
| 6. |
991994
|
[4] |
Washer
|
|
| 7. |
3817323
|
[4] |
Adjusting screw
|
|
| 8. |
3840980
|
[4] |
Nut
|
|
| 9. |
|
|
|
|
| 10. |
22494990
|
[1] |
Rubber cushion
|
70 Shore hardness
|
| 11. |
3817323
|
[2] |
Adjusting screw
|
|
| 12. |
990973
|
[2] |
Hexagon nut
|
|
| 13. |
990697
|
[2] |
Lock washer
|
|
| 14. |
991994
|
[2] |
Washer
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
