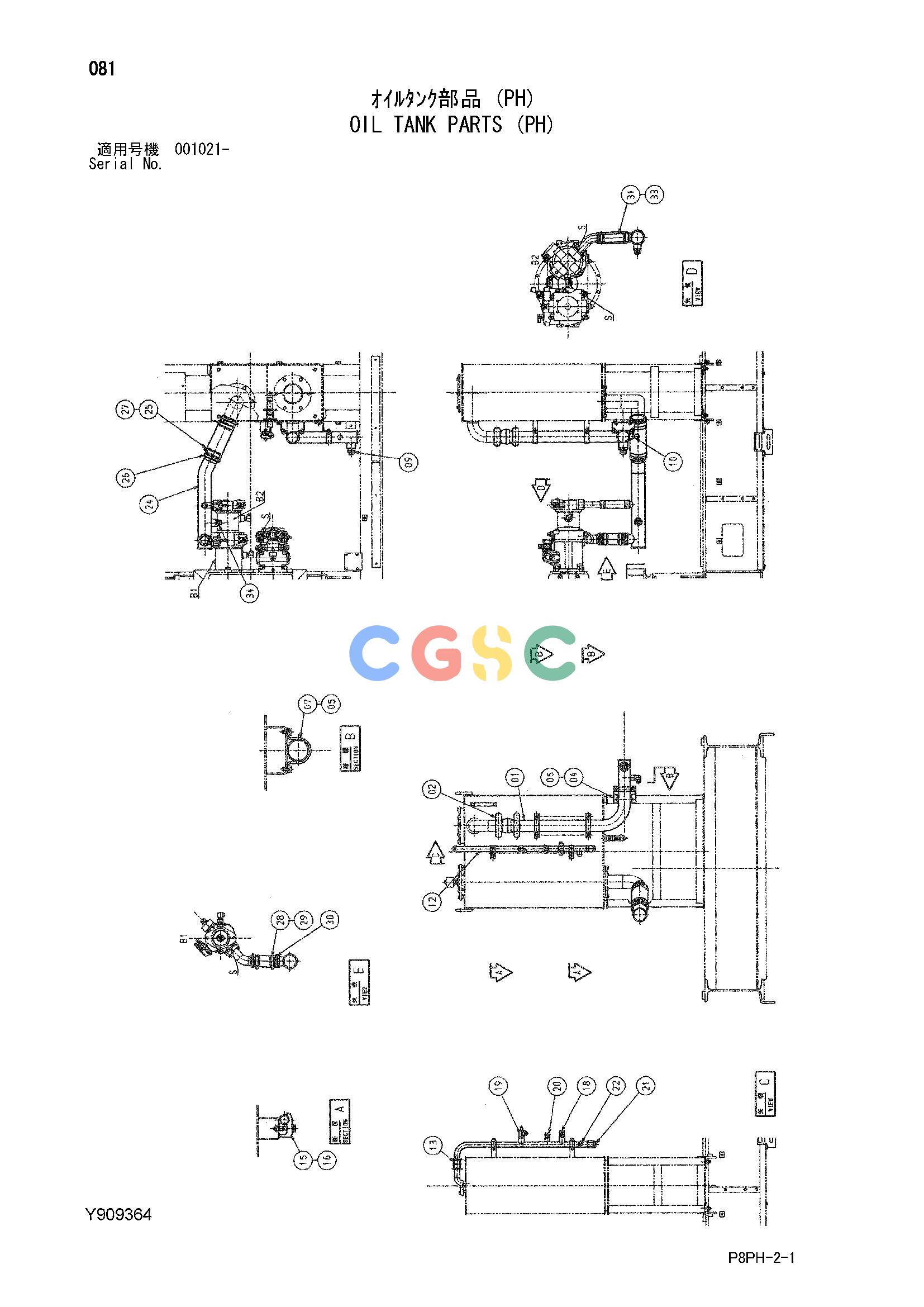

日立零件查询（AR2000）OIL TANK PARTS (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
331 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y802037 | [1] | PIPE;RETURN | |
| 02. | 4071215 | [1] | COUPLING | |
| 04. | Y971326 | [1] | BRACKET | |
| 05. | J271025 | [8] | BOLT;SEMS | |
| 05A. | J901025 | [1] | BOLT | |
| 05B. | J222010 | [1] | WASHER | |
| 07. | 4000909 | [3] | CLAMP;PIPE | |
| 09. | 4250083 | [1] | ADAPTER;S | |
| 09A. | 970860 | [1] | O-RING | |
| 10. | 4190246 | [1] | ELBOW;S | |
| 10A. | 4506418 | [1] | O-RING | |
| 12. | Y802036 | [1] | PIPE;DRAIN | |
| 13. | 4071213 | [1] | COUPLING | |
| 13A. | 4196258 | [2] | SEAL;RING | |
| 15. | 4053598 | [2] | CLAMP;PIPE | |
| 16. | J271265 | [2] | BOLT;SEMS | |
| 16A. | J901265 | [1] | BOLT | |
| 16B. | J222012 | [1] | WASHER | |
| 18. | A852566 | [1] | TEE;S | |
| 18A. | 4506424 | [1] | O-RING | |
| 19. | 4466996 | [1] | TEE;S | |
| 19A. | 4506424 | [1] | O-RING | |
| 20. | A852333 | [1] | ELBOW;S | |
| 20A. | 4509180 | [1] | O-RING | |
| 21. | 4279302 | [1] | ADAPTER;S | |
| 21A. | 4506424 | [1] | O-RING | |
| 22. | A885003 | [1] | PLUG | |
| 22A. | 4509180 | [1] | O-RING | |
| 24. | Y802042 | [1] | PIPE;SUCTION | |
| 25. | 4120316 | [1] | HOSE;RUBBER | |
| 26. | 4507397 | [2] | CLAMP;HOSE | |
| 27. | 4263766 | [2] | CLAMP;HOSE | |
| 28. | 4094001 | [1] | HOSE;RUBBER | |
| 29. | 4263764 | [2] | CLAMP;HOSE | |
| 30. | 4504491 | [2] | CLAMP;HOSE | |
| 31. | 4080206 | [1] | HOSE;RUBBER | |
| 33. | 4282474 | [2] | CLAMP;HOSE | |
| 34. | 4214444 | [1] | ADAPTER;S | |
| 34A. | 4506429 | [1] | O-RING | |
