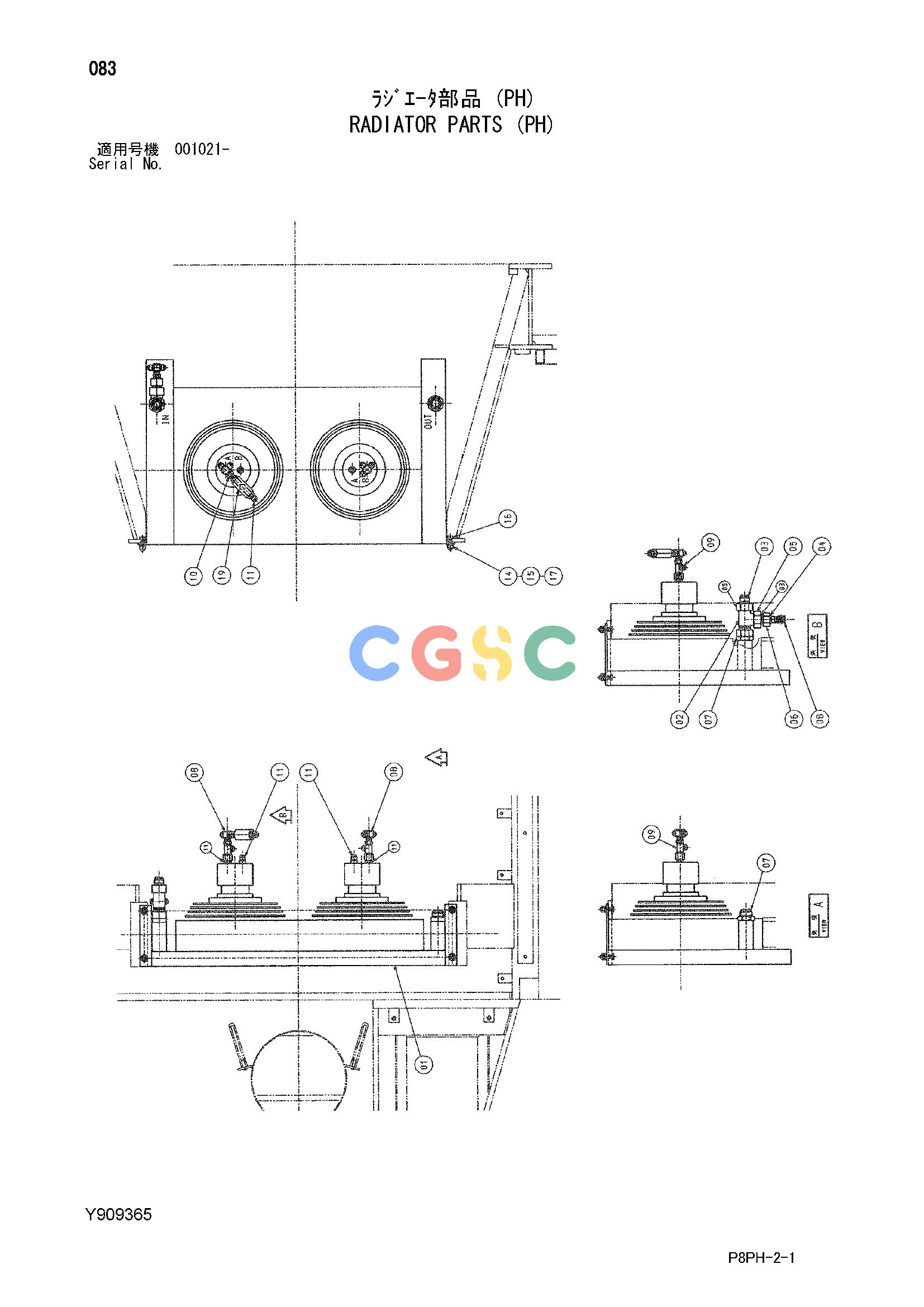

日立零件查询（AR2000）RADIATOR PARTS (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
949 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411197 | [1] | COOLER;OIL | |
| 02. | Y411694 | [1] | TEE;S | |
| 03. | Y411680 | [2] | REDUCER;S | |
| 04. | Y411678 | [1] | REDUCER;S | |
| 05. | Y411683 | [2] | NUT | |
| 06. | Y411682 | [1] | NUT | |
| 07. | 4182733 | [2] | ADAPTER;S | |
| 08. | Y412837 | [3] | TEE;S | |
| 09. | 4426339 | [2] | UNION;M | |
| 10. | Y411672 | [1] | ADAPTER;S | |
| 11. | 4236730 | [5] | ADAPTER;S | |
| 11A. | U10778U | [1] | O-RING | |
| 14. | J950012 | [4] | NUT | |
| 15. | A590912 | [4] | WASHER;SPRING | |
| 16. | J901240 | [4] | BOLT | |
| 17. | A590112 | [4] | WASHER;PLANE | |
| 19. | Y412012 | [1] | VALVE;CHECK | |
