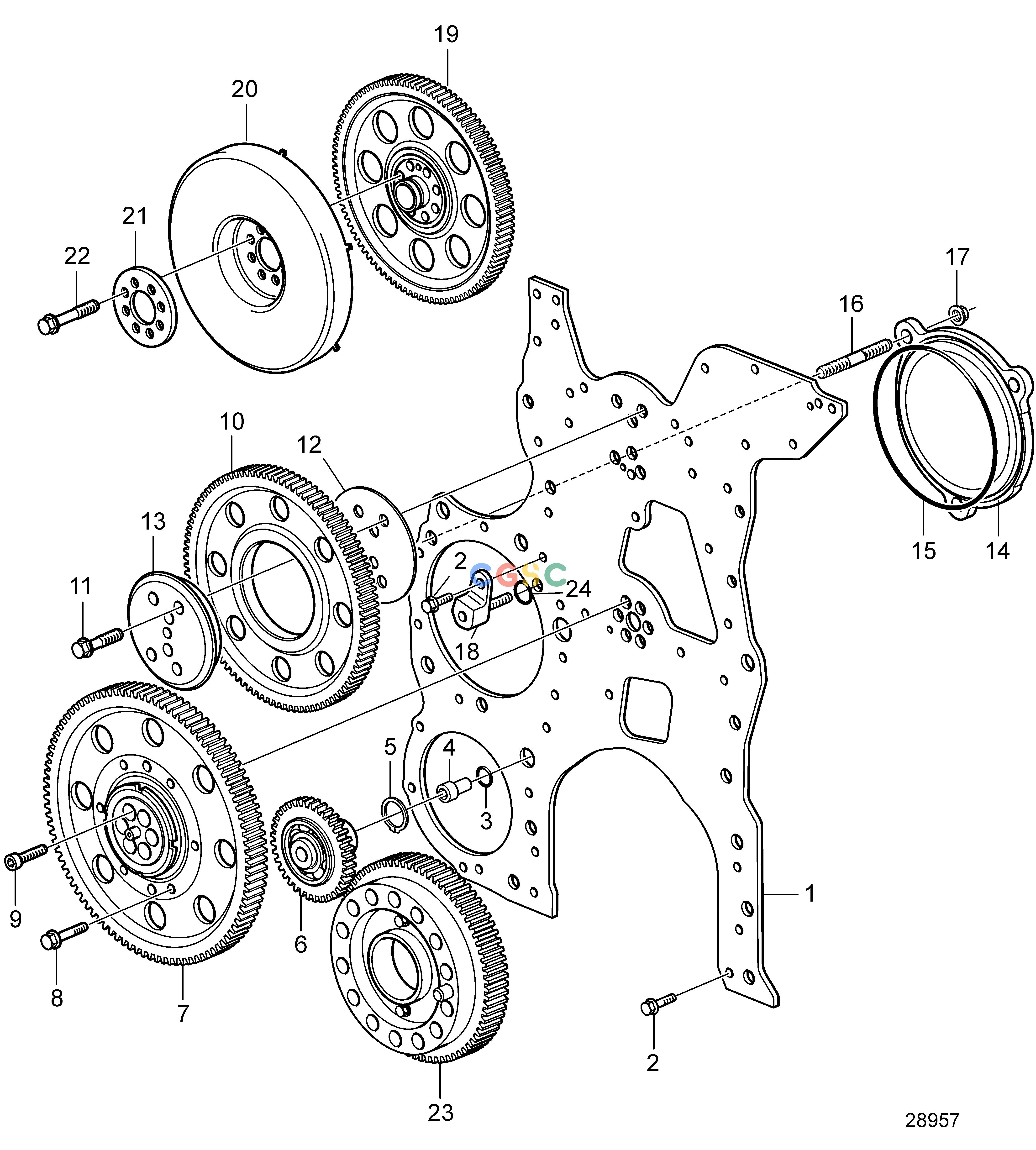

沃尔沃零件查询D16C-D MHEngineTiming GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
550 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22438707
|
[1] |
Timing gear plate
|
|
| 2. |
994447
|
[26] |
Flange screw
|
|
| 3. |
949656
|
[1] |
O-ring
|
|
| 4. |
|
|
|
|
| 5. |
914465
|
[1] |
Snap ring
|
|
| 6. |
22081685
|
[1] |
Idler gear
|
|
| 7. |
21509046
|
[1] |
Idler gear
|
|
| 8. |
8192804
|
[8] |
Flange screw
|
|
| 9. |
20483919
|
[6] |
Hex. socket screw
|
|
| 10. |
20743007
|
[1] |
Idler gear
|
|
| 11. |
21015266
|
[6] |
Flange screw
|
|
| 12. |
8131850
|
[1] |
Thrust washer
|
|
| 13. |
21012985
|
[1] |
Hub, crankshaft
|
|
| 14. |
849135
|
[1] |
Cover
|
|
| 15. |
992065
|
[1] |
O-ring
|
|
| 16. |
953102
|
[2] |
Stud
|
|
| 17. |
990946
|
[3] |
Flange nut
|
|
| 18. |
22066002
|
[1] |
Bracket
|
|
| 19. |
21456239
|
[1] |
Gear, gear camshaft
|
|
| 20. |
47706540_006
|
|
Vibration damper
|
|
| 21. |
21691892
|
[1] |
Spacer
|
|
| 22. |
8192804
|
[8] |
Flange screw
|
|
| 23. |
21430914
|
[1] |
Gear
|
|
| 24. |
943177
|
[1] |
O-ring
|
|
