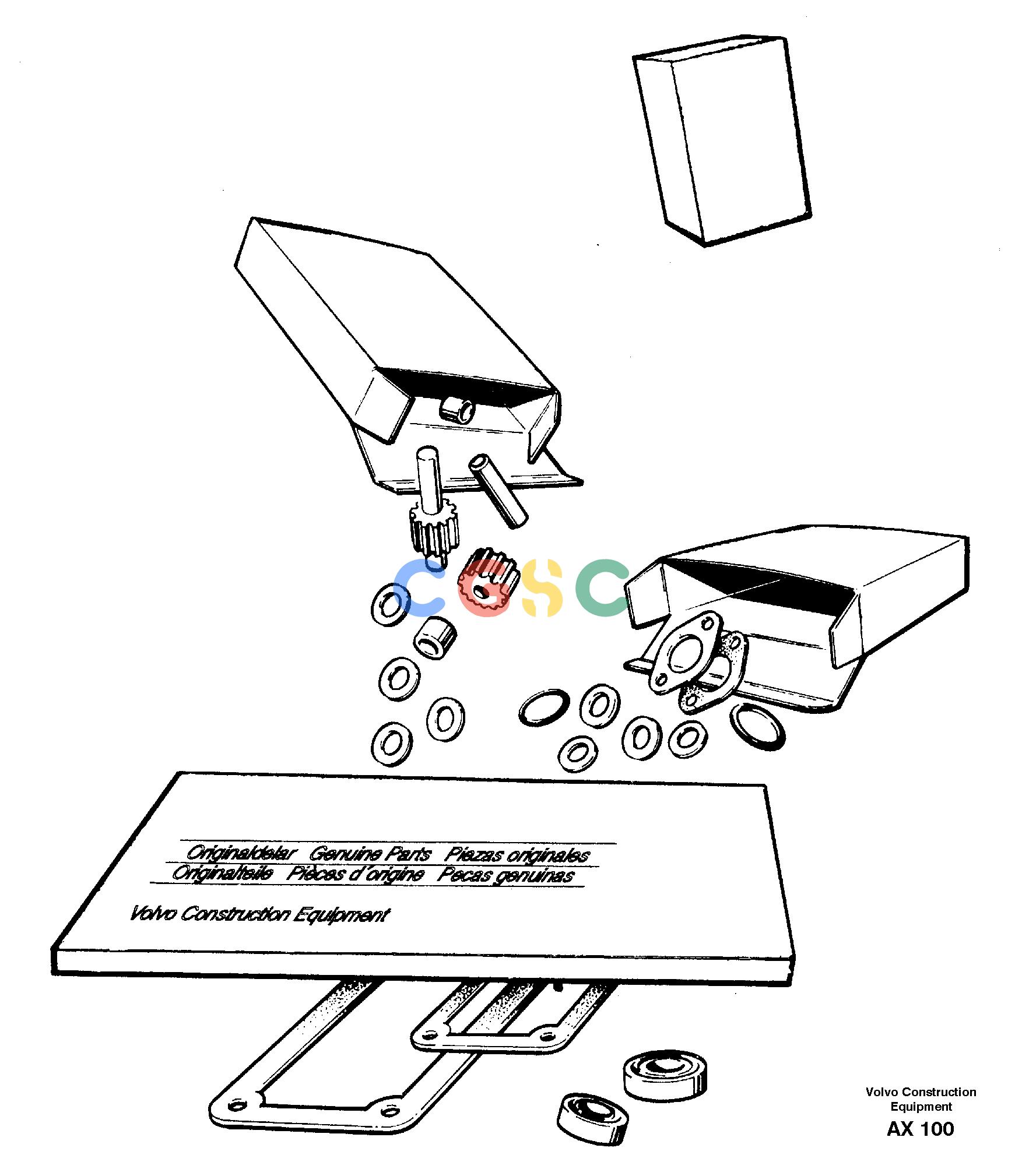

沃尔沃零件查询L330C Repair kits for engineSER NO 60188- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
939 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE271085
|
[6] |
Gasket kit
|
|
| |
VOE1543172
|
[6] |
Sealing ring
|
|
| |
|
|
None
|
|
| |
VOE11999875
|
[1] |
Overhaul kit
|
|
| |
VOE1556148
|
[12] |
Valve seat
|
|
| |
VOE1556149
|
[12] |
Valve seat
|
|
| |
VOE1556813
|
[12] |
Inlet valve
|
|
| |
VOE1556896
|
[12] |
Exhaust valve
|
|
| |
VOE20355012
|
[12] |
Valve guide
|
|
| |
VOE1556604
|
[12] |
Valve guide
|
|
| |
VOE276836
|
[6] |
Repair kit
|
|
| |
|
|
For cylinder head
|
|
| |
|
|
None
|
|
| |
VOE11999876
|
[1] |
Overhaul kit
|
Stage 2/Steg 2/Etapa 2/
Etape 2/Etappe 2
|
| |
VOE270796
|
[6] |
Piston Bearing
|
|
| |
VOE11703762
|
[6] |
Cylinder liner kit
|
|
| |
VOE1543035
|
[12] |
Screw
|
|
| |
VOE3827274
|
[1] |
Gasket
|
|
| |
|
|
None
|
|
| |
VOE11999877
|
[1] |
Overhaul kit
|
Stage 3/Steg 3/Etapa 3/
Etape 3/Etappe 3
|
| |
VOE270792
|
[7] |
Main bearing kit
|
|
| |
VOE270929
|
[1] |
Thrust washer kit
|
|
| |
|
|
None
|
|
| |
VOE1543078
|
[48] |
Valve sleeve
|
|
| |
VOE11999875
|
[1] |
Overhaul kit
|
|
| |
VOE11999879
|
[1] |
Gasket kit
|
|
| |
VOE276836
|
[6] |
Repair kit
|
|
| |
|
|
Sleeve,injector
|
|
| |
|
|
None
|
|
| |
VOE11703762
|
[6] |
Cylinder liner kit
|
|
| |
VOE270935
|
[6] |
Sealing kit
|
|
| |
VOE276840
|
[6] |
Piston ring kit
|
|
| |
|
|
None
|
|
| |
|
[6] |
Big end bearing kit
|
|
| |
|
|
None
|
|
| |
|
[7] |
Mn bearing kit
|
|
| |
|
|
None
|
|
| |
|
[1] |
Thrust washer kit
|
|
| |
|
|
None
|
|
| |
VOE276150
|
[1] |
Repair kit
|
ENG - 25085
|
| |
VOE276871
|
[1] |
Repair kit
|
ENG 25086 -
|
| |
|
|
Oil pump
|
|
| |
|
|
None
|
|
| |
VOE276636
|
[1] |
Repair kit
|
|
| |
|
|
Water pump
|
|
| |
|
|
None
|
|
| |
VOE11990043
|
[1] |
Repair kit
|
|
| |
|
|
Extra water pump
|
|
| |
|
|
None
|
|
| |
VOE11999879
|
[1] |
Gasket kit
|
|
| |
|
|
Cylinder block
|
|
| |
VOE420641
|
[2] |
Gasket
|
|
| |
VOE421158
|
[1] |
Sealing ring
|
|
| |
VOE22194880
|
[1] |
Sealing ring
|
|
| |
VOE468094
|
[1] |
Sealing ring
|
|
| |
VOE469327
|
[1] |
Gasket
|
|
| |
VOE468463
|
[4] |
Gasket
|
|
| |
VOE468947
|
[1] |
Sealing ring
|
|
| |
VOE1556907
|
[4] |
Gasket
|
|
| |
VOE469482
|
[1] |
Sealing ring
|
|
| |
VOE469606
|
[7] |
Sealing ring
|
|
| |
VOE3979052
|
[2] |
Gasket
|
|
| |
VOE469662
|
[1] |
Gasket
|
|
| |
VOE425695
|
[2] |
O-ring
|
|
| |
VOE469846
|
[1] |
Sealing ring
|
|
| |
VOE976344
|
[1] |
O-ring
|
|
| |
VOE925096
|
[1] |
O-ring
|
|
| |
VOE925266
|
[1] |
O-ring
|
|
| |
VOE13947281
|
[4] |
Gasket
|
|
| |
VOE13947282
|
[3] |
Gasket
|
|
| |
VOE947620
|
[19] |
Gasket
|
|
| |
VOE13947621
|
[2] |
Plane gasket
|
|
| |
VOE13947622
|
[3] |
Plane gasket
|
|
| |
VOE13947624
|
[2] |
Plane gasket
|
|
| |
VOE948885
|
[1] |
Plane gasket
|
|
| |
VOE13948888
|
[2] |
O-ring
|
|
| |
VOE949329
|
[1] |
Gasket
|
|
| |
VOE13949332
|
[2] |
O-ring
|
|
| |
VOE949659
|
[1] |
O-ring
|
|
| |
VOE13949722
|
[1] |
O-ring
|
|
| |
VOE955981
|
[6] |
O-ring
|
|
| |
VOE958811
|
[1] |
Sealing ring
|
|
| |
VOE968971
|
[1] |
O-ring
|
|
| |
VOE13969011
|
[21] |
Gasket
|
|
| |
VOE13980236
|
[1] |
O-ring
|
|
| |
VOE1543360
|
[1] |
Gasket
|
|
| |
VOE8192189
|
[16] |
Sealing ring
|
(1543566)
|
| |
VOE1543572
|
[9] |
Sealing ring
|
|
| |
VOE1543576
|
[8] |
Sealing ring
|
|
| |
VOE8192187
|
[11] |
Sealing ring
|
(1543577)
|
| |
VOE1543578
|
[1] |
Sealing ring
|
|
| |
VOE1556905
|
[2] |
Sealing ring
|
|
| |
VOE11702307
|
[13] |
Sealing ring
|
(1543580)
|
| |
VOE1543896
|
[1] |
Sealing ring
|
|
| |
VOE1546221
|
[1] |
Sealing ring
|
|
| |
VOE1556064
|
[24] |
Sealing ring
|
|
| |
VOE1556389
|
[1] |
Sealing ring
|
|
| |
VOE1556397
|
[1] |
Sealing ring
|
|
| |
VOE1556412
|
[1] |
Ring
|
|
| |
VOE1556612
|
[1] |
O-ring
|
|
| |
VOE968725
|
[1] |
O-ring
|
|
| |
VOE1676432
|
[1] |
Sealing ring
|
|
| |
VOE3825051
|
[1] |
Sealing ring
|
|
| |
VOE4804167
|
[2] |
Gasket
|
|
| |
|
|
None
|
|
| |
VOE11999874
|
[1] |
Overhaul kit
|
Stage 1/Steg 1/Etapa 1/
Etape 1/Etappe 1
|
| |
VOE271085
|
[6] |
Gasket kit
|
|
| |
VOE276638
|
[1] |
Gasket kit
|
|
| |
VOE8149182
|
[2] |
Thermostat
|
82 DEG
|
| |
VOE470323
|
[4] |
Sealing ring
|
|
| |
VOE11987587
|
[6] |
Gasket
|
|
| |
VOE20784537
|
[1] |
Gasket
|
|
| |
VOE11000236
|
[2] |
Sealing ring
|
|
| |
VOE1544710
|
[2] |
Sealing ring
|
|
