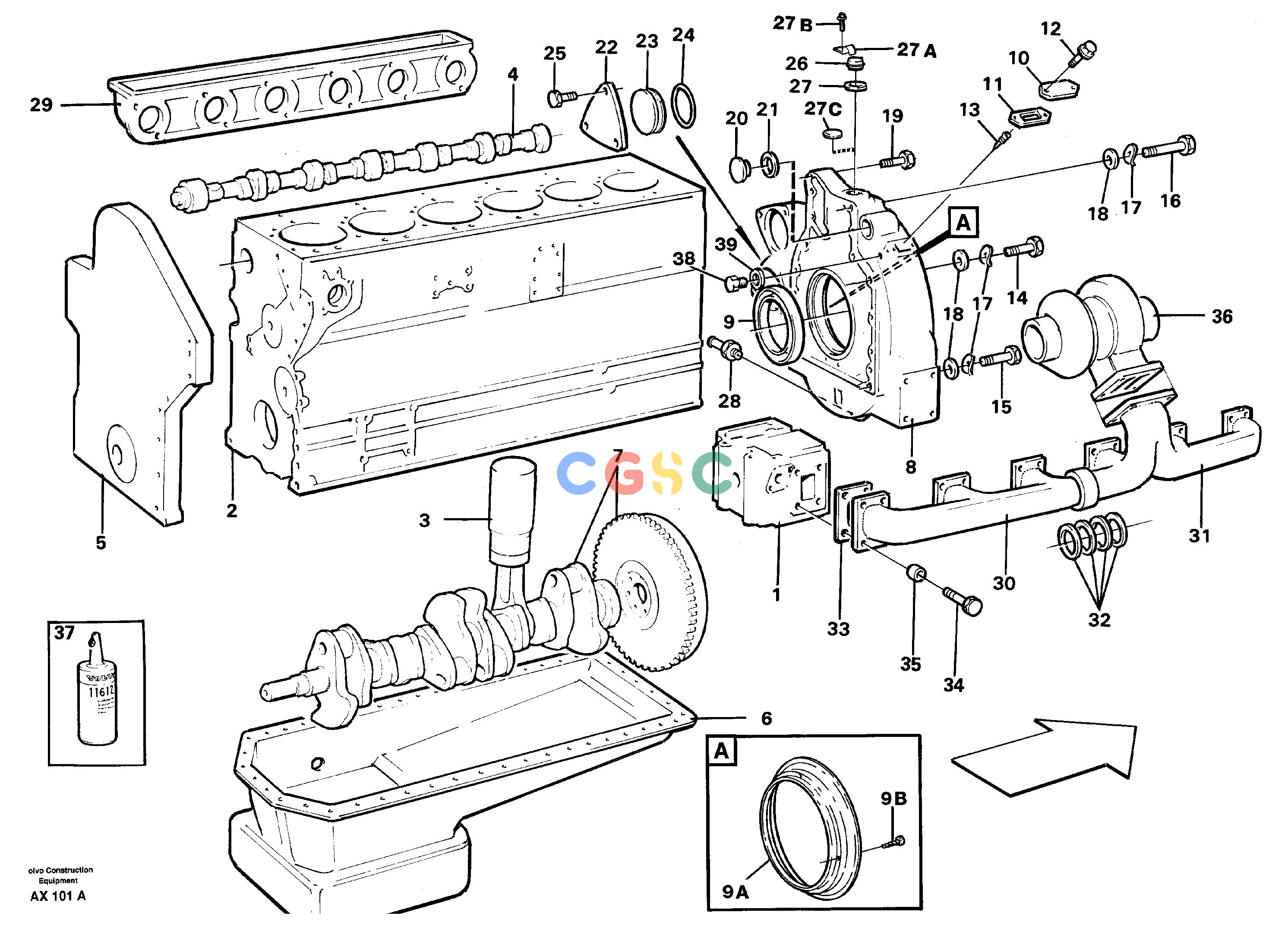

沃尔沃零件查询L330C Engine with fitting partsSER NO 60188- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
758 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE15004535
|
[1] |
Engine
|
TD 164 KAE
|
| 1. |
|
[1] |
Cylinder head
|
|
| 2. |
|
[1] |
Cylinder block
|
|
| 3. |
|
[1] |
Cylinder liner
|
|
| 4. |
|
[1] |
Valve mechanism
|
|
| |
|
[1] |
Camshaft
|
|
| 5. |
|
|
Timing gear casing
|
|
| |
|
[1] |
and gears
|
|
| 6. |
|
[1] |
Oil sump
|
|
| 7. |
|
[1] |
Crankshaft
|
|
| |
|
|
None
|
|
| 8. |
VOE11701055
|
[1] |
Flywheel housing
|
(11032062), ENG - 28293
|
| |
VOE11032160
|
[1] |
Flywheel housing
|
ENG 28294 -
|
| 9. |
VOE1543896
|
[1] |
Sealing ring
|
|
| 9A. |
VOE11030271
|
[1] |
Oil deflector ring
|
ENG 28294 -
|
| 9B. |
VOE13905650
|
[4] |
Drive screw
|
ENG 28294 -
|
| 10. |
VOE4772168
|
[2] |
Cover
|
|
| 11. |
VOE4804167
|
[2] |
Gasket
|
|
| 12. |
VOE13946934
|
[4] |
Screw
|
|
| 13. |
VOE4772141
|
[1] |
Setting indicator
|
|
| 14. |
VOE997967
|
[10] |
Hexagon screw
|
M14x70 MM
|
| 15. |
VOE971005
|
[2] |
Hexagon screw
|
M14x80 MM
|
| 16. |
VOE13971008
|
[2] |
Hexagon screw
|
M14x110 MM
|
| 17. |
VOE941911
|
[14] |
Spring washer
|
|
| 18. |
VOE955899
|
[14] |
Plain washer
|
|
| 19. |
VOE13965181
|
[1] |
Screw
|
M8x70 MM
|
| 20. |
VOE467367
|
[1] |
Plug
|
|
| 21. |
VOE1556907
|
[1] |
Gasket
|
|
| 22. |
VOE849135
|
[1] |
Cover
|
|
| 23. |
VOE11032027
|
[1] |
Cover
|
|
| 24. |
VOE967344
|
[1] |
O-ring
|
|
| 25. |
VOE13959253
|
[3] |
Allen Hd Screw
|
|
| 26. |
VOE11031785
|
[1] |
Plug
|
ENG - 28293
|
| 27. |
VOE421158
|
[1] |
Sealing ring
|
ENG - 28293
|
| 27A. |
VOE11032071
|
[1] |
Clamp
|
ENG - 28293
|
| 27B. |
VOE13944926
|
[1] |
Screw
|
ENG - 28293
|
| 27C. |
VOE955100
|
[1] |
Expansion plug
|
ENG 28294 -
|
| 28. |
|
[1] |
Nipple
|
|
| 29. |
|
[1] |
Inlet manifold
|
|
| 30. |
VOE1543534
|
[1] |
Exhaust pipe
|
|
| 31. |
VOE11032263
|
[1] |
Exhaust pipe
|
|
| 32. |
VOE470323
|
[4] |
Sealing ring
|
|
| 33. |
VOE11987587
|
[6] |
Gasket
|
|
| 34. |
VOE13965189
|
[24] |
Screw
|
|
| 35. |
VOE1546517
|
[24] |
Spacer sleeve
|
|
| 36. |
|
[1] |
Turbocharger
|
|
| 37. |
VOE11713514
|
[REQ] |
Sealant
|
|
| 38. |
VOE180761
|
[1] |
Plug
|
|
| 39. |
VOE13947622
|
[1] |
Plane gasket
|
|
