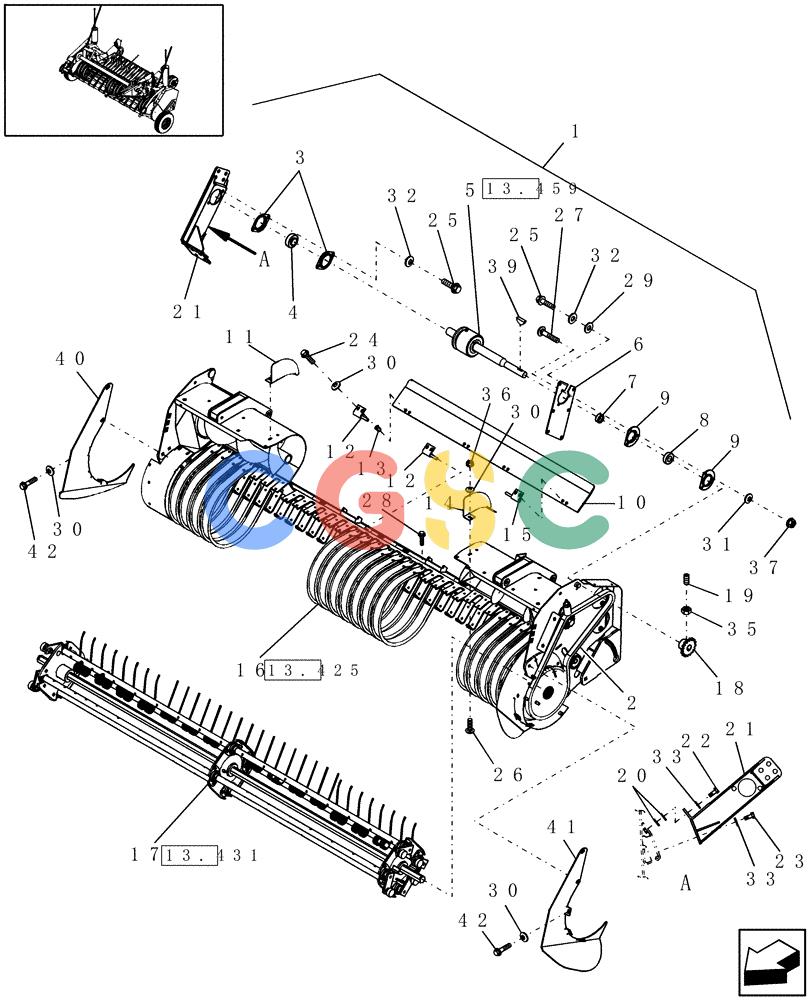

| 1. |
87038220
|
[1] |
PICK-UP
|
PA
2M Wide Pickup with Rotor
|
| 2. |
87028682
|
[1] |
CHAIN (AG)
|
PA
Roller, RC50, 100 Pitches
|
| 3. |
165385
|
[1] |
FLANGE,62 mm ID x 112.7 mm OD x 9.53 mm
|
NH
Superseded by part number: 84447186
|
| 4. |
617668R92
|
[1] |
BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"
|
IH
Ball Superseded by part number: 84484181
|
| 5. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Overrun Clutch
|
| 6. |
86597579
|
[1] |
PLATE
|
NH
Superseded by part number: 87355833
|
| 7. |
455102R21
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw Superseded by part number: 47577183
|
| 8. |
214366C91
|
[1] |
BALL BEARING,25.40mm ID x 52mm OD
|
IH
Ball Superseded by part number: 204807C91
|
| 9. |
86603075
|
[2] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
|
| 10. |
86624393
|
[1] |
FLOOR
|
PA
Steel, Also Required: Ref. 12, 13, 15 & 24 Superseded by part number: 87034817, 47864510
|
| 10. |
87050285
|
[1] |
FLOOR,260mm W x 1150mm L, Polyurethane
|
PA
Plastic, Also Required: Ref. 28 Superseded by part number: 47864510, 87577839
|
| 11. |
86628840
|
[1] |
SHIELD
|
NH
|
| 12. |
803349
|
[2] |
HINGE
|
NH
RH
|
| 13. |
86610199
|
[8] |
INSERT
|
PA
NUT Threaded, M6 Superseded by part number: 84272827
|
| 14. |
86628839
|
[1] |
SHIELD
|
NH
|
| 15. |
803348
|
[2] |
HINGE
|
NH
LH
|
| 18. |
86610143
|
[1] |
SPROCKET
|
NH
17T, RC 50, Standard Superseded by part number: 87047646
|
| 18. |
87055082
|
[1] |
SPROCKET
|
PA
18T, RC 50, Optional Superseded by part number: 87397995
|
| 19. |
300483
|
[2] |
SET SCREW,M10 x 25mm
|
PA
|
| 20. |
131405
|
[4] |
SHIM
|
NH
.025"
|
| 21. |
87015891
|
[1] |
LIFT ARM
|
PA
|
| 22. |
614-12030
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 23. |
614-12040
|
[4] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 24. |
844-6025
|
[8] |
BOLT,Hvy Hex, M6 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9804257
|
| 25. |
844-10030
|
[8] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 26. |
811-6016
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 86512439
|
| 27. |
811-8030
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8
|
CAS
|
| 28. |
87034817
|
[34] |
SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"
|
CAS
|
| 29. |
495-21044
|
[6] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 30. |
322357
|
[16] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 31. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 32. |
140045
|
[8] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 33. |
140046
|
[6] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 35. |
825-1410
|
[2] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 36. |
825-2406
|
[4] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 37. |
825-2408
|
[3] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 39. |
126-24
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1"
|
CAS
Superseded by part number: 47471
|
| 40. |
87053732
|
[1] |
GUARD
|
PA
RH Superseded by part number: 84324676
|
| 41. |
87053734
|
[1] |
GUARD
|
PA
LH
|
| 42. |
844-6020
|
[6] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
