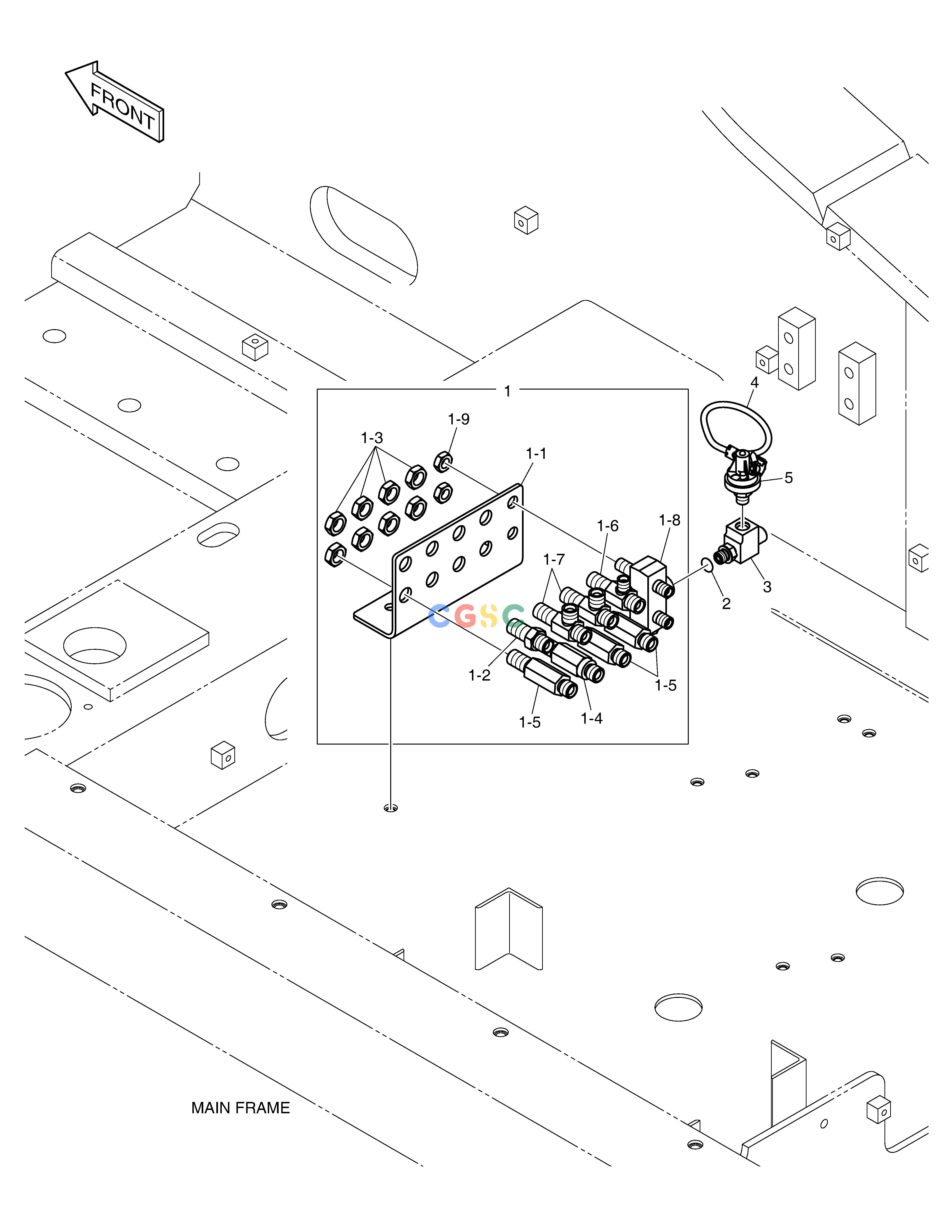

斗山零件查询PILOT PIPING - TWO PUMP(ONE or TWO WAY) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11388
|
[-] |
|
|
| 1. |
430216-00006
|
[1] |
|
|
| 1-1. |
K1000354
|
[1] |
PLATE
|
|
| 1-2. |
181-00078D1
|
[1] |
ADAPTER
|
|
| 1-3. |
121-00010D1
|
[8] |
NUT
|
|
| 1-4. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 1-5. |
DS2410009
|
[3] |
ADAPTER
|
|
| 1-6. |
181-00086D1
|
[1] |
TEE
|
|
| 1-7. |
181-00086D2
|
[2] |
TEE
|
|
| 1-8. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 1-9. |
121-00010D7
|
[2] |
NUT
|
|
| 2. |
S8000111
|
[1] |
O-RING
|
|
| 3. |
181-00760
|
[1] |
TEE
|
|
| 4. |
530-00067
|
[1] |
HARNESS
|
|
| 5. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
