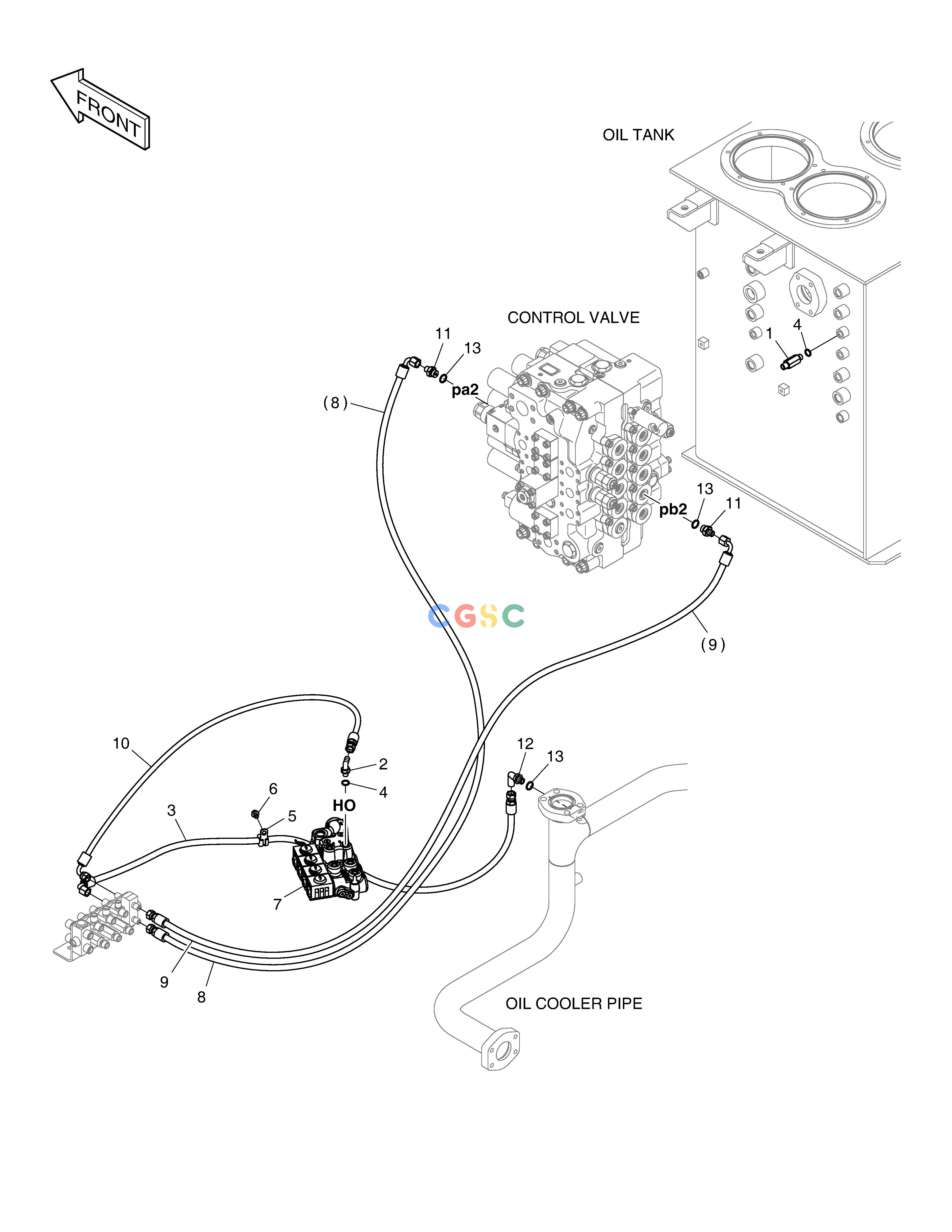

斗山零件查询PILOT PIPING - TWO PUMP(ONE WAY) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
356 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-14251
|
[-] |
|
|
| 1. |
2181-1126D34
|
[1] |
ADAPTER
|
|
| 10. |
DS2093005
|
[1] |
HOSE
|
|
| 11. |
2181-1126D36
|
[2] |
ADAPTER
|
|
| 12. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 13. |
S8000141
|
[3] |
O-RING
|
|
| 2. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 3. |
DS2093014
|
[1] |
HOSE
|
|
| 4. |
S8000111
|
[2] |
O-RING
|
|
| 5. |
124-00208D2
|
[1] |
CLAMP
|
|
| 6. |
K1001029
|
[1] |
BOLT
|
|
| 7. |
410135-01299
|
[1] |
|
|
| 7. |
K1047556
|
[1] |
VALVE;SOLENOID
|
|
| 8. |
DS2093163
|
[1] |
HOSE
|
|
| 9. |
DS2093101
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
