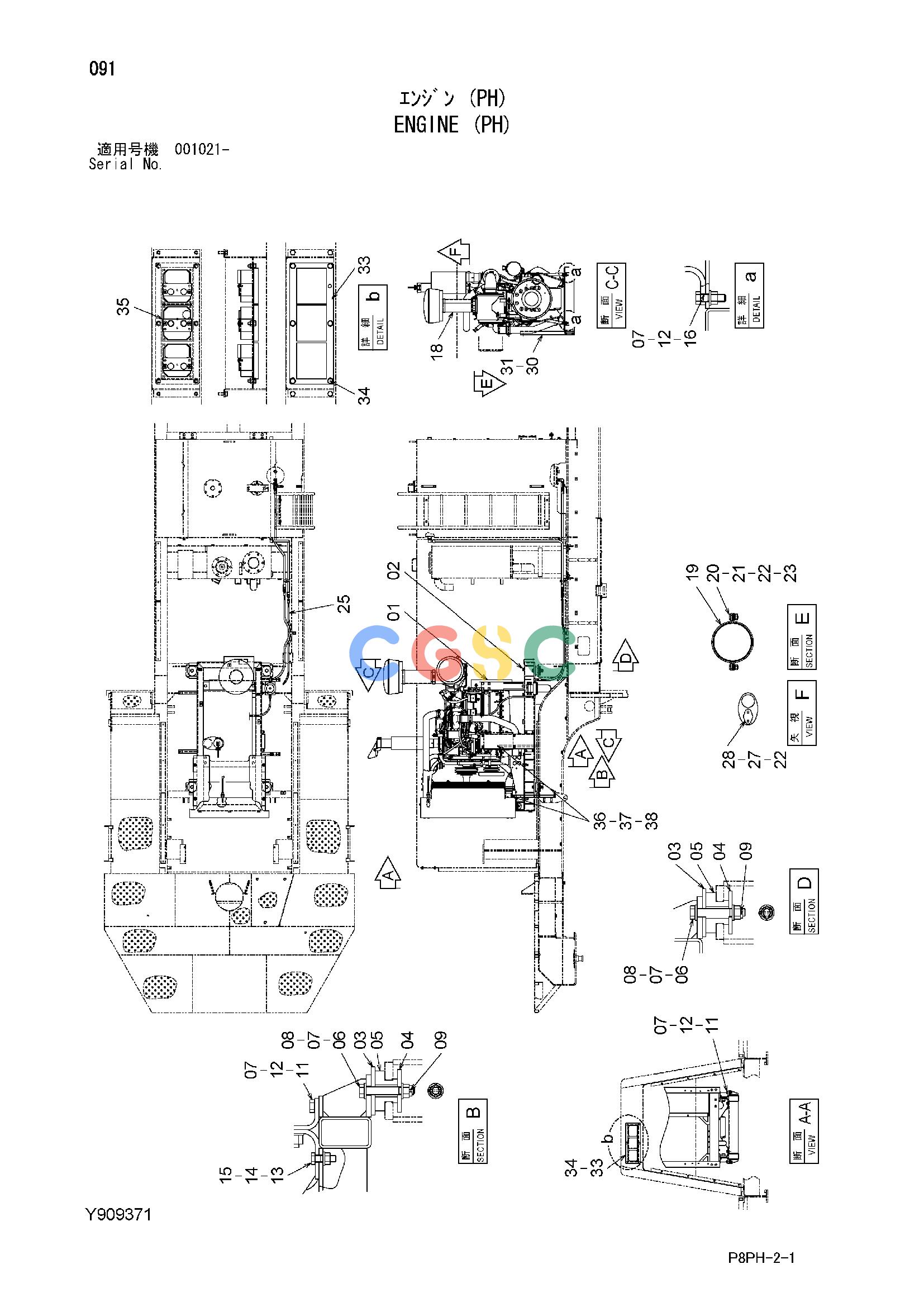

日立零件查询（AR2000）ENGINE (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
157 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411262 | [1] | ENGINE (PH) | |
| 02. | Y600441 | [1] | FRAME;ENGINE | |
| 03. | Y411466 | [4] | PLATE | |
| 04. | Y411467 | [4] | PLATE | |
| 05. | Y411463 | [4] | RUBBER | |
| 06. | Y410094 | [4] | BOLT | |
| 07. | J222018 | [14] | WASHER | |
| 08. | M641821 | [4] | NUT;CASTLE | |
| 09. | A764036 | [4] | PIN;SPLIT | |
| 11. | J921855 | [4] | BOLT | |
| 12. | J950018 | [6] | NUT | |
| 13. | J921650 | [4] | BOLT | |
| 14. | J222016 | [4] | WASHER | |
| 15. | J950016 | [4] | NUT | |
| 16. | J921860 | [2] | BOLT | |
| 18. | Y971315 | [1] | PIPE | |
| 19. | Y411505 | [2] | CLAMP | |
| 20. | J901030 | [2] | BOLT | |
| 21. | A590110 | [2] | WASHER;PLANE | |
| 22. | A590910 | [4] | WASHER;SPRING | |
| 23. | J950010 | [2] | NUT | |
| 25. | +++++++ | [1] | FUEL TUBE (PH) | <for details: see separate page> |
| 27. | Y409397 | [2] | BOLT | |
| 28. | Y412669 | [1] | PLATE | |
| 30. | Y802058 | [1] | BRACKET | |
| 31. | J271020 | [4] | BOLT;SEMS | |
| 31A. | J901020 | [1] | BOLT | |
| 31B. | J222010 | [1] | WASHER | |
| 33. | Y301722 | [1] | PLATE | |
| 34. | J271025 | [6] | BOLT;SEMS | |
| 34A. | J901025 | [1] | BOLT | |
| 34B. | J222010 | [1] | WASHER | |
| 35. | Y413073 | [3] | BRACKET | |
| 36. | Y415412 | [2] | HOSE;RUBBER | |
| 37. | 4514699 | [2] | CLAMP;HOSE | |
| 38. | 4055312 | [2] | CLIP;BAND | |
