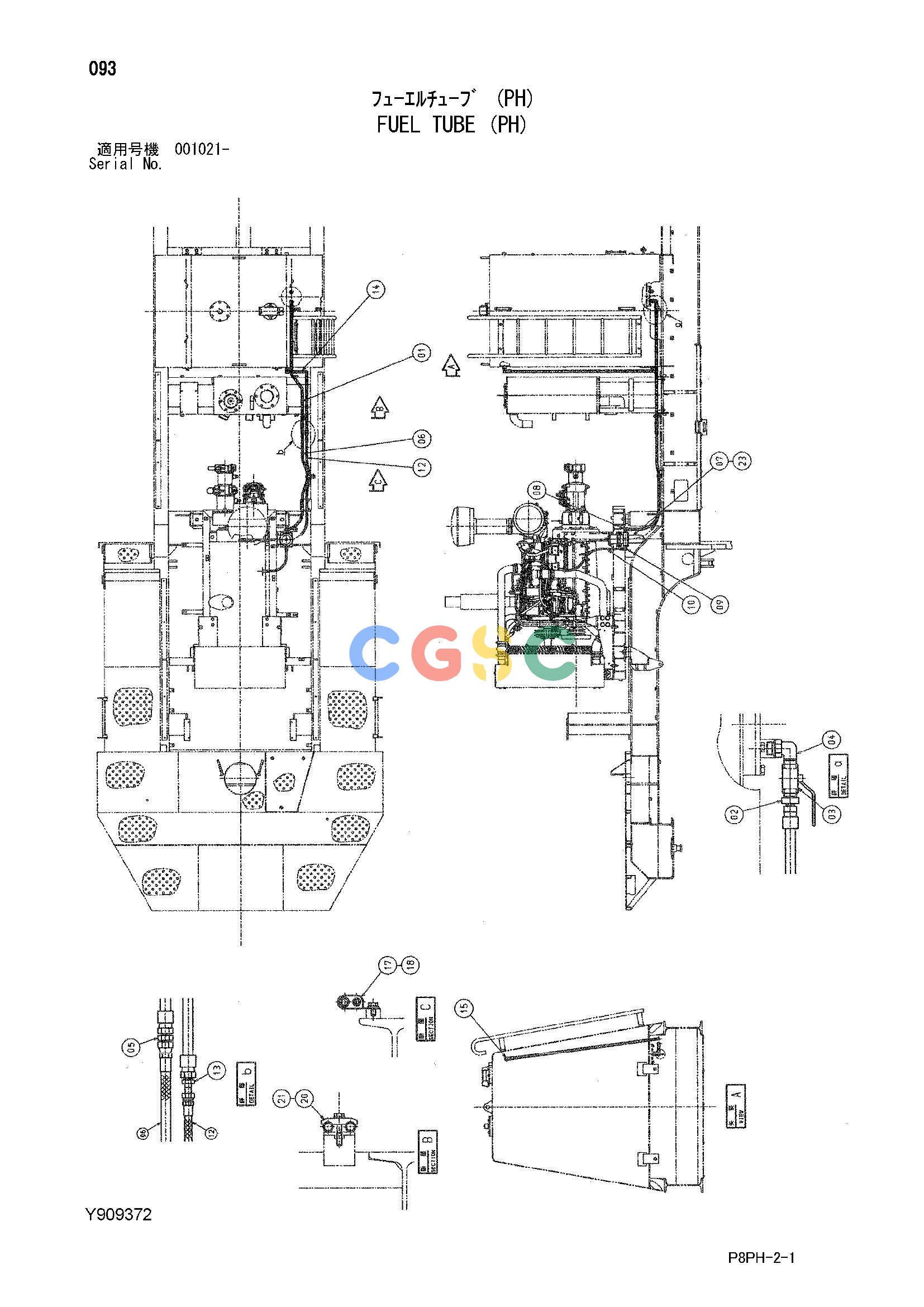

日立零件查询（AR2000）FUEL TUBE (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
240 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y971316 | [1] | PIPE | |
| 02. | 4317015 | [1] | ADAPTER;S | |
| 03. | 94-4029 | [1] | COCK | |
| 04. | 4174588 | [1] | ELBOW;S | |
| 04A. | 4506424 | [1] | O-RING | |
| 05. | 4277889 | [1] | ADAPTER;S | |
| 06. | Y411506 | [1] | HOSE | |
| 07. | Y409587 | [1] | FILTER;FUEL | |
| 08. | 4154658 | [1] | ELBOW;S | |
| 09. | 4207744 | [1] | ELBOW;S | |
| 10. | Y411507 | [1] | HOSE | |
| 12. | Y411508 | [1] | HOSE | |
| 13. | 4354585 | [1] | ADAPTER;S | |
| 14. | Y971317 | [1] | PIPE | |
| 15. | 4353073 | [1] | ELBOW;S | |
| 15A. | 4506424 | [1] | O-RING | |
| 17. | 4192034 | [1] | CLIP | |
| 18. | J271020 | [1] | BOLT;SEMS | |
| 18A. | J901020 | [1] | BOLT | |
| 18B. | J222010 | [1] | WASHER | |
| 20. | 4053593 | [1] | CLAMP;PIPE | |
| 21. | J271060 | [1] | BOLT;SEMS | |
| 21A. | J901060 | [1] | BOLT | |
| 21B. | J222010 | [1] | WASHER | |
| 23. | J260814 | [2] | BOLT;SEMS | |
| 23A. | J900814 | [1] | BOLT | |
| 23B. | A590108 | [1] | WASHER;PLANE | |
