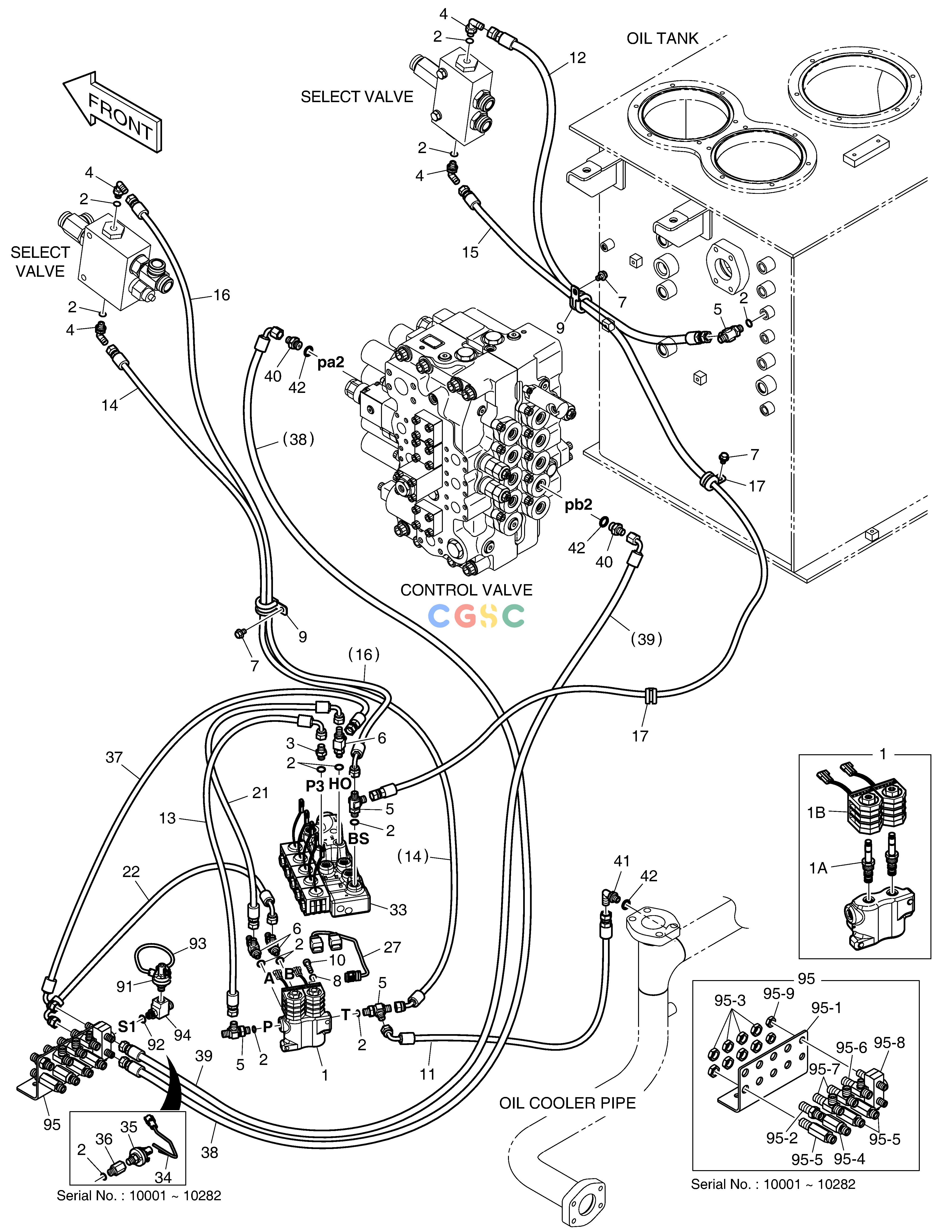

斗山零件查询PILOT PIPING - TWO WAY(1) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-10280
|
[-] |
|
|
| 1. |
426-00247B
|
[1] |
VALVE;SOLENOID
|
|
| 10. |
S2209266
|
[2] |
BOLT
|
|
| 11. |
DS2093036
|
[1] |
HOSE
|
|
| 12. |
DS2094087
|
[1] |
HOSE
|
|
| 13. |
DS2093127
|
[1] |
HOSE
|
|
| 14. |
DS2092039
|
[1] |
HOSE
|
|
| 15. |
DS2093105
|
[1] |
HOSE
|
|
| 16. |
DS2093034
|
[1] |
HOSE
|
|
| 17. |
124-00208D2
|
[2] |
CLAMP
|
|
| 1A. |
K9007363
|
[2] |
SPOOL;SOLENOID
|
|
| 1B. |
1.519-00001
|
[2] |
COIL
|
|
| 2. |
S8000111
|
[13] |
O-RING
|
|
| 2. |
S8000111
|
[12] |
O-RING
|
|
| 21. |
DS2093027
|
[1] |
HOSE
|
|
| 22. |
DS2091003
|
[1] |
HOSE
|
|
| 27. |
K1003638B
|
[1] |
HARNESS;JOINT
|
|
| 3. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 33. |
K1045023
|
[1] |
VALVE;SOLENOID
|
|
| 34. |
530-00067
|
[1] |
HARNESS
|
|
| 35. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 36. |
DS2242017
|
[1] |
REDUCER
|
|
| 37. |
DS2154014
|
[1] |
|
|
| 38. |
DS2093163
|
[1] |
HOSE
|
|
| 39. |
DS2093101
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 4. |
2181-1702D4
|
[4] |
ELBOW
|
|
| 40. |
2181-1126D36
|
[2] |
ADAPTER
|
|
| 41. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 42. |
S8000141
|
[3] |
O-RING
|
|
| 5. |
2181-1951D1
|
[4] |
TEE
|
|
| 6. |
181-00779
|
[3] |
TEE
|
|
| 7. |
K1001029
|
[3] |
BOLT
|
|
| 8. |
S5110503
|
[2] |
WASHER
|
|
| 9. |
124-00208D4
|
[2] |
CLIP
|
|
| 91. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 92. |
S8000111
|
[1] |
O-RING
|
|
| 93. |
530-00067
|
[1] |
HARNESS
|
|
| 94. |
K1002778
|
[1] |
|
|
| 95. |
430216-00006
|
[1] |
|
|
| 95-1. |
K1000354
|
[1] |
PLATE
|
|
| 95-2. |
181-00078D1
|
[1] |
ADAPTER
|
|
| 95-3. |
121-00010D1
|
[8] |
NUT
|
|
| 95-4. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 95-5. |
DS2410009
|
[3] |
ADAPTER
|
|
| 95-6. |
181-00086D1
|
[1] |
TEE
|
|
| 95-7. |
181-00086D2
|
[2] |
TEE
|
|
| 95-8. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 95-9. |
121-00010D7
|
[2] |
NUT
|
|
