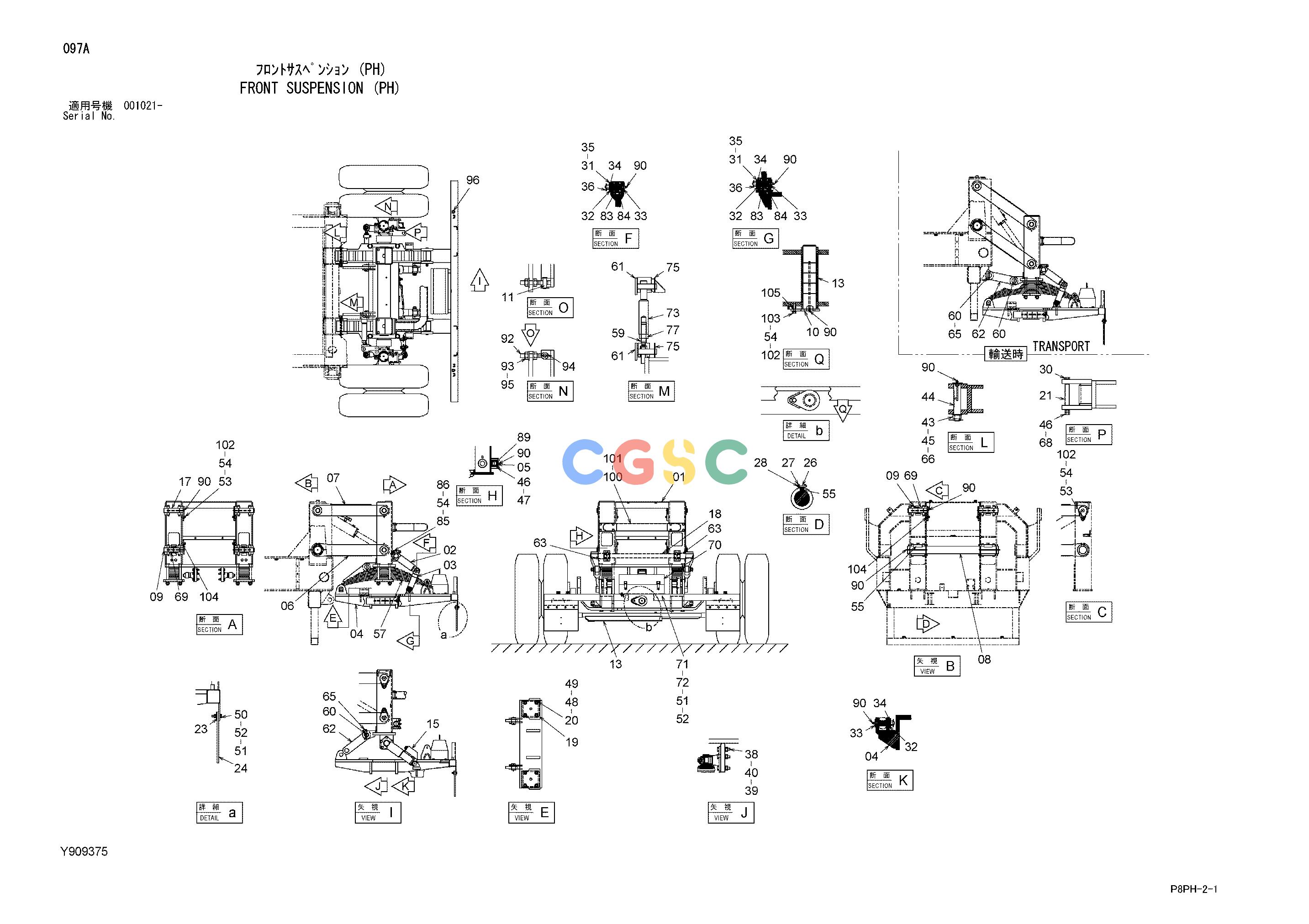

日立零件查询（AR2000）FRONT SUSPENSION (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
452 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y600419 | [1] | FRAME;FRONT | |
| 02. | Y200350 | [2] | ARM | |
| 03. | Y301712 | [2] | ROD | |
| 04. | Y600553 | [1] | FRAME | |
| 05. | Y970912 | [2] | BRG. | |
| 06. | Y802013 | [2] | LINK | |
| 07. | Y802014 | [2] | LINK | |
| 08. | Y301724 | [1] | SHAFT | |
| 09. | Y971297 | [4] | PIN | |
| 10. | Y802335 | [1] | PIN | |
| 11. | Y409179 | [4] | PIN | |
| 13. | +++++++ | [1] | COMPLETE AXLE (PH) | <for details: see separate page> |
| 15. | Y411228 | [2] | ABSORBER;SHOCK | |
| 17. | Y971296 | [2] | PIN | |
| 18. | Y301710 | [1] | SHAFT | |
| 19. | Y301385 | [2] | SPRING PLATE | |
| 20. | Y409185 | [8] | BOLT | |
| 21. | Y412001 | [2] | SLEEVE | |
| 23. | Y409188 | [2] | FLAT BAR | |
| 24. | Y409189 | [2] | RUBBER | |
| 26. | Y411588 | [2] | PIN | |
| 27. | A590108 | [4] | WASHER;PLANE | |
| 28. | A763020 | [4] | PIN;SPLIT | |
| 30. | J901616 | [2] | BOLT | |
| 31. | J217085 | [4] | WASHER;PLANE | |
| 32. | Y410024 | [6] | SLEEVE | |
| 33. | Y410023 | [6] | PIN | |
| 34. | A810025 | [6] | O-RING | |
| 35. | M641619 | [4] | NUT;CASTLE | |
| 36. | A764032 | [4] | PIN;SPLIT | |
| 38. | J901465 | [10] | BOLT | |
| 39. | J950014 | [10] | NUT | |
| 40. | A590914 | [10] | WASHER;SPRING | |
| 43. | M643033 | [2] | NUT;CASTLE | |
| 44. | Y301386 | [2] | PIN | |
| 45. | A590130 | [2] | WASHER;PLANE | |
| 46. | J950016 | [12] | NUT | |
| 47. | A590916 | [8] | WASHER;SPRING | |
| 48. | J950024 | [8] | NUT | |
| 49. | A590924 | [8] | WASHER;SPRING | |
| 50. | J901050 | [8] | BOLT | |
| 51. | J950010 | [12] | NUT | |
| 52. | A590910 | [12] | WASHER;SPRING | |
| 53. | J901240 | [6] | BOLT | |
| 54. | A590912 | [11] | WASHER;SPRING | |
| 55. | Y409192 | [2] | KEY | |
| 57. | Y411227 | [2] | SPRING;LEAF | |
| 59. | Y971651 | [1] | COMPLETE CATCH | |
| 60. | Y970908 | [4] | COMPLETE PIN | |
| 61. | Y970973 | [2] | PIN | |
| 62. | Y409198 | [2] | PULL ROD | |
| 63. | Y409199 | [2] | PIPE | |
| 65. | 4196305 | [4] | PIN;LOCK | |
| 66. | A766063 | [2] | PIN;SPLIT | |
| 68. | A590116 | [2] | WASHER;PLANE | |
| 69. | Y411706 | [8] | RING | |
| 70. | Y410507 | [1] | TOOL BOX | |
| 71. | J901030 | [4] | BOLT | |
| 72. | A590110 | [8] | WASHER;PLANE | |
| 73. | Y971652 | [1] | AXLE CATCH | |
| 75. | 4080985 | [2] | PIN;LOCK | |
| 77. | M503024 | [1] | NUT | |
| 83. | Y409205 | [4] | BRG.;SPH.ROL. | |
| 84. | 991720 | [8] | RING;RETAINING | |
| 85. | J241240 | [4] | BOLT | |
| 86. | J952012 | [4] | NUT | |
| 89. | Y801709 | [2] | BRG. | |
| 90. | J75481 | [19] | FITTING;GREASE | |
| 92. | Y413799 | [4] | SCREW | |
| 93. | J952024 | [8] | NUT | |
| 94. | A763032 | [4] | PIN;SPLIT | |
| 95. | J222024 | [8] | WASHER | |
| 96. | 94-2816 | [3] | BUSHING;RUBBER | |
| 100. | Y801708 | [1] | BUMPER | |
| 101. | J271230 | [8] | BOLT;SEMS | |
| 101A. | J901230 | [1] | BOLT | |
| 101B. | J222012 | [1] | WASHER | |
| 102. | A590112 | [7] | WASHER;PLANE | |
| 103. | J901250 | [1] | BOLT | |
| 104. | Y410787 | [6] | SPACER | |
| 105. | Y410788 | [1] | SPACER | |
