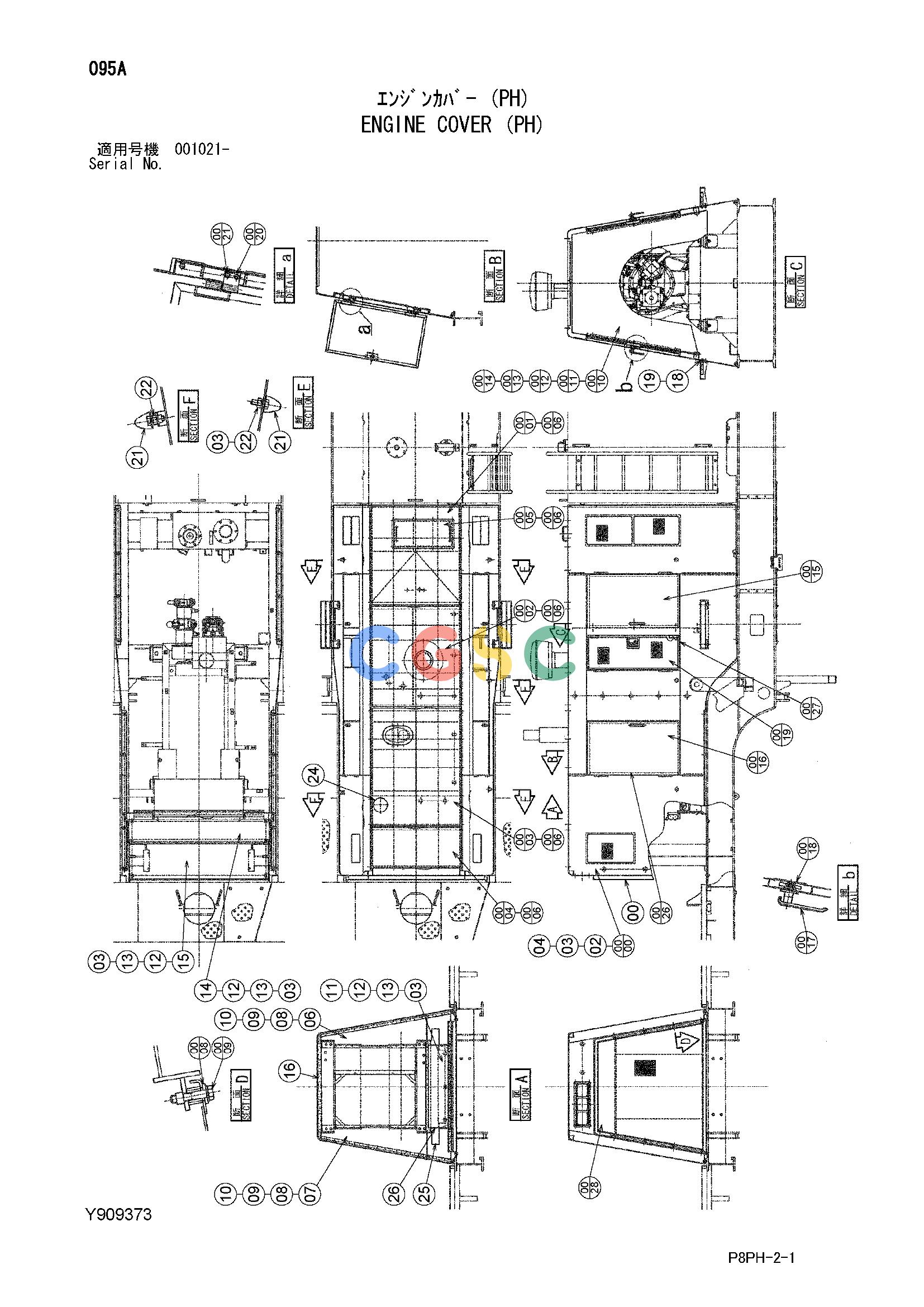

日立零件查询（AR2000）ENGINE COVER (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
257 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y411722 | [1] | COVER;ENGINE | |
| 0000. | Y500275 | [1] | COVER;ENGINE | |
| 0001. | Y700922 | [1] | ROOF | |
| 0002. | Y700923 | [1] | ROOF | |
| 0003. | Y700924 | [1] | ROOF | |
| 0004. | Y802061 | [1] | ROOF | |
| 0005. | Y802059 | [1] | COVER | |
| 0006. | J260820 | [44] | BOLT;SEMS | |
| 0006A. | J900820 | [1] | BOLT | |
| 0006B. | A590108 | [1] | WASHER;PLANE | |
| 0008. | Y411714 | [6] | WASHER | |
| 0009. | J260840 | [6] | BOLT;SEMS | |
| 0009A. | J900840 | [1] | BOLT | |
| 0009B. | A590108 | [1] | WASHER;PLANE | |
| 0010. | Y301725 | [1] | COVER | |
| 0011. | J900820 | [7] | BOLT | |
| 0012. | A590108 | [7] | WASHER;PLANE | |
| 0013. | A590908 | [7] | WASHER;SPRING | |
| 0014. | M500807 | [7] | NUT | |
| 0015. | Y700916 | [2] | DOOR (R) | |
| 0016. | Y700917 | [2] | DOOR (L) | |
| 0017. | Y411669 | [4] | HANDLE;DOOR | |
| 0018. | Y411721 | [4] | RATCH | |
| 0019. | Y700918 | [1] | DOOR | |
| 0020. | Y411623 | [10] | HINGE | |
| 0021. | J260825 | [20] | BOLT;SEMS | |
| 0021A. | J900825 | [1] | BOLT | |
| 0021B. | A590108 | [1] | WASHER;PLANE | |
| 0026. | Y412690 | [4] | RUBBER | |
| 0027. | Y412742 | [2] | RUBBER | |
| 0028. | Y700991 | [1] | GRILLE | |
| 02. | J921025 | [16] | BOLT | |
| 03. | A590910 | [29] | WASHER;SPRING | |
| 04. | J217083 | [32] | WASHER | |
| 06. | Y700929 | [1] | COVER | |
| 07. | Y700930 | [1] | COVER | |
| 08. | J900820 | [8] | BOLT | |
| 09. | A590908 | [8] | WASHER;SPRING | |
| 10. | A590108 | [8] | WASHER;PLANE | |
| 11. | Y802068 | [1] | COVER | |
| 12. | J901020 | [9] | BOLT | |
| 13. | A590110 | [9] | WASHER;PLANE | |
| 14. | Y802067 | [1] | COVER | |
| 15. | Y301727 | [1] | COVER | |
| 16. | Y411734 | [1] | RUBBER | |
| 18. | Y802069 | [2] | STEP | |
| 19. | J271030 | [8] | BOLT;SEMS | |
| 19A. | J901030 | [1] | BOLT | |
| 19B. | J222010 | [1] | WASHER | |
| 21. | 4204586 | [5] | STOPPER | |
| 22. | J950010 | [5] | NUT | |
| 24. | Y410249 | [1] | RUBBERIZED CORD | |
| 25. | Y413055 | [2] | TRIM;SEAL | |
| 26. | Y413056 | [2] | TRIM;SEAL | |
