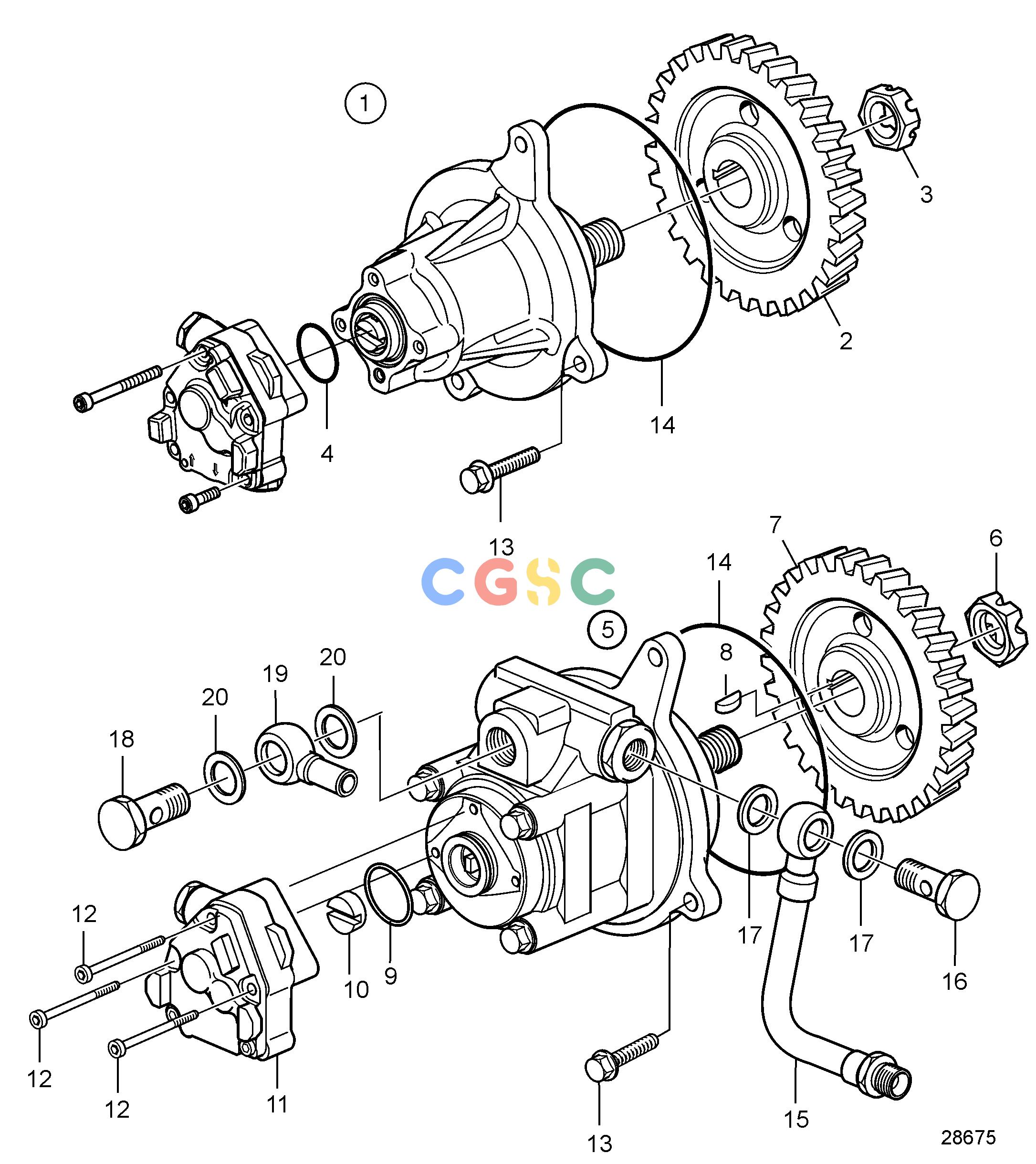

沃尔沃零件查询D16C-D MHFuel SystemFuel PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22677520
|
[1] |
Fuel pump
|
Without servo pump., Compl, (3594872)
|
| 2. |
8131292
|
[1] |
Gear
|
|
| 3. |
20367040
|
[1] |
Castle nut
|
|
| 4. |
948610
|
[1] |
O-ring
|
|
| 5. |
20902698
|
[1] |
Tandem pump
|
With servo pump., 25L/min, Compl, (20482482)
|
| 6. |
20367040
|
[1] |
Castle nut
|
|
| 7. |
8131292
|
[1] |
Gear
|
|
| 8. |
1505357
|
[1] |
Woodruff key
|
|
| 9. |
85103703
|
[1] |
O-ring
|
|
| 10. |
85103779
|
[1] |
Constant velocity jo
|
|
| 11. |
20997341
|
[1] |
Fuel pump
|
(85103778)
|
| 12. |
85103780
|
[3] |
Hex. socket screw
|
|
| 13. |
994386
|
[1] |
Flange screw
|
L=55mm
|
| 13. |
984736
|
[2] |
Flange screw
|
L=30mm
|
| 14. |
977030
|
[1] |
O-ring
|
|
| 15. |
21406534
|
[1] |
Servo pipe
|
|
| 16. |
941686
|
[1] |
Hollow screw
|
|
| 17. |
982724
|
[2] |
Gasket
|
|
| 18. |
191620
|
[1] |
Hollow screw
|
|
| 19. |
1598185
|
[1] |
Banjo nipple
|
|
| 20. |
982508
|
[2] |
Gasket
|
|
