沃尔沃零件查询D16C-D MHFuel SystemFuel System HE -SN1016094476EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
604 次

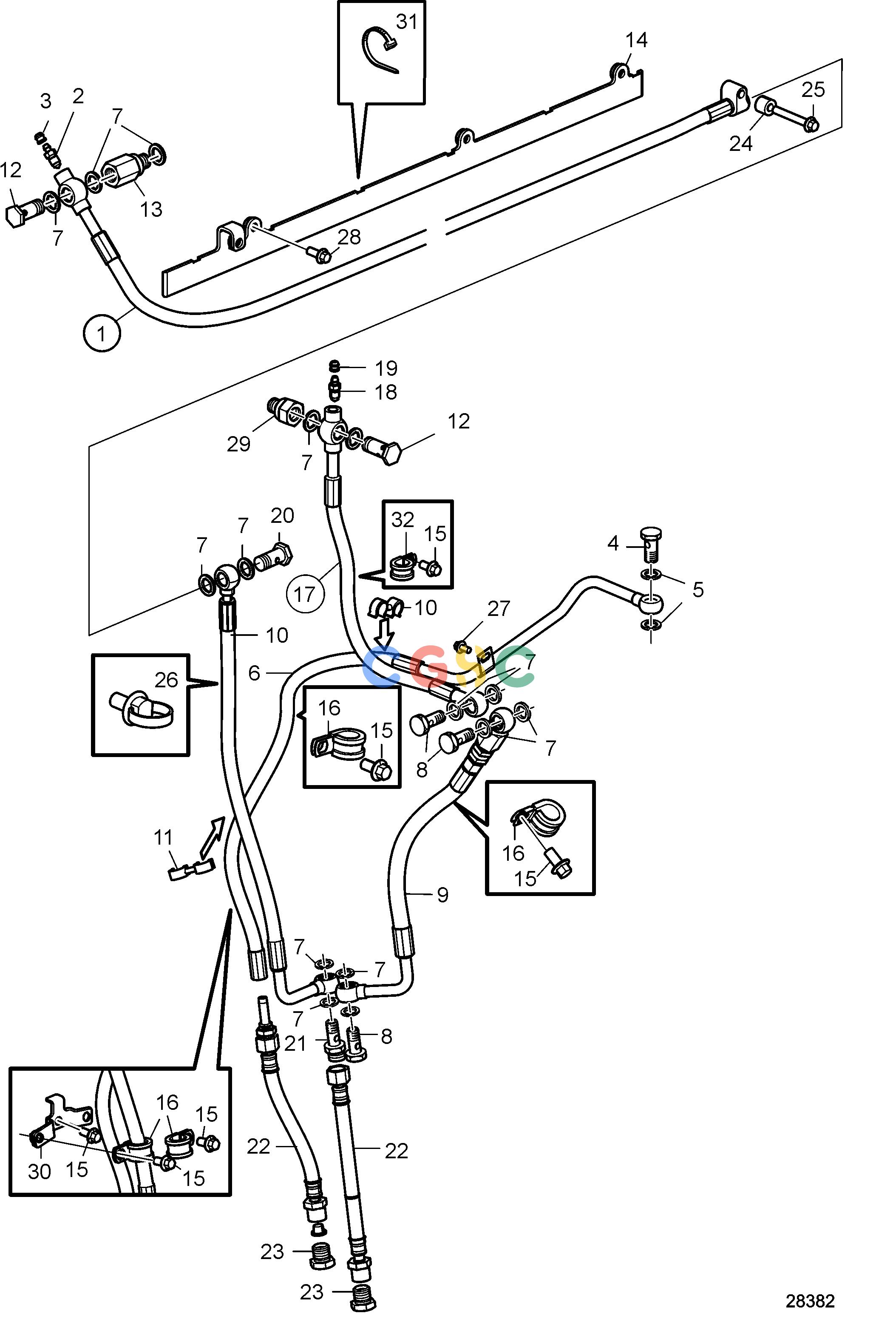

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
40005726
|
[1] |
Fuel hose
|
|
| 2. |
20548012
|
[1] |
Faucet
|
|
| 3. |
20547976
|
[1] |
Protecting cover
|
|
| 4. |
3594288
|
[1] |
Valve
|
|
| 5. |
20852764
|
[2] |
Sealing ring
|
|
| 6. |
22588400
|
[1] |
Fuel hose
|
Replaced by 22722863
|
| 6. |
22722863
|
[1] |
Fuel hose
|
SN-2016106209
|
| 6. |
23040310
|
[1] |
Fuel hose
|
SN2016106210-
|
| 7. |
20852765
|
[13] |
Sealing ring
|
|
| 8. |
941686
|
[3] |
Hollow screw
|
|
| 9. |
21350559
|
[1] |
Fuel hose
|
|
| 10. |
40005074
|
[1] |
Fuel hose
|
|
| 11. |
9194404
|
[2] |
Retainer
|
|
| 12. |
190713
|
[2] |
Hollow screw
|
|
| 13. |
3849956
|
[1] |
Spacer tube
|
|
| 14. |
|
|
|
|
| 15. |
984733
|
[6] |
Flange screw
|
|
| 16. |
949747
|
[4] |
Clamp
|
|
| 17. |
22588403
|
[1] |
Fuel hose
|
|
| 18. |
20548012
|
[1] |
Faucet
|
|
| 19. |
20547976
|
[1] |
Protecting cover
|
|
| 20. |
21088049
|
[1] |
Overflow valve
|
|
| 21. |
3819880
|
[1] |
Nipple
|
|
| 22. |
3817202
|
[2] |
Fuel hose
|
|
| 23. |
22753
|
[2] |
Nipple
|
|
| 24. |
|
|
|
|
| 25. |
994386
|
[1] |
Flange screw
|
|
| 26. |
980881
|
[1] |
Cable tie
|
|
| 27. |
984724
|
[1] |
Flange screw
|
|
| 28. |
984734
|
[3] |
Flange screw
|
|
| 29. |
3849957
|
[1] |
Spacer tube
|
|
| 30. |
22678543
|
[1] |
Bracket
|
|
| 31. |
948616
|
[4] |
Cable tie
|
|
| 32. |
974582
|
[1] |
Clamp
|
|
