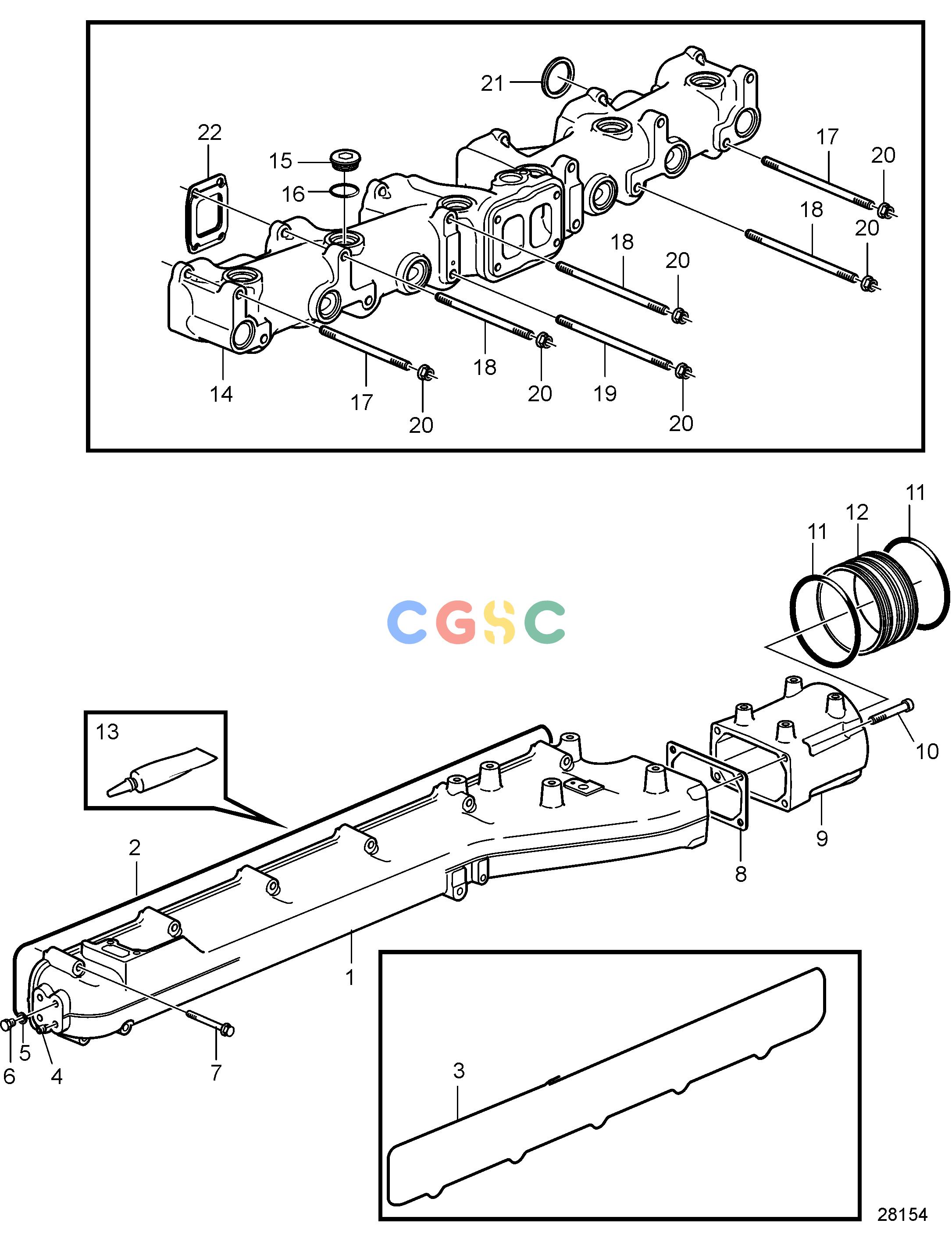

沃尔沃零件查询D16C-D MHIntake and Exhaust SystemInlet and Exhaust Manifolds. SN1016090224-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
662 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21412904
|
[1] |
Inlet manifold
|
|
| 2. |
3887298
|
[1] |
Seal
|
|
| 3. |
21407106
|
[1] |
Seal
|
|
| 4. |
479979
|
[1] |
Plug
|
|
| 5. |
947281
|
[1] |
Gasket
|
|
| 6. |
960628
|
[1] |
Plug
|
|
| 7. |
984741
|
[12] |
Flange screw
|
|
| 8. |
3979639
|
[1] |
Plane gasket
|
|
| 9. |
3819105
|
[1] |
Adapter
|
|
| 10. |
963702
|
[4] |
Hex. socket screw
|
|
| 11. |
21944536
|
[2] |
O-ring
|
|
| 12. |
22288438
|
[1] |
Connector
|
|
| 13. |
1161231
|
[1] |
Sealant
|
|
| 14. |
22640434
|
[1] |
Exhaust manifold
|
|
| 15. |
22640527
|
[18] |
Plug
|
|
| 16. |
975666
|
[18] |
O-ring
|
|
| 17. |
980558
|
[4] |
Stud
|
|
| 18. |
994077
|
[6] |
Stud
|
|
| 19. |
994078
|
[2] |
Stud
|
|
| 20. |
976432
|
[12] |
Flange nut
|
|
| 21. |
975693
|
[2] |
O-ring
|
|
| 22. |
21352841
|
[6] |
Gasket
|
|
