沃尔沃零件查询D16C-D MHIntake and Exhaust SystemTurbochargerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
732 次

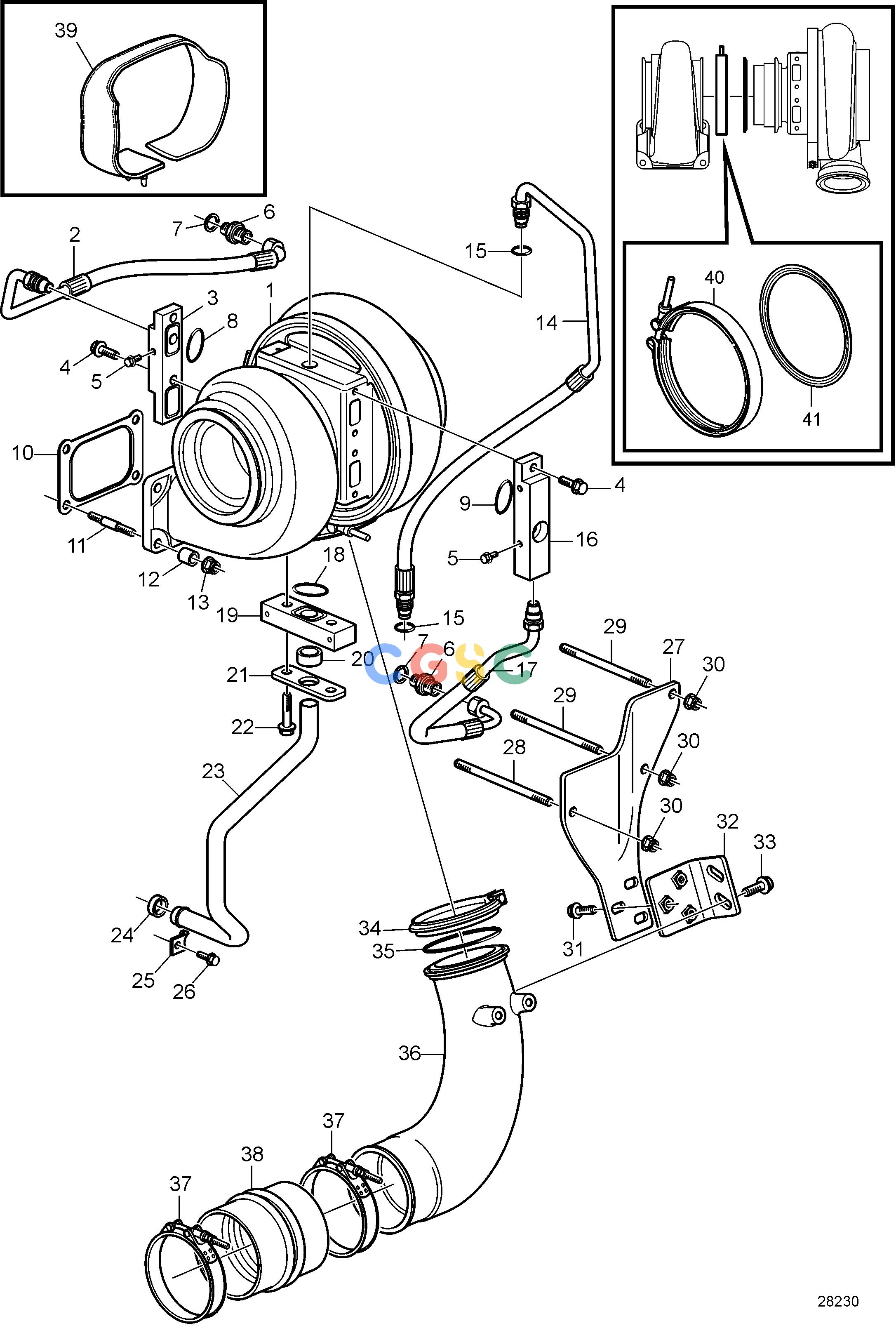

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801381
|
[1] |
Turbocharger
|
|
| 2. |
22529257
|
[1] |
Water hose
|
|
| 3. |
3886298
|
[1] |
Outlet flange
|
|
| 4. |
984735
|
[4] |
Flange screw
|
|
| 5. |
994442
|
[3] |
Flange screw
|
|
| 6. |
963948
|
[2] |
Nipple
|
|
| 7. |
11996
|
[2] |
Gasket
|
|
| 8. |
944126
|
[2] |
O-ring
|
|
| 9. |
944126
|
[2] |
O-ring
|
|
| 10. |
21514422
|
[1] |
Gasket
|
Replaced by 22707542
|
| 10. |
22707542
|
[1] |
Gasket
|
|
| 11. |
994007
|
[4] |
Stud
|
|
| 12. |
60112113
|
[4] |
Spacer sleeve
|
|
| 13. |
994628
|
[4] |
Flange nut
|
|
| 14. |
3849493
|
[1] |
Hose
|
Replaced by 22566296
|
| 14. |
22566296
|
[1] |
Hose
|
SN-2016104051
|
| 14. |
23084965
|
[1] |
Hose
|
SN2016104052-
|
| 15. |
976971
|
[2] |
O-ring
|
|
| 16. |
3849486
|
[1] |
Inlet flange
|
|
| 17. |
22529252
|
[1] |
Water hose
|
|
| 18. |
948610
|
[1] |
O-ring
|
|
| 19. |
21992456
|
[1] |
Flange connection
|
|
| 20. |
469601
|
[1] |
Rubber moulding
|
|
| 21. |
3886434
|
[1] |
Flange
|
|
| 22. |
984738
|
[2] |
Flange screw
|
|
| 23. |
3886955
|
[1] |
Oil pipe
|
|
| 24. |
21940615
|
[1] |
Sealing ring
|
|
| 25. |
1546531
|
[1] |
Lock brace
|
|
| 26. |
984733
|
[1] |
Flange screw
|
|
| 27. |
3885147
|
[1] |
Bracket
|
|
| 28. |
47706540_025
|
|
Stud
|
|
| 28. |
47706540_026
|
|
Stud
|
|
| 29. |
47706540_025
|
|
Stud
|
|
| 29. |
47706540_026
|
|
Stud
|
|
| 30. |
47706540_025
|
|
Nut
|
|
| 30. |
47706540_026
|
|
Nut
|
|
| 31. |
984734
|
[3] |
Flange screw
|
|
| 32. |
3885149
|
[1] |
Bracket
|
|
| 33. |
984753
|
[1] |
Flange screw
|
|
| 34. |
3886542
|
[1] |
V-clamp
|
|
| 35. |
1675066
|
[1] |
Sealing ring
|
|
| 36. |
3818250
|
[1] |
Charge air pipe
|
|
| 37. |
20435760
|
[2] |
Hose clamp
|
|
| 38. |
3838792
|
[1] |
Charge air hose
|
|
| 39. |
3887844
|
[1] |
Insulation
|
|
| 40. |
21439808
|
[1] |
V-clamp
|
See Service Bulletin 25-5-23
|
| 41. |
21358019
|
[1] |
Gasket
|
See Service Bulletin 25-5-23
|
