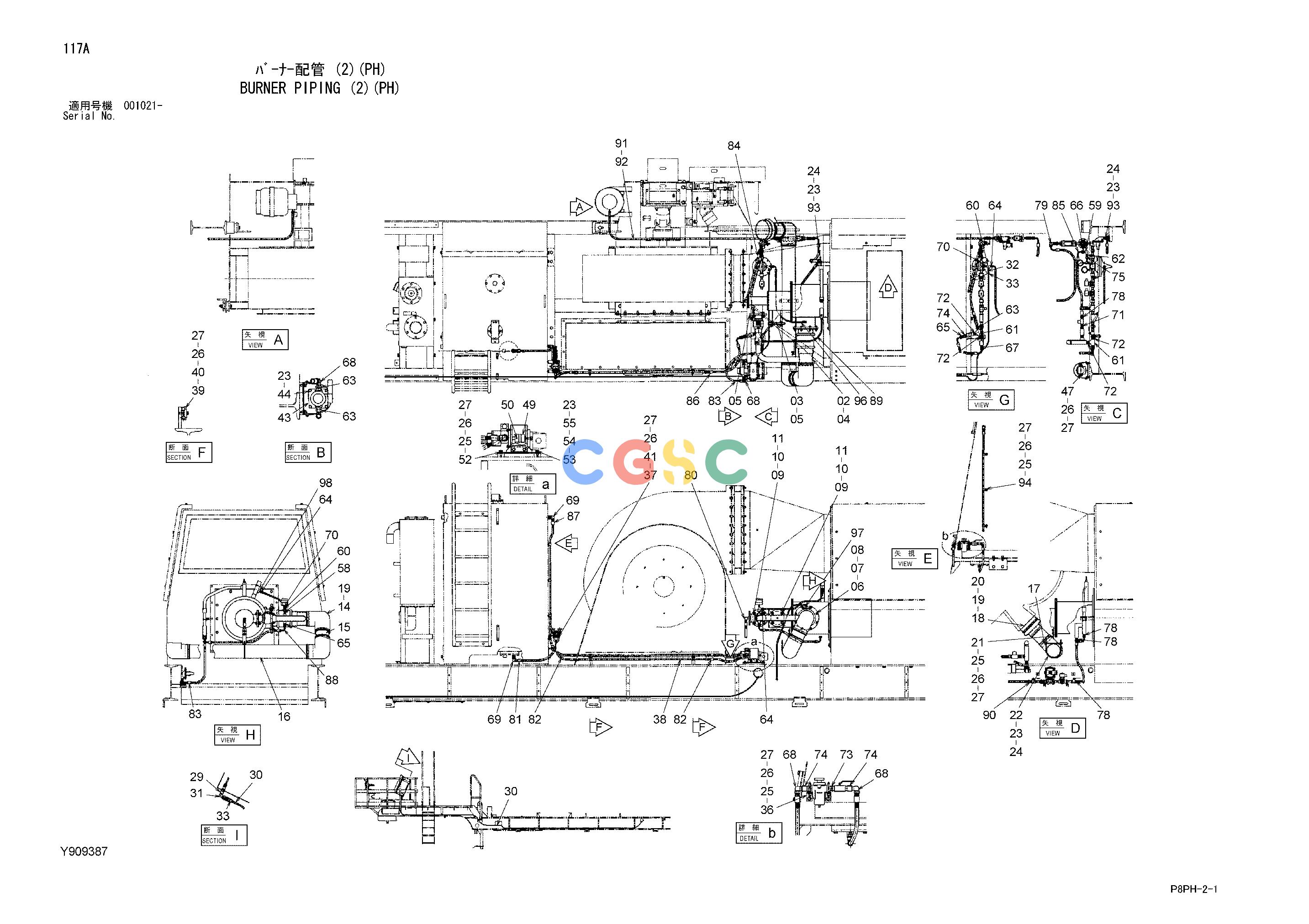

日立零件查询（AR2000）BURNER PIPING (2)(PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
1006 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | Y700816 | [1] | TUBE LINE | |
| 03. | Y409688 | [1] | PLUG | |
| 04. | Y301451 | [1] | WASHER | |
| 05. | Y409681 | [2] | WASHER | |
| 06. | J901245 | [8] | BOLT | |
| 07. | A590912 | [8] | WASHER;SPRING | |
| 08. | J950012 | [8] | NUT | |
| 09. | J931845 | [8] | BOLT | |
| 10. | J257218 | [8] | WASHER;SPRING | |
| 11. | J950018 | [8] | NUT | |
| 14. | 4221469 | [3] | HOSE;RUBBER | |
| 15. | Y409685 | [1] | TUBE | |
| 16. | Y409687 | [1] | TUBE | |
| 17. | Y409686 | [1] | TUBE | |
| 18. | Y410198 | [1] | HOSE;RUBBER | |
| 19. | 4420354 | [7] | CLAMP;HOSE | |
| 20. | 4221275 | [1] | CLAMP;HOSE | |
| 21. | Y802019 | [1] | HANGER | |
| 22. | Y409680 | [1] | BOLT;U | |
| 23. | A590908 | [22] | WASHER;SPRING | |
| 24. | J950008 | [14] | NUT | |
| 25. | J901020 | [11] | BOLT | |
| 26. | A590910 | [19] | WASHER;SPRING | |
| 27. | A590110 | [19] | WASHER;PLANE | |
| 29. | Y410715 | [1] | UNION | |
| 30. | Y411478 | [1] | TUBE | |
| 31. | Y411479 | [1] | ELBOW;S | |
| 32. | Y411480 | [1] | ADAPTER;S | |
| 33. | Y411481 | [2] | CAP | |
| 36. | Y411472 | [2] | BRACKET | |
| 37. | Y411030 | [2] | BOLT;U | |
| 38. | Y971303 | [2] | PIPE | |
| 39. | 4053593 | [2] | CLAMP;PIPE | |
| 40. | J921050 | [2] | BOLT | |
| 41. | J950010 | [4] | NUT | |
| 43. | Y411212 | [1] | PUMP;FUEL | |
| 44. | J900825 | [4] | BOLT | |
| 47. | J901030 | [2] | BOLT | |
| 49. | Y411471 | [1] | COUPLING | |
| 50. | M450616 | [1] | SCREW;SET | |
| 52. | Y802421 | [1] | BRACKET | |
| 53. | Y411470 | [1] | COVER | |
| 54. | J900812 | [4] | BOLT | |
| 55. | A590108 | [4] | WASHER;PLANE | |
| 58. | 94-1701 | [1] | ADAPTER;S | |
| 59. | 94-0616 | [1] | ELBOW;S | |
| 60. | 94-0660 | [2] | TEE | |
| 61. | 94-0663 | [2] | TEE;S | |
| 62. | 94-1601 | [1] | REDUCER | |
| 63. | 94-1603 | [3] | REDUCER | |
| 64. | 4154651 | [3] | ADAPTER;S | |
| 65. | 4221287 | [2] | ADAPTER;S | |
| 66. | 4182732 | [1] | ADAPTER;S | |
| 67. | 4317015 | [1] | ADAPTER;S | |
| 68. | 4154658 | [4] | ELBOW;S | |
| 69. | 4353073 | [2] | ELBOW;S | |
| 69A. | 4506424 | [1] | O-RING | |
| 70. | 4351271 | [2] | ADAPTER;S | |
| 71. | 4189320 | [1] | ADAPTER;S | |
| 72. | 4191645 | [4] | ADAPTER;S | |
| 73. | Y411987 | [1] | ADAPTER;S | |
| 74. | Y411988 | [3] | REDUCER;S | |
| 75. | 4140673 | [1] | REDUCER;S | |
| 78. | Y411985 | [4] | ADAPTER;S | |
| 79. | Y411986 | [1] | ELBOW;S | |
| 80. | Y410343 | [1] | ELBOW;S | |
| 81. | Y413418 | [1] | HOSE | |
| 82. | Y413419 | [2] | HOSE | |
| 83. | Y413420 | [2] | HOSE | |
| 84. | Y413421 | [1] | HOSE | |
| 85. | Y413422 | [1] | HOSE | |
| 86. | Y413423 | [1] | HOSE | |
| 87. | Y413424 | [1] | HOSE | |
| 88. | Y413425 | [1] | HOSE | |
| 89. | Y413426 | [1] | HOSE | |
| 90. | Y411990 | [1] | FITTING;HOSE | |
| 91. | Y412007 | [2] | BAND;HOSE | |
| 92. | Y412008 | [1] | HOSE;RUBBER | |
| 93. | Y409679 | [6] | BOLT;U | |
| 94. | 4190277 | [3] | CLIP | |
| 96. | Y413427 | [1] | HOSE | |
| 97. | 4154656 | [1] | ELBOW;S | |
| 98. | Y412662 | [1] | REDUCER;S | |
