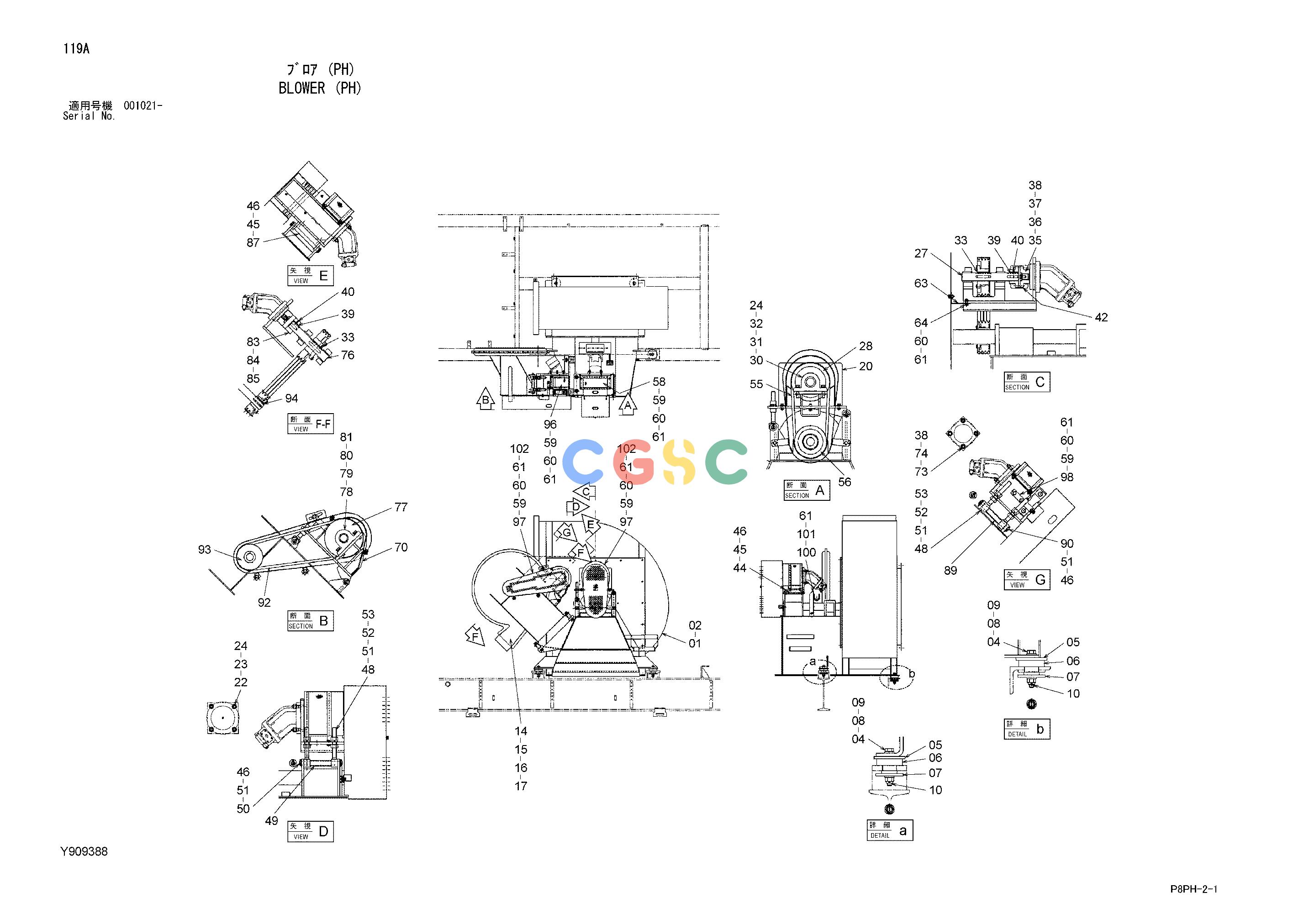

日立零件查询（AR2000）BLOWER (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
392 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411235 | [1] | BLOWER | |
| 02. | Y409269 | [1] | BLANKET | |
| 04. | Y410094 | [4] | BOLT | |
| 05. | Y411466 | [4] | PLATE | |
| 06. | Y411463 | [4] | RUBBER | |
| 07. | Y411467 | [4] | PLATE | |
| 08. | M641821 | [4] | NUT;CASTLE | |
| 09. | J222018 | [8] | WASHER | |
| 10. | A764040 | [4] | PIN;SPLIT | |
| 14. | J922004 | [4] | BOLT | |
| 15. | J222020 | [8] | WASHER | |
| 16. | A590920 | [4] | WASHER;SPRING | |
| 17. | J951020 | [4] | NUT | |
| 20. | Y600431 | [1] | MOTOR BASE | |
| 22. | J921670 | [4] | BOLT | |
| 23. | J951016 | [4] | NUT | |
| 24. | A590916 | [8] | WASHER;SPRING | |
| 27. | Y301689 | [1] | SHAFT | |
| 28. | Y411458 | [1] | PULLEY;V | |
| 30. | 4401305 | [2] | BRG.;UNIT | |
| 31. | J921660 | [4] | BOLT | |
| 32. | A590116 | [4] | WASHER;PLANE | |
| 33. | 94-2310 | [2] | KEY | |
| 35. | Y411446 | [1] | COUPLING;CHAIN | |
| 36. | J901230 | [1] | BOLT | |
| 37. | Y410668 | [1] | WASHER | |
| 38. | A590912 | [1] | WASHER;SPRING | |
| 39. | 94-2306 | [2] | KEY | |
| 40. | Y410687 | [4] | SCREW;SET | |
| 42. | Y411451 | [1] | CASE | |
| 44. | Y409851 | [1] | PIN | |
| 45. | A590120 | [4] | WASHER;PLANE | |
| 46. | A765040 | [8] | PIN;SPLIT | |
| 48. | Y970989 | [4] | PIN | |
| 49. | Y409798 | [1] | PIPE | |
| 50. | Y411609 | [1] | PIN | |
| 51. | A590124 | [12] | WASHER;PLANE | |
| 52. | J257224 | [4] | WASHER;SPRING | |
| 53. | J951024 | [8] | NUT | |
| 55. | Y410245 | [4] | BELT;V | |
| 56. | Y411457 | [1] | PULLEY;V | |
| 58. | Y700932 | [1] | SHIELD | |
| 59. | J921025 | [16] | BOLT | |
| 60. | A590910 | [17] | WASHER;SPRING | |
| 61. | A590110 | [19] | WASHER;PLANE | |
| 63. | Y971298 | [1] | BRACKET | |
| 64. | J921035 | [1] | BOLT | |
| 66. | Y600433 | [1] | SHIELD | |
| 70. | Y600432 | [1] | MOTOR BASE | |
| 73. | J921260 | [4] | BOLT | |
| 74. | J951012 | [4] | NUT | |
| 76. | Y301690 | [1] | SHAFT | |
| 77. | Y411456 | [1] | PULLEY;V | |
| 78. | Y411453 | [2] | BRG.;UNIT | |
| 79. | J921450 | [4] | BOLT | |
| 80. | A590114 | [4] | WASHER;PLANE | |
| 81. | A590914 | [4] | WASHER;SPRING | |
| 83. | Y411447 | [1] | COUPLING | |
| 84. | M311230 | [1] | BOLT;FLUSH | |
| 85. | Y411367 | [1] | WASHER | |
| 87. | Y409794 | [1] | PIN | |
| 89. | Y409799 | [1] | PIPE | |
| 90. | Y409797 | [1] | PIN | |
| 92. | Y411449 | [3] | BELT;V | |
| 93. | Y411455 | [1] | PULLEY;V | |
| 94. | Y411684 | [1] | KEY | |
| 96. | Y802009 | [1] | SHIELD | |
| 97. | Y600434 | [1] | SHIELD | |
| 98. | Y971363 | [1] | BRACKET | |
| 100. | Y971166 | [1] | CLAMP | |
| 101. | J901025 | [2] | BOLT | |
| 102. | J217083 | [2] | WASHER | |
