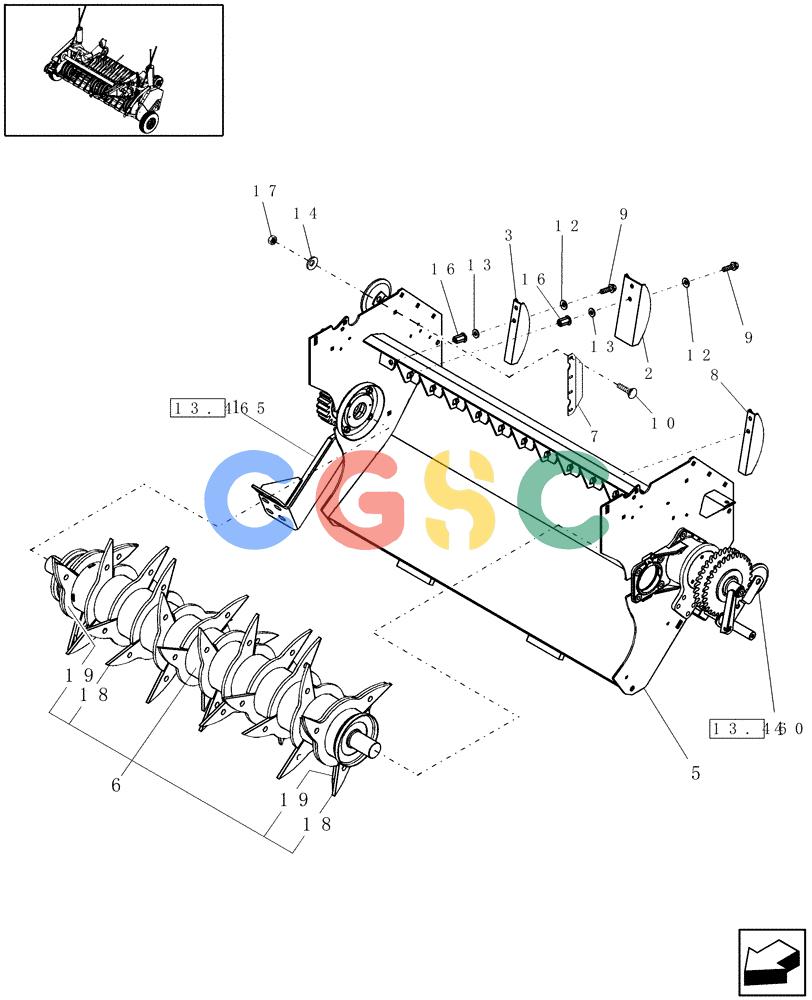

凯斯零件查询(RBX452) - CASE IH ROUND BALER (11/02-7/05) (13.620) - ROTOR FEEDER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
712 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Drive, Rotor, RH
|
| 2. |
86613005
|
[11] |
STRIP
|
NH
Superseded by part number: 87037484
|
| 2. |
87036958
|
[11] |
CHANNEL
|
PA
Superseded by part number: 87648312
|
| 3. |
86603220
|
[2] |
STRIP
|
NH
RH Superseded by part number: 87036265
|
| 5. |
86635198
|
[1] |
FRAME ASSY
|
PA
Rotor
|
| 6. |
86642417
|
[1] |
ROTOR ASSY.
|
PA
Feeder, 3/8" Tk. Fingers - 3 Piece Superseded by part number: 87036974
|
| 6. |
87036974
|
[1] |
ROTOR
|
PA
Feeder, 5/16" Tk. Fingers - 1 Piece
|
| 9. |
844-8025
|
[26] |
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9671714
|
| 12. |
322358
|
[26] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 13. |
495-11034
|
[1] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| 16. |
86610201
|
[26] |
INSERT,M8
|
NH
Threaded, M8
|
| 18. |
87032628
|
[12] |
FINGER
|
PA
Large, 422 mm OD
|
| 19. |
87032629
|
[2] |
FINGER
|
PA
Small, 399 mm OD
|
