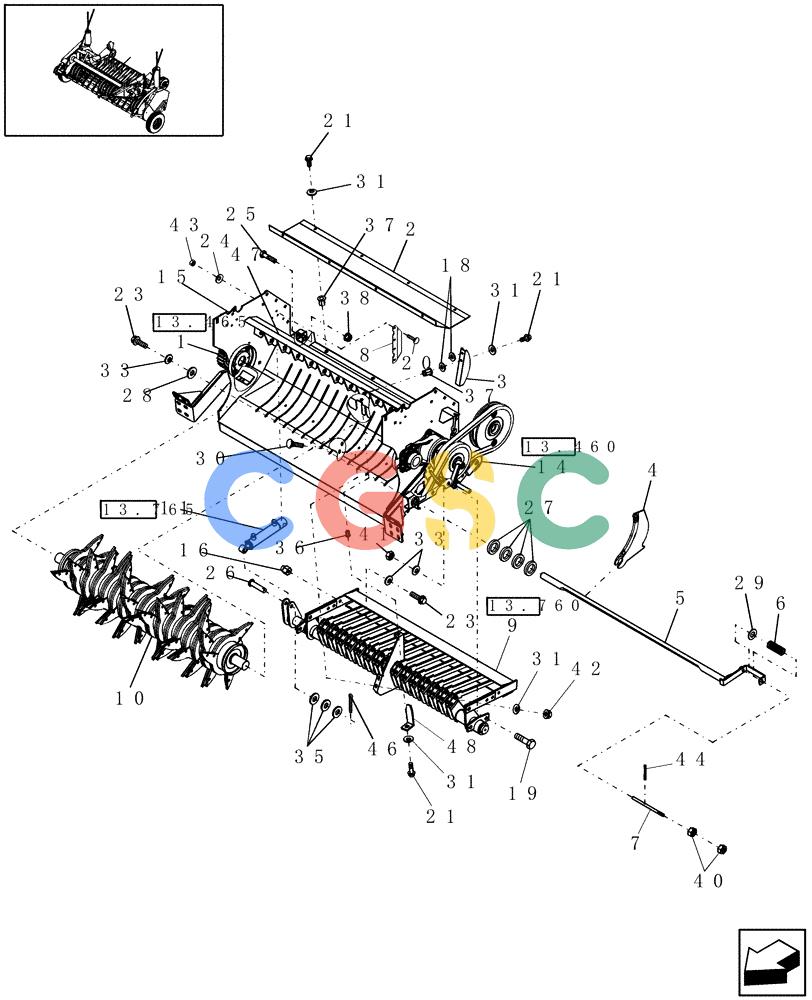

| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Rotor Drive, RH
|
| 2. |
86611205
|
[1] |
SHIELD
|
NH
|
| 3. |
86603220
|
[16] |
STRIP
|
NH
Center, 33mm Wide Superseded by part number: 87036265
|
| 3. |
87036957
|
[16] |
PROTECTION STRIP
|
PA
Center, 36mm Wide Superseded by part number: 87649040
|
| 3. |
87043204
|
[1] |
SUPPORT
|
PA
Center, RH Superseded by part number: 87723314
|
| 4. |
86610560
|
[15] |
KNIFE
|
NH
Heat-Treated Superseded by part number: 87030467
|
| 4. |
87030467
|
[15] |
KNIFE
|
PA
Heat-Treated & Hard-Faced
|
| 4. |
87039475
|
[1] |
KIT
|
PA
Knife, Includes: (15) 87030467, Heat-Treated & Hard-Faced
|
| 5. |
86610126
|
[1] |
SHAFT
|
NH
Superseded by part number: 87649169
|
| 6. |
151990
|
[1] |
SPRING,22.2mm OD x 127mm L
|
NH
|
| 7. |
84056189
|
[1] |
PIN
|
ZED
|
| 8. |
87037768
|
[2] |
DEFLECTOR
|
PA
|
| 10. |
86627558
|
[1] |
ROTOR
|
PA
Superseded by part number: 87036960
|
| 11. |
87023411
|
[1] |
HYDRAULIC CYLINDER
|
NH
Rotor Knife Superseded by part number: 87029395
|
| 11. |
87029395
|
[1] |
CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke
|
PA
Rotor Knife
|
| 12. |
87036972
|
[1] |
SHIM
|
PA
|
| 13. |
87043203
|
[1] |
SUPPORT
|
PA
Center, LH Superseded by part number: 87648571
|
| 15. |
86628525
|
[1] |
ROTOR ASSY.
|
PA
Frame Superseded by part number: 87036972, 87036626, 87649386, 87035999
|
| 16. |
84039310
|
[2] |
HEX PLUG,44mm L
|
ZED
Int. Thread, M12 x 1.75
|
| 18. |
495-11034
|
[1] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| 19. |
43167
|
[4] |
BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd
|
NH
|
| 20. |
9706703
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 21. |
844-8025
|
[45] |
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9671714
|
| 22. |
811-10025
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 86633356
|
| 23. |
614-12030
|
[15] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 24. |
322357
|
[8] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 25. |
413-1256
|
[1] |
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5
|
CAS
Superseded by part number: 86977759
|
| 26. |
270134
|
[1] |
CLEVIS PIN
|
BEL
5/8" x 2 -3/4"
|
| 27. |
164995
|
[1] |
WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk
|
NH
1-1/4"
|
| 28. |
80700
|
[1] |
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
|
NH
|
| 29. |
495-11053
|
[5] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 30. |
811-8020
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 31. |
322358
|
[47] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 32. |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 33. |
140046
|
[15] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 34. |
140048
|
[4] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 35. |
273127
|
[3] |
WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk
|
NH
1-1/8" OD
|
| 36. |
86610200
|
[1] |
THREADED INSERT,M8 x 1.25
|
NH
M8
|
| 37. |
86610201
|
[44] |
INSERT,M8
|
NH
Threaded, M8
|
| 38. |
231-41412
|
[1] |
NUT,3/4"-10, GB
|
CAS
Superseded by part number: 280375
|
| 39. |
825-2410
|
[6] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 40. |
825-1412
|
[2] |
NUT,M12, Cl 8
|
CAS
Superseded by part number: 9706685
|
| 41. |
825-1416
|
[4] |
NUT,M16, Cl 8
|
CAS
Superseded by part number: 100020
|
| 42. |
825-2408
|
[2] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 43. |
825-2406
|
[8] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 44. |
838-5526
|
[1] |
LOCK PIN,M5 x 26, Slotted
|
CAS
Superseded by part number: 82848074, 130045
|
| 46. |
432-824
|
[1] |
COTTER PIN,1/8" x 1 1/2"
|
CAS
Superseded by part number: 80708
|
| 47. |
87036192
|
[1] |
GRILLE
|
PA
Superseded by part number: 87649386
|
| 48. |
87033695
|
[1] |
BRACKET
|
PA
|
