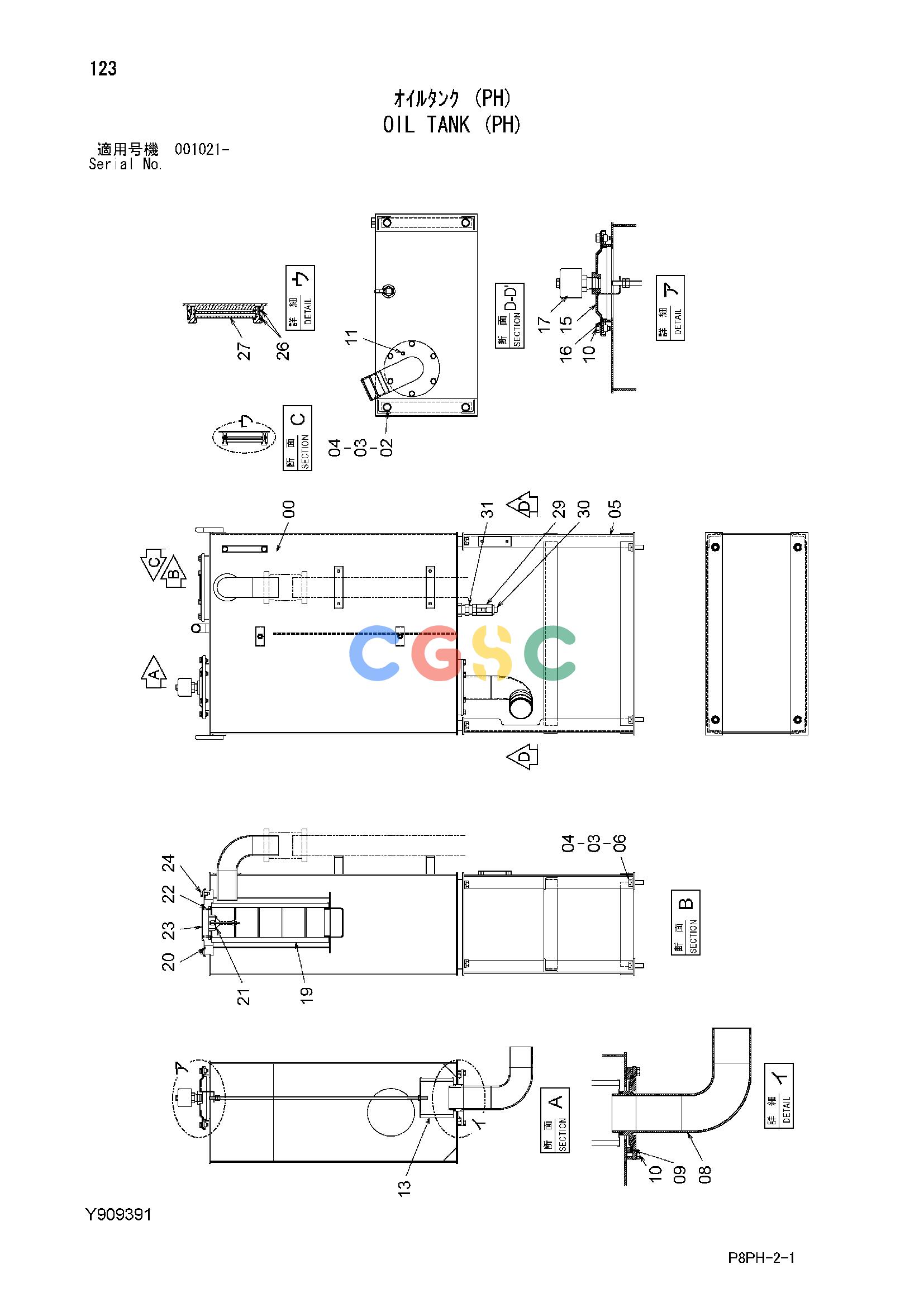

日立零件查询（AR2000）OIL TANK (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
156 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y600439 | [1] | TANK;OIL | |
| 02. | J901630 | [4] | BOLT | |
| 03. | A590116 | [8] | WASHER;PLANE | |
| 04. | A590916 | [8] | WASHER;SPRING | |
| 05. | Y700902 | [1] | STAND | |
| 06. | J901640 | [4] | BOLT | |
| 08. | Y802028 | [1] | PIPE;SUCTION | |
| 09. | A810165 | [1] | O-RING | |
| 10. | J271025 | [12] | BOLT;SEMS | |
| 10A. | J901025 | [1] | BOLT | |
| 10B. | J222010 | [1] | WASHER | |
| 11. | 94-2011 | [1] | PLUG | |
| 13. | 4318736 | [1] | FILTER;SUCTION | |
| 13A. | 4210224 | [1] | STRAINER | |
| 15. | 8056948 | [1] | COVER | |
| 16. | A810160 | [1] | O-RING | |
| 17. | 4141320 | [1] | BREATHER;AIR | |
| 17A. | 4167549 | [1] | ELEMENT | |
| 19. | 4292789 | [1] | ELEMENT;FILTER | |
| 20. | A810190 | [1] | O-RING | |
| 21. | 4180414 | [1] | VALVE | |
| 22. | 4226549 | [1] | SPRING | |
| 23. | 4204057 | [1] | COVER | |
| 24. | J271020 | [6] | BOLT;SEMS | |
| 24A. | J901020 | [1] | BOLT | |
| 24B. | J222010 | [1] | WASHER | |
| 26. | 449558 | [4] | WASHER;SEAL | |
| 27. | 8053499 | [1] | GAUGE;LEVEL | |
| 27A. | 4100967 | [2] | BOLT | |
| 29. | 94-4030 | [1] | COCK | |
| 30. | 94-2026 | [1] | PLUG | |
| 31. | 94-1705 | [1] | ADAPTER;S | |
