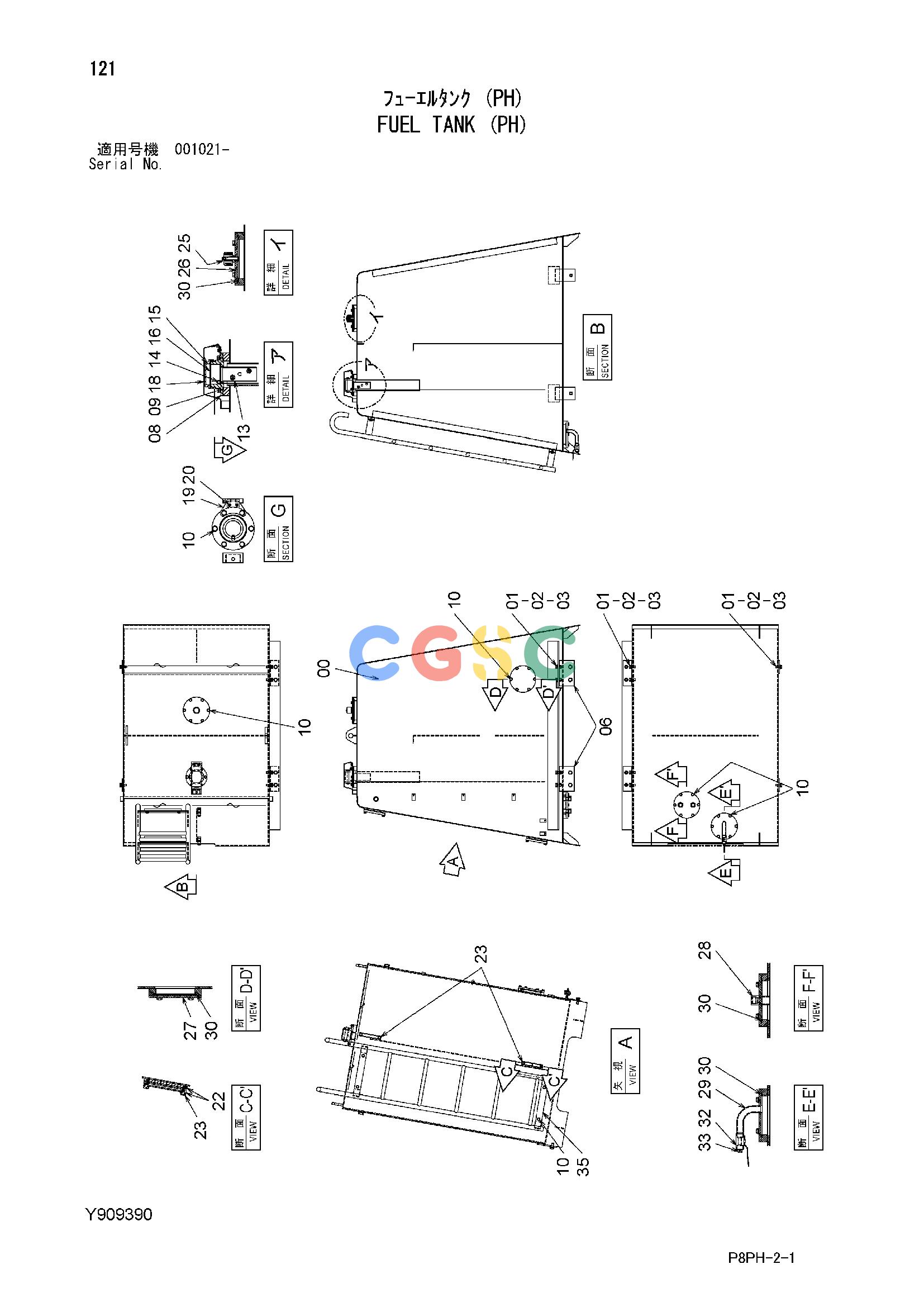

日立零件查询（AR2000）FUEL TANK (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
312 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y600438 | [1] | TANK;FUEL | |
| 01. | J901640 | [10] | BOLT | |
| 02. | A590116 | [10] | WASHER;PLANE | |
| 03. | A590916 | [10] | WASHER;SPRING | |
| 06. | Y971358 | [2] | BRACKET | |
| 08. | Y801658 | [1] | FLANGE | |
| 09. | A810115 | [1] | O-RING | |
| 10. | J271025 | [34] | BOLT;SEMS | |
| 10A. | J901025 | [1] | BOLT | |
| 10B. | J222010 | [1] | WASHER | |
| 13. | 4121496 | [1] | FILTER | |
| 14. | Y200340 | [1] | GAUGE;LEVEL | |
| 15. | 3502384 | [1] | CAP | |
| 16. | 4031285 | [1] | PACKING;RUBBER | |
| 18. | Y801803 | [1] | COVER | |
| 19. | Y409914 | [1] | BRACKET | |
| 20. | M430610 | [2] | SCREW | |
| 22. | 449558 | [8] | WASHER;SEAL | |
| 23. | 8033923 | [2] | GAUGE;LEVEL | |
| 23A. | 4100967 | [2] | BOLT | |
| 25. | 4351039 | [1] | BREATHER;AIR | |
| 25A. | 4211473 | [1] | ELEMENT | |
| 25B. | J900610 | [1] | BOLT | |
| 25C. | A590906 | [1] | WASHER;SPRING | |
| 25D. | A590106 | [1] | WASHER;PLANE | |
| 26. | 4056216 | [1] | COVER | |
| 27. | 4346695 | [1] | COVER | |
| 28. | Y802025 | [1] | FLANGE | |
| 29. | Y802026 | [1] | FLANGE | |
| 30. | A810165 | [4] | O-RING | |
| 32. | 94-4029 | [1] | COCK | |
| 33. | 94-2025 | [1] | PLUG | |
| 35. | Y802027 | [1] | LADDER | |
