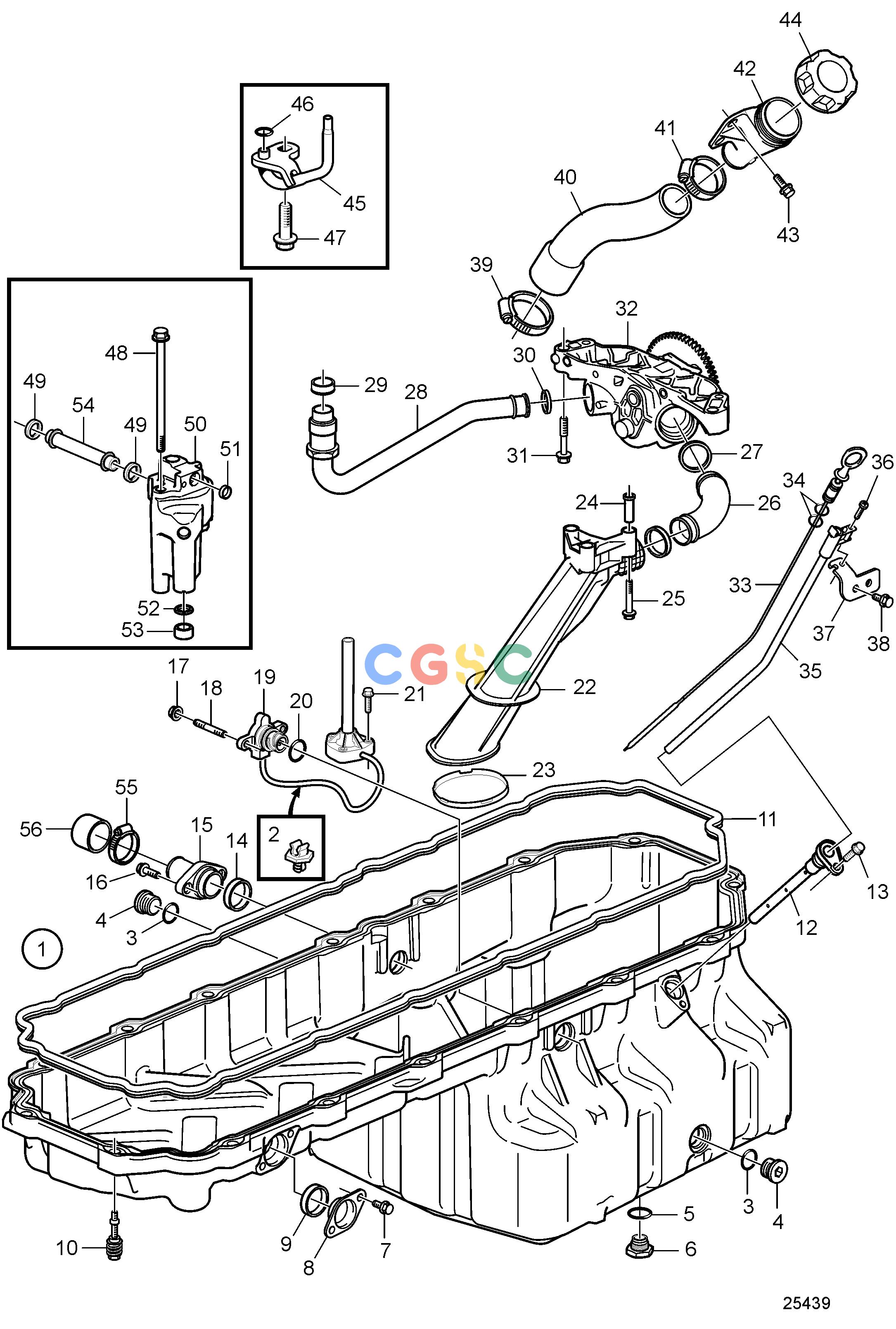

沃尔沃零件查询D16C-D MHLubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
346 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20775763
|
[1] |
Oil pan
|
|
| 2. |
20700754
|
[3] |
Retainer
|
|
| 3. |
968209
|
[2] |
O-ring
|
|
| 4. |
968612
|
[2] |
Plug
|
|
| 5. |
20579690
|
[1] |
Sealing ring
|
|
| 6. |
20571854
|
[1] |
Magnetic plug
|
|
| 7. |
984733
|
[2] |
Flange screw
|
|
| 8. |
3964803
|
[1] |
Plug
|
|
| 9. |
21780376
|
[1] |
Sealing ring
|
|
| 10. |
20739547
|
[16] |
Flange screw
|
|
| 11. |
20734156
|
[1] |
Sealing strip
|
|
| 12. |
21523327
|
[1] |
Pipe
|
|
| 13. |
984734
|
[1] |
Flange screw
|
|
| 14. |
21780376
|
[1] |
Sealing ring
|
|
| 15. |
20462497
|
[1] |
Connection pipe
|
|
| 16. |
984734
|
[2] |
Flange screw
|
|
| 17. |
990939
|
[2] |
Flange nut
|
|
| 18. |
953035
|
[2] |
Stud
|
|
| 19. |
47706540_073
|
|
Oil pressure sensor
|
|
| 20. |
990719
|
[1] |
O-ring
|
|
| 21. |
984728
|
[3] |
Flange screw
|
|
| 22. |
20547257
|
[1] |
Oil strainer
|
|
| 23. |
8131965
|
[1] |
Strainer
|
|
| 24. |
20547263
|
[3] |
Spacer sleeve
|
|
| 25. |
978267
|
[3] |
Flange screw
|
|
| 26. |
21175297
|
[1] |
Suction pipe
|
|
| 27. |
21780376
|
[2] |
Sealing ring
|
|
| 28. |
20708889
|
[1] |
Pressure pipe
|
|
| 29. |
980790
|
[1] |
Ferrule
|
|
| 30. |
1543578
|
[1] |
Sealing ring
|
|
| 31. |
21344756
|
[4] |
Flange screw
|
|
| 32. |
21708142
|
[1] |
Oil pump
|
|
| 33. |
21875144
|
[1] |
Oil dipstick
|
|
| 34. |
949187
|
[2] |
O-ring
|
|
| 35. |
3841227
|
[1] |
Pipe
|
|
| 36. |
975371
|
[1] |
Six point socket scr
|
|
| 37. |
|
|
|
|
| 38. |
984733
|
[2] |
Flange screw
|
|
| 39. |
961671
|
[1] |
Hose clamp
|
|
| 40. |
3841223
|
[1] |
Hose
|
|
| 41. |
22274885
|
[1] |
Hose clamp
|
|
| 42. |
20808091
|
[1] |
Oil filler pipe
|
|
| 43. |
994383
|
[2] |
Flange screw
|
|
| 44. |
20807510
|
[1] |
Oil filler cap
|
|
| 45. |
3839496
|
[6] |
Piston cooling jet
|
|
| 46. |
976012
|
[6] |
O-ring
|
|
| 47. |
980760
|
[6] |
Flange screw
|
|
| 48. |
60110410
|
[2] |
Flange screw
|
|
| 49. |
1677370
|
[2] |
Sealing ring
|
|
| 50. |
21105100
|
[1] |
Intermediate housing
|
|
| 51. |
955082
|
[3] |
Cap plug
|
|
| 52. |
20526428
|
[1] |
Sealing ring
|
|
| 53. |
20775471
|
[1] |
Spacer sleeve
|
|
| 54. |
20571452
|
[1] |
Outlet pipe
|
|
| 55. |
22274885
|
[1] |
Hose clamp
|
|
| 56. |
424543
|
[1] |
Rubber plug
|
|
