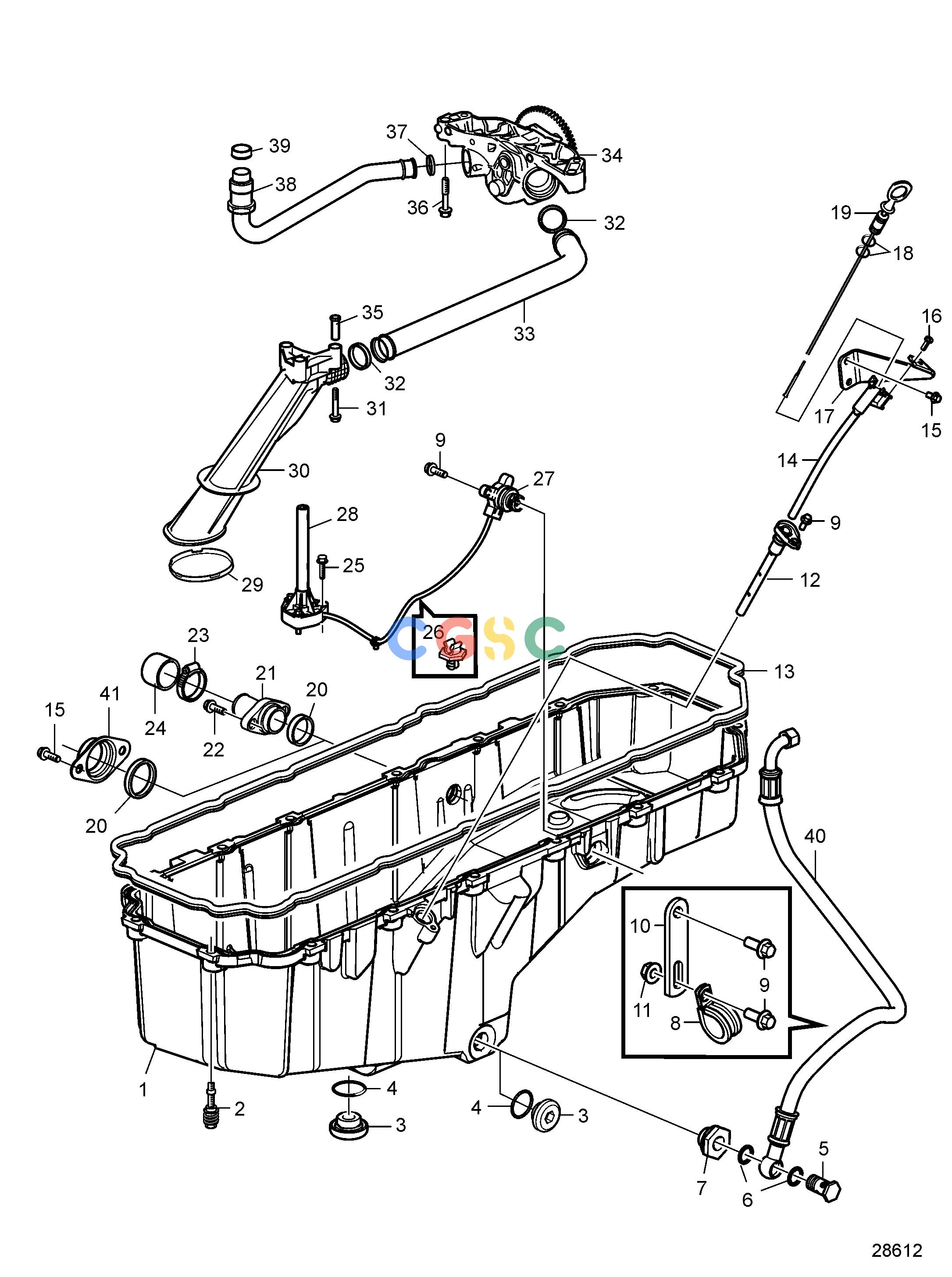

沃尔沃零件查询D16C-D MHLubricating SystemLubrication System oilsump deep frontEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
723 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22602424
|
[1] |
Oil pan
|
|
| 2. |
21035968
|
[16] |
Flange screw
|
Replaced by 22859764
|
| 2. |
22859764
|
[16] |
Flange screw
|
|
| 3. |
11127354
|
[2] |
Magnetic plug
|
|
| 4. |
948610
|
[2] |
O-ring
|
|
| 5. |
966821
|
[1] |
Hollow screw
|
|
| 6. |
18813
|
[2] |
Gasket
|
|
| 7. |
21171958
|
[1] |
Plug
|
|
| 8. |
949379
|
[1] |
Clamp
|
|
| 9. |
984734
|
[3] |
Flange screw
|
|
| 10. |
965540
|
[1] |
Bracket
|
|
| 11. |
990940
|
[1] |
Flange nut
|
|
| 12. |
21523327
|
[1] |
Pipe
|
|
| 13. |
20734156
|
[1] |
Sealing strip
|
|
| 14. |
3586522
|
[1] |
Pipe
|
|
| 15. |
984733
|
[4] |
Flange screw
|
|
| 16. |
975371
|
[1] |
Six point socket scr
|
|
| 17. |
22633562
|
[1] |
Bracket
|
|
| 18. |
949187
|
[2] |
O-ring
|
|
| 19. |
21885799
|
[1] |
Oil dipstick
|
|
| 20. |
21780376
|
[1] |
Sealing ring
|
|
| 21. |
20462497
|
[1] |
Connection pipe
|
|
| 22. |
984735
|
[2] |
Flange screw
|
|
| 23. |
22274885
|
[1] |
Hose clamp
|
|
| 24. |
424543
|
[1] |
Rubber plug
|
|
| 25. |
984728
|
[1] |
Flange screw
|
|
| 26. |
20700754
|
[1] |
Retainer
|
|
| 27. |
990719
|
[1] |
O-ring
|
|
| 28. |
22022794
|
[1] |
Oil level sensor
|
|
| 29. |
8131965
|
[1] |
Strainer
|
|
| 30. |
20547257
|
[1] |
Oil strainer
|
|
| 31. |
978267
|
[1] |
Flange screw
|
|
| 32. |
22194880
|
[2] |
Sealing ring
|
|
| 33. |
20553751
|
[1] |
Suction pipe
|
|
| 34. |
21708142
|
[1] |
Oil pump
|
|
| 35. |
20547263
|
[1] |
Spacer sleeve
|
|
| 36. |
21344756
|
[1] |
Flange screw
|
|
| 37. |
1543578
|
[1] |
Sealing ring
|
|
| 38. |
20708889
|
[1] |
Pressure pipe
|
|
| 39. |
980790
|
[1] |
Ferrule
|
|
| 40. |
21276558
|
[1] |
Oil hose
|
|
| 41. |
3964803
|
[1] |
Plug
|
|
