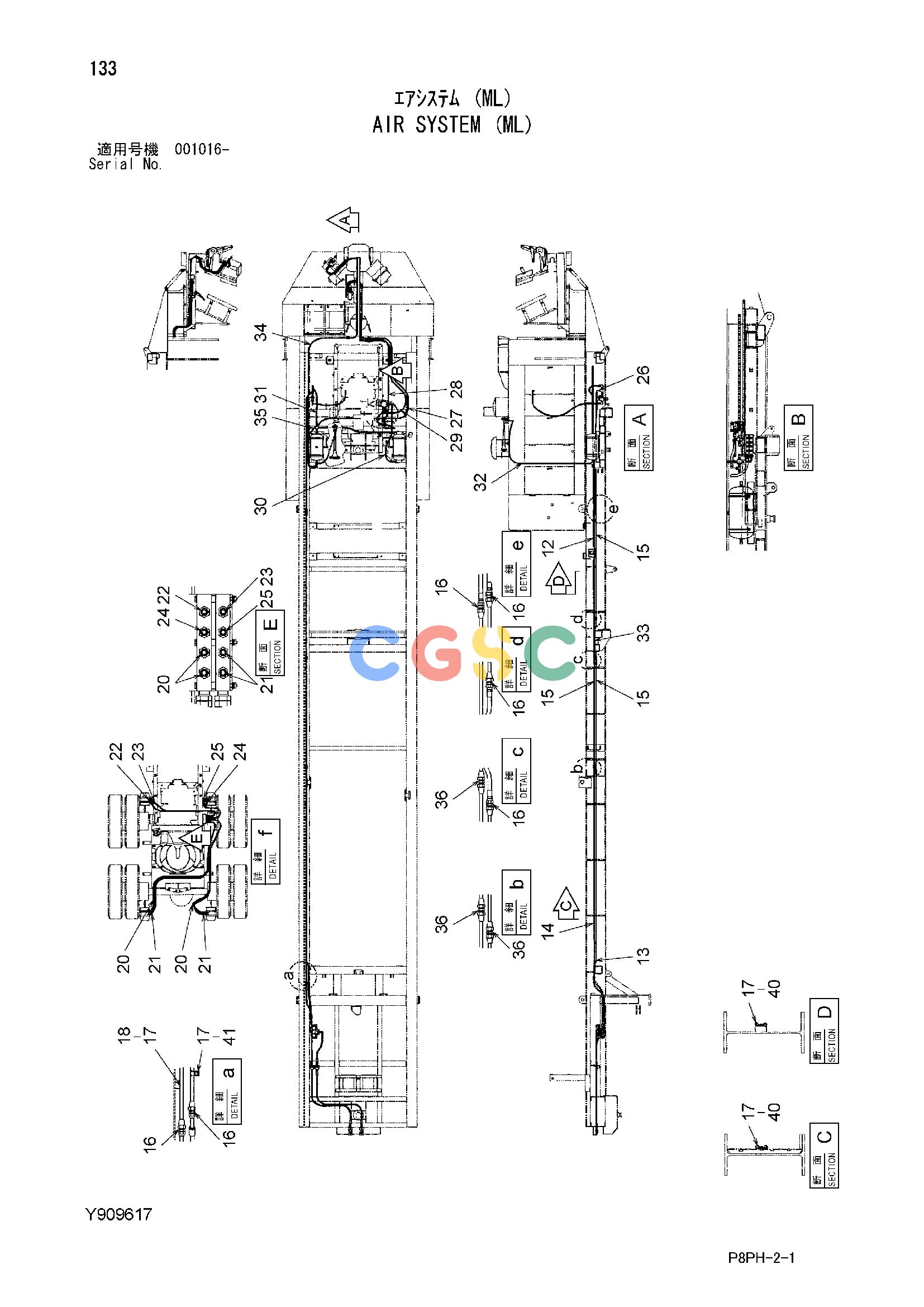

日立零件查询（AR2000）AIR SYSTEM (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
409 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 12. | Y412537 | [1] | PIPE | |
| 13. | Y412538 | [1] | PIPE | |
| 14. | Y412539 | [1] | PIPE | |
| 15. | Y412540 | [3] | PIPE | |
| 16. | Y408736 | [6] | ADAPTER;S | |
| 17. | Y409242 | [20] | CLIP;PIPE | |
| 18. | J260616 | [1] | BOLT;SEMS | |
| 18A. | J900616 | [1] | BOLT | |
| 18B. | A590106 | [1] | WASHER;PLANE | |
| 20. | Y412441 | [2] | HOSE | |
| 21. | Y412442 | [2] | HOSE | |
| 22. | Y412443 | [1] | HOSE | |
| 23. | Y412444 | [1] | HOSE | |
| 24. | Y412445 | [1] | HOSE | |
| 25. | Y412446 | [1] | HOSE | |
| 26. | Y411635 | [1] | HOSE | |
| 27. | 4305019 | [1] | HOSE | |
| 28. | 4286513 | [1] | HOSE | |
| 29. | 4266183 | [1] | HOSE | |
| 30. | Y412415 | [1] | HOSE | |
| 31. | Y408654 | [1] | HOSE | |
| 32. | 4304977 | [1] | HOSE | |
| 33. | Y408653 | [1] | HOSE | |
| 34. | 4344990 | [1] | HOSE | |
| 35. | Y408666 | [1] | HOSE | |
| 36. | Y408721 | [3] | ADAPTER;S | |
| 37. | 4327315 | [100] | PROTECTOR | dia. 10mmX600mm BLACK -50~+140℃ |
| 38. | 4327293 | [4] | PROTECTOR | dia. 10mmX600mm BLACK -40~+90℃ |
| 39. | 4327294 | [100] | PROTECTOR | dia. 18.5mmX500mm BLACK -40~+90℃ |
| 40. | J260816 | [9] | BOLT;SEMS | |
| 40A. | J900816 | [1] | BOLT | |
| 40B. | A590108 | [1] | WASHER;PLANE | |
| 41. | J260814 | [1] | BOLT;SEMS | |
| 41A. | J900814 | [1] | BOLT | |
| 41B. | A590108 | [1] | WASHER;PLANE | |
