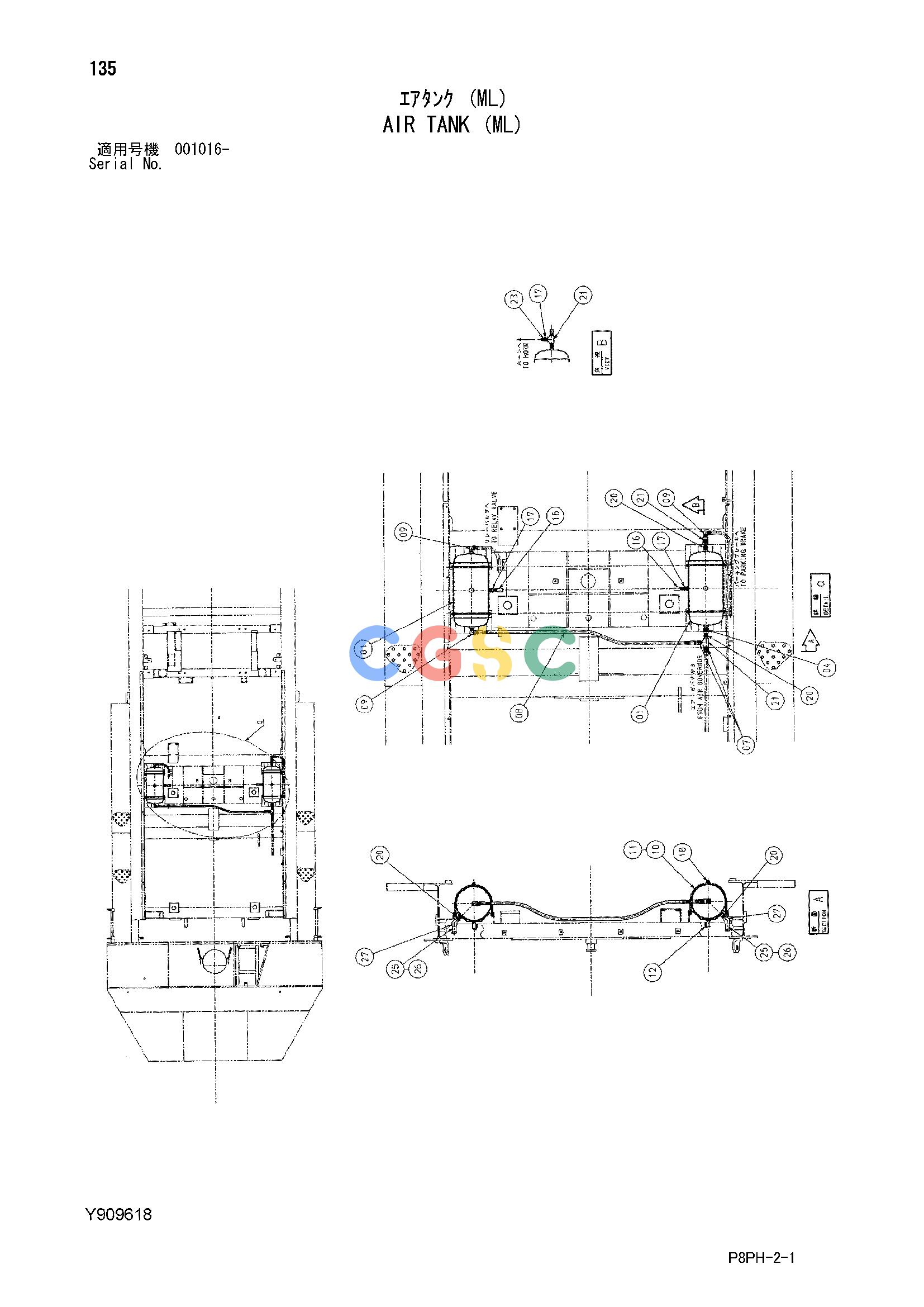

日立零件查询（AR2000）AIR TANK (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
535 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4216547 | [2] | TANK;AIR | |
| 04. | Y408794 | [1] | VALVE;CHECK | |
| 07. | 4221287 | [2] | ADAPTER;S | |
| 08. | Y408659 | [1] | HOSE | |
| 09. | 4154658 | [3] | ELBOW;S | |
| 10. | Y409049 | [4] | BOLT;U | |
| 11. | J950010 | [16] | NUT | |
| 12. | 4216548 | [2] | VALVE;DRAIN | |
| 16. | 986952 | [2] | VALVE;SAFETY | |
| 17. | 94-1608 | [3] | REDUCER | |
| 18. | 94-2024 | [2] | PLUG | |
| 20. | 94-1703 | [4] | ADAPTER;S | |
| 21. | 94-0662 | [2] | TEE;S | |
| 23. | 4154651 | [1] | ADAPTER;S | |
| 25. | Y410948 | [2] | ADAPTER | |
| 26. | Y410949 | [2] | ADAPTER | |
| 27. | 94-0602 | [2] | ELBOW;S | |
