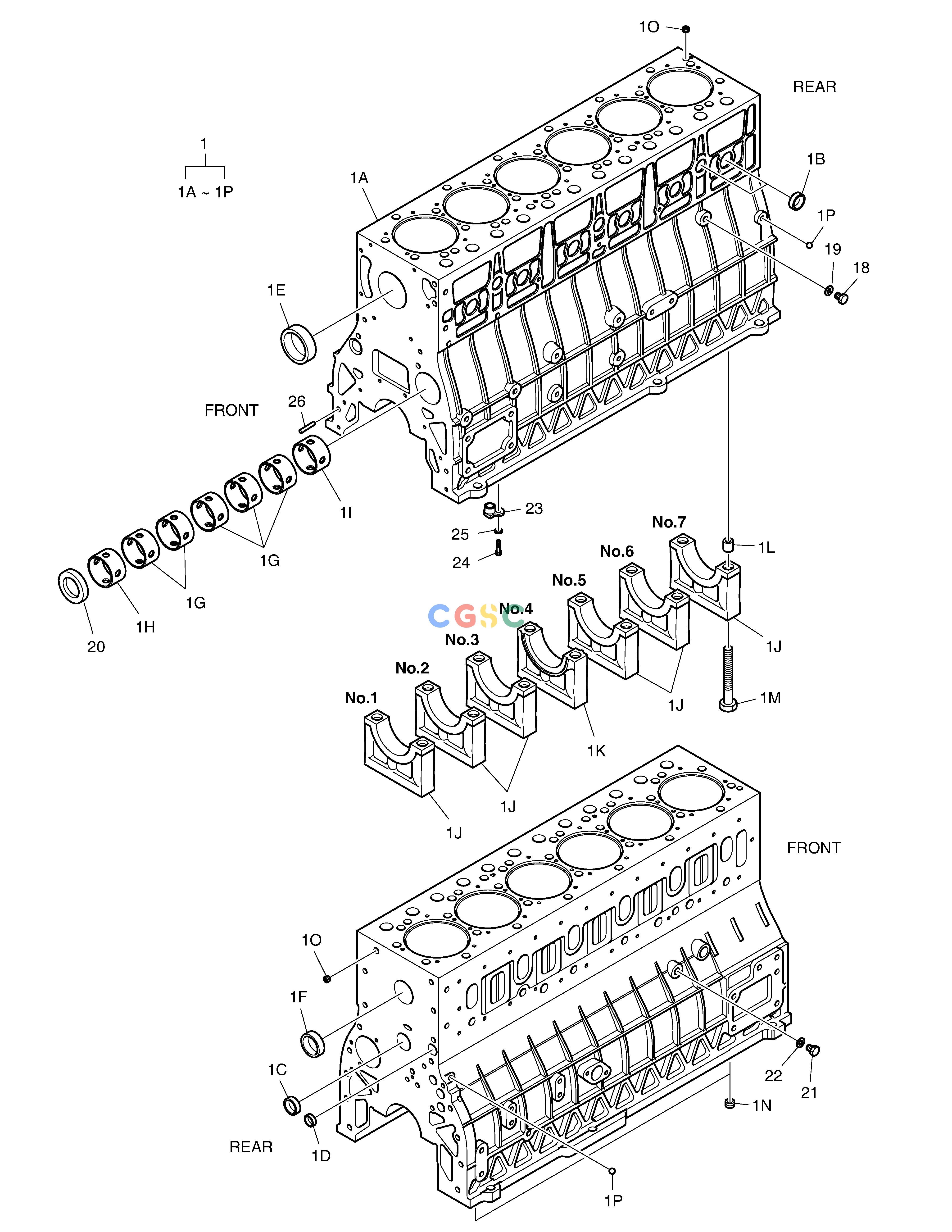

斗山零件查询CYLINDER BLOCK DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150102-00933
|
[1] |
|
|
| 1. |
150102-00129A
|
[1] |
|
|
| 18. |
65.90310-0091
|
[1] |
SCREW;PLUG M12X1.5X20
|
|
| 19. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 1A. |
150102-00348
|
[1] |
|
|
| 1B. |
65.90302-0042
|
[9] |
. PLUG;CORE
|
|
| 1C. |
65.90302-0042
|
[1] |
. PLUG;CORE
|
|
| 1D. |
65.91606-0041
|
[1] |
. PLUG;CORE
|
|
| 1E. |
65.90302-0059
|
[1] |
PLUG;CORE
|
|
| 1F. |
65.90302-0026
|
[1] |
PLUG;CORE
|
|
| 1G. |
65.04410-0017
|
[5] |
BUSH;CAM SHAFT
|
|
| 1G. |
130702-00233
|
[5] |
|
|
| 1H. |
65.04410-0019
|
[1] |
BUSH;CAM SHAFT
|
|
| 1H. |
130702-00233
|
[1] |
|
|
| 1I. |
130702-00075
|
[1] |
|
|
| 1I. |
130702-00235
|
[1] |
|
|
| 1J. |
65.01105-1049
|
[6] |
CAP;BEARING
|
|
| 1K. |
65.01105-1050
|
[1] |
CAP;BEARING
|
|
| 1L. |
65.91710-0035B
|
[14] |
RING;LOCATING
|
|
| 1M. |
65.90020-0096
|
[14] |
BOLT;COLLARED HEX.
|
|
| 1N. |
65.90310-0148
|
[2] |
SCREW;PLUG
|
|
| 1O. |
65.91001-0013A
|
[3] |
PIN;CORE
|
|
| 1P. |
06.31641-0618
|
[2] |
. BALL;STEEL
|
|
| 20. |
65.91605-0002
|
[1] |
COVER;CORE HOLE
|
|
| 21. |
65.90310-0135
|
[1] |
PLUG;SCREW
|
|
| 22. |
06.56190-0706
|
[1] |
SEAL RING
|
|
| 23. |
65.05710-0001
|
[1] |
FLANGE;CONNECTION
|
|
| 24. |
06.02090-0307
|
[1] |
BOLT;SOCKET HEAD M6X14
|
|
| 25. |
06.16731-2106
|
[1] |
WASHER
|
|
| 26. |
06.22022-1063
|
[2] |
PIN
|
|
