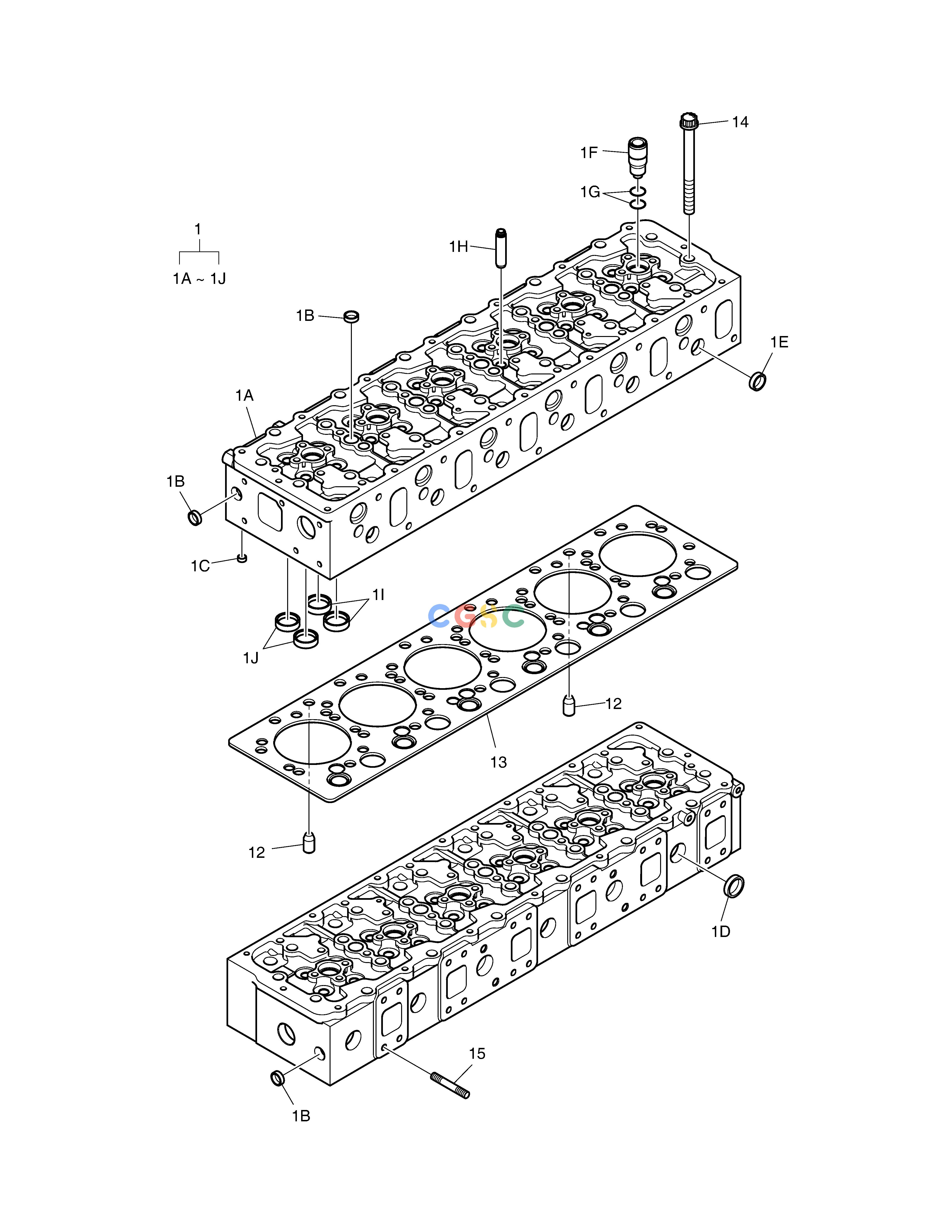

斗山零件查询CYLINDER HEAD DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
302 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150113-00120
|
[1] |
CYLINDER HEAD ASS'Y
|
|
| 12. |
65.91030-0005
|
[2] |
PIN
|
|
| 13. |
65.03901-0074
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 14. |
65.90021-0005
|
[26] |
BOLT;COLLARED HEX.
|
|
| 15. |
65.90201-0113
|
[24] |
BOLT;STUD
|
|
| 1A. |
150113-00118
|
[1] |
HEAD;CYLINDER
|
|
| 1B. |
65.90302-0045
|
[17] |
. PLUG;CORE
|
|
| 1C. |
65.90302-0027
|
[1] |
. PLUG;CORE
|
|
| 1D. |
65.90302-0042
|
[5] |
. PLUG;CORE
|
|
| 1E. |
65.90302-0048
|
[6] |
. PLUG,CORE
|
|
| 1F. |
65.03205-0006B
|
[6] |
. BUSH,INJ. NOZZLE
|
|
| 1G. |
65.96501-0088
|
[12] |
. O-RING
|
|
| 1H. |
65.03201-1052B
|
[24] |
VALVE;GUIDE
|
|
| 1I. |
65.03203-1055B
|
[12] |
SEAT;INTAKE VALVE
|
|
| 1J. |
65.03203-1056B
|
[12] |
SEAT;EXHAUST VALVE
|
|
