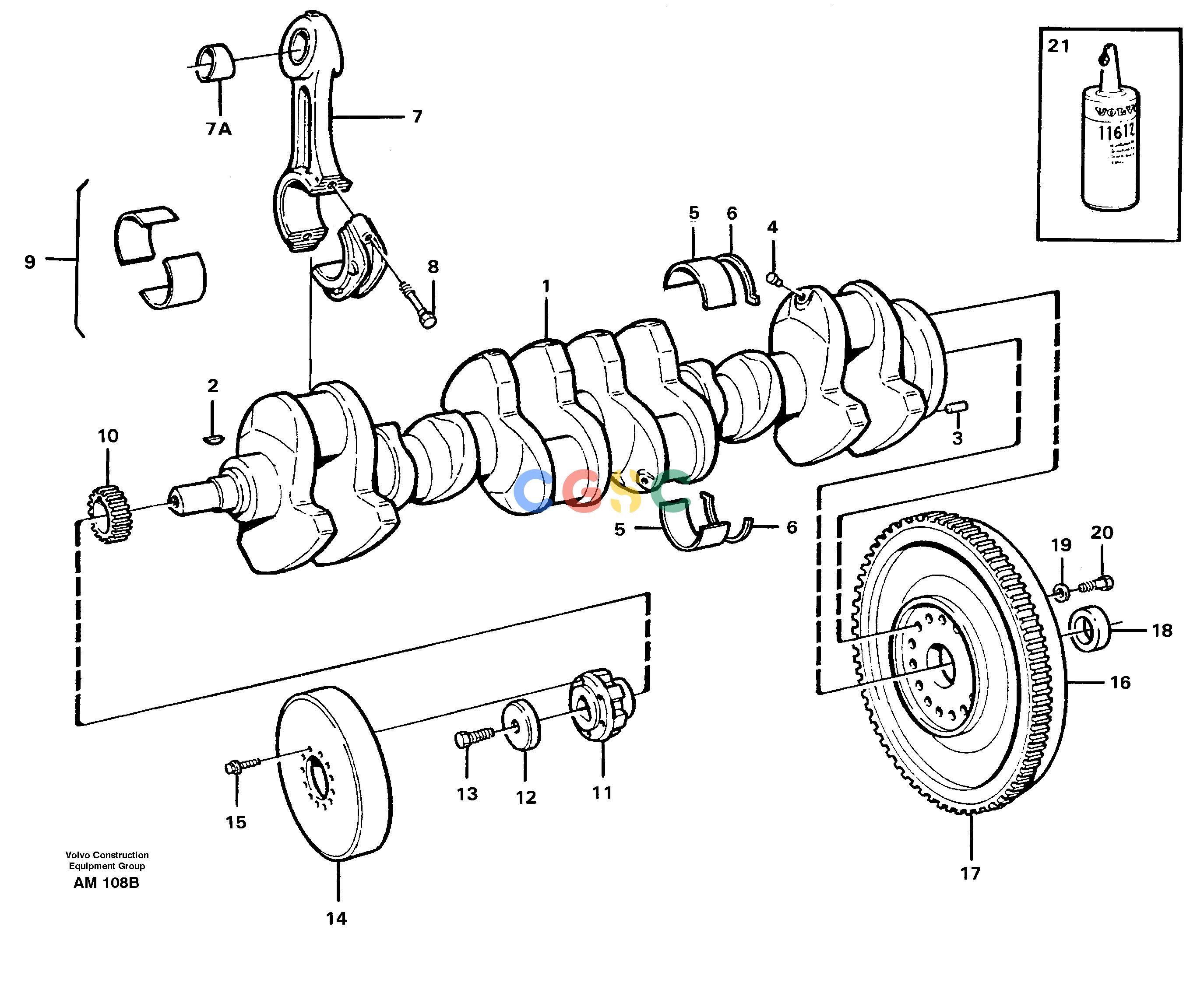

沃尔沃零件查询L330C VOLVO BM Crankshaft and related partsVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE24424603
|
[1] |
Crankshaft
|
|
| 2. |
VOE422253
|
[1] |
Key
|
|
| 3. |
VOE950644
|
[1] |
Pin
|
|
| 4. |
VOE13978130
|
[6] |
Plug
|
|
| 5. |
VOE270792
|
[7] |
Main bearing kit
|
STD SZ
|
| |
VOE270793
|
[7] |
Main bearing kit
|
0.25 MM U SZ
|
| |
VOE270794
|
[7] |
Main bearing kit
|
0.50 MM U SZ
|
| |
VOE270795
|
[7] |
Main bearing kit
|
0.75 MM U SZ
|
| 6. |
VOE270929
|
[1] |
Thrust washer kit
|
STD SZ
|
| |
VOE270930
|
[1] |
Thrust washer kit
|
0.10 MM O SZ
|
| |
VOE270931
|
[1] |
Thrust washer kit
|
0.20 MM O SZ
|
| |
VOE270932
|
[1] |
Thrust washer kit
|
0.30 MM O SZ
|
| 7. |
VOE1556319
|
[6] |
Connecting rod
|
|
| 7A. |
VOE1556321
|
[6] |
Bushing
|
|
| 8. |
VOE1543035
|
[12] |
Screw
|
|
| 9. |
VOE270796
|
[6] |
Piston Bearing
|
STD SZ
|
| |
VOE270797
|
[6] |
Piston Bearing
|
0.25 MM U SZ
|
| |
VOE270798
|
[6] |
Piston Bearing
|
0.50 MM U SZ
|
| |
VOE270799
|
[6] |
Piston Bearing
|
0.75 MM U SZ
|
| 10. |
VOE1556173
|
[1] |
Gear
|
|
| 11. |
VOE11031976
|
[1] |
Hub
|
|
| 12. |
VOE422124
|
[1] |
Washer
|
|
| 13. |
VOE1543316
|
[1] |
Screw
|
|
| 14. |
VOE1543834
|
[1] |
Vibration damper
|
|
| 15. |
VOE13965220
|
[6] |
Screw
|
ENG - 22374
|
| |
VOE13965220
|
[12] |
Screw
|
ENG 22375 -
|
| 16. |
VOE11032159
|
[1] |
Flywheel
|
|
| 17. |
VOE20711957
|
[1] |
Ring gear
|
|
| 18. |
VOE11031838
|
[1] |
Sleeve
|
|
| 19. |
VOE1677893
|
[14] |
Screw
|
|
| 20. |
VOE1543563
|
[14] |
Washer
|
|
| 21. |
VOE11713514
|
[REQ] |
Sealant
|
|
