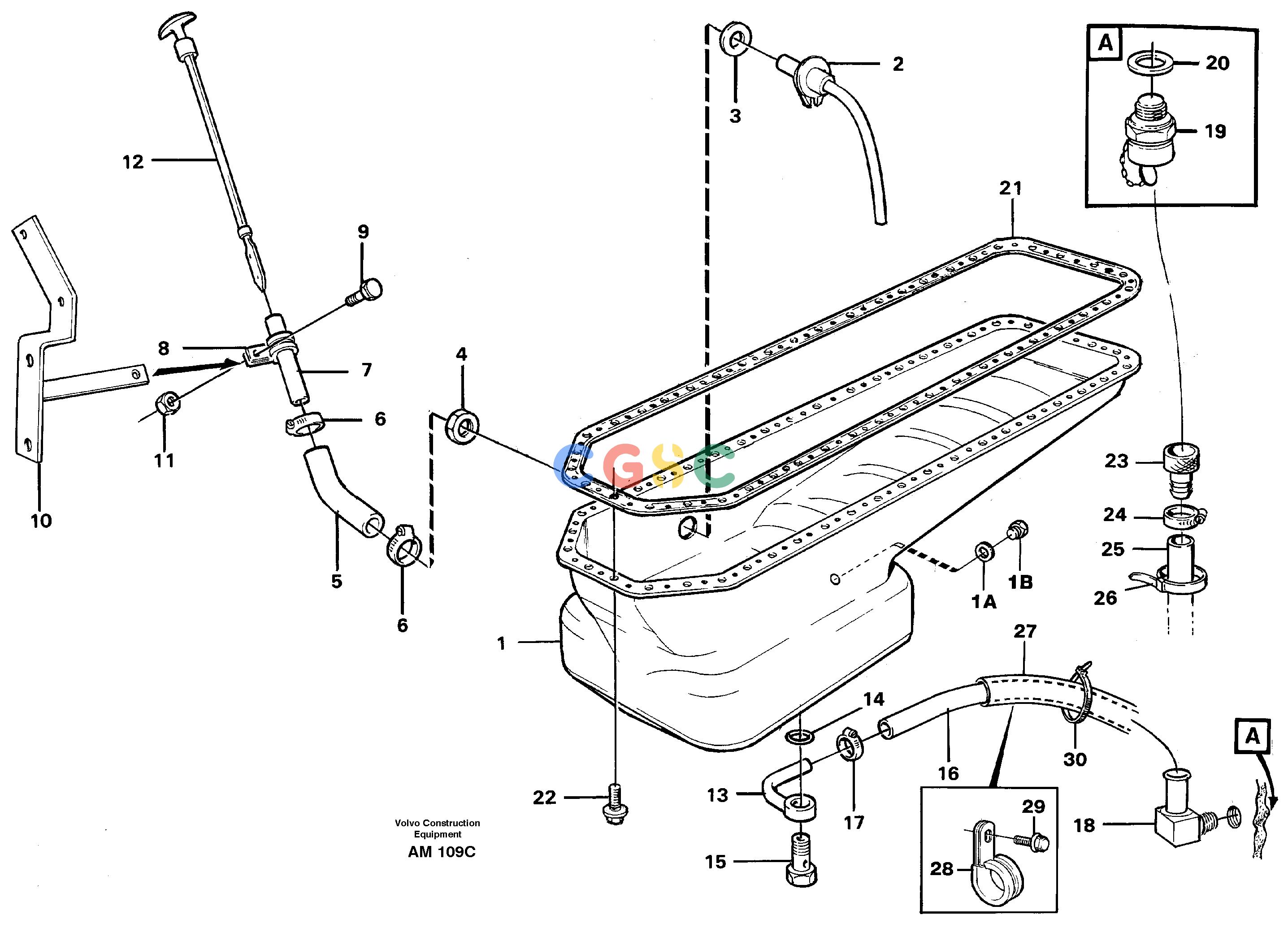

沃尔沃零件查询L330C VOLVO BM Oil sumpVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE848833
|
[1] |
Oil pan
|
STD, E PROD
|
| |
VOE11032172
|
[1] |
Oil pan
|
STD, L PROD
|
| |
VOE11046763
|
[1] |
Oil pan
|
|
| 1A. |
VOE949329
|
[1] |
Gasket
|
L PROD
|
| 1B. |
VOE946086
|
[1] |
Plug
|
L PROD
|
| 2. |
VOE11032215
|
[1] |
Tube
|
(11032088)
|
| 3. |
VOE468947
|
[1] |
Sealing ring
|
|
| 4. |
VOE468948
|
[1] |
Nut
|
|
| 5. |
VOE8149606
|
[1] |
Rubber hose
|
(8149244)
|
| 6. |
VOE13943472
|
[2] |
Hose clamp
|
|
| 7. |
VOE11032079
|
[1] |
Plastic pipe
|
|
| 8. |
VOE13949747
|
[1] |
Clamp
|
|
| 9. |
VOE946440
|
[1] |
Flange screw
|
|
| 10. |
VOE11032083
|
[1] |
Anchorage
|
|
| 11. |
VOE13945408
|
[1] |
Nut
|
|
| 12. |
VOE11032089
|
[1] |
Oil dipstick
|
|
| 13. |
VOE11093851
|
[1] |
Tube
|
SER NO - 60077
|
| |
VOE11109866
|
[1] |
Oil draining pipe
|
SER NO 60078 -
|
| 14. |
VOE13955997
|
[2] |
O-ring
|
|
| 15. |
VOE11024182
|
[1] |
Hollow screw
|
SER NO - 60077
|
| |
VOE11109227
|
[1] |
Hollow screw
|
SER NO 60078 -
|
| 16. |
VOE13961191
|
[REQ] |
Hydraulic hose
|
L = 1100 MM,
SER NO - 60077
|
| |
VOE13961193
|
[REQ] |
Hydraulic hose
|
L = 1450 MM,
SER NO 60078 -
|
| 17. |
VOE13943472
|
[2] |
Hose clamp
|
SER NO - 60077
|
| |
VOE13943474
|
[2] |
Hose clamp
|
SER NO 60078 -
|
| 18. |
VOE11046317
|
[1] |
Fitting
|
SER NO - 60077
|
| |
VOE961611
|
[1] |
Elbow nipple
|
SER NO 60078 -
|
| 19. |
VOE11054692
|
[1] |
Valve
|
|
| 20. |
VOE949329
|
[1] |
Gasket
|
|
| 21. |
VOE3827274
|
[1] |
Gasket
|
|
| 22. |
VOE946440
|
[44] |
Flange screw
|
|
| 23. |
VOE16027695
|
[1] |
Nipple
|
SER NO 60144 -
|
| 24. |
VOE13943474
|
[1] |
Hose clamp
|
SER NO 60144 -
|
| 25. |
VOE13961193
|
[REQ] |
Hydraulic hose
|
L = 600 MM, SER NO 60144-
|
| 26. |
VOE4881440
|
[1] |
Cable tie
|
SER NO 60144 -
|
| 27. |
VOE11109855
|
[1] |
Hose
|
SER NO 60180 -
|
| 28. |
VOE981653
|
[1] |
Clamp
|
SER NO 60180 -
|
| 29. |
VOE946441
|
[1] |
Flange screw
|
SER NO 60180 -
|
| 30. |
VOE4881440
|
[2] |
Cable tie
|
SER NO 60180 -
|
