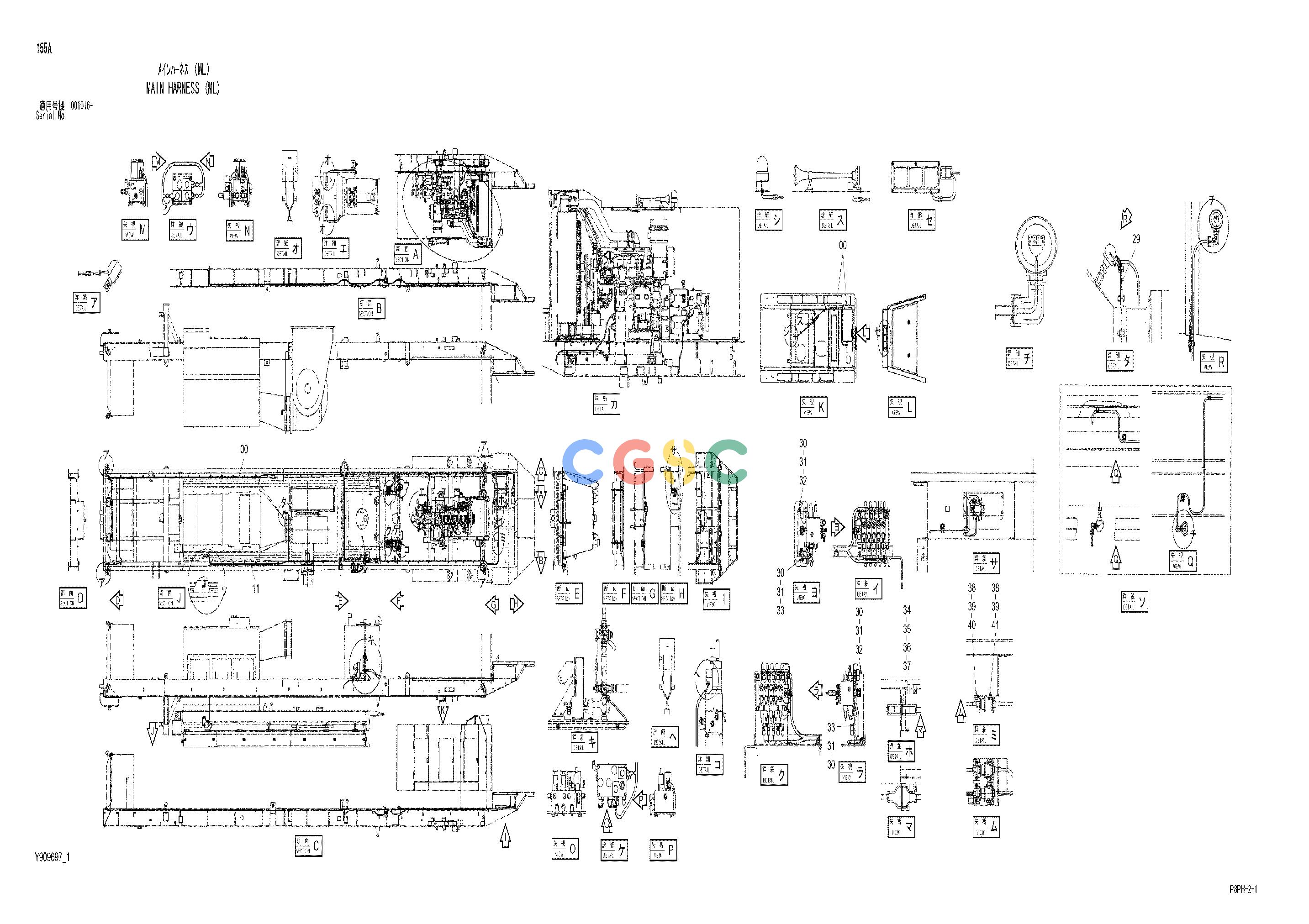

日立零件查询（AR2000）MAIN HARNESS (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
973 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y200384 | [1] | HARNESS;WIRE | |
| 05. | Y200385 | [1] | HARNESS;WIRE | |
| 07. | Y301861 | [1] | HARNESS;WIRE | |
| 09. | Y413878 | [1] | HARNESS;WIRE | |
| 11. | Y413879 | [1] | HARNESS;WIRE | |
| 13. | Y413880 | [1] | HARNESS;WIRE | |
| 15. | Y413881 | [1] | HARNESS;WIRE | |
| 17. | Y413882 | [1] | HARNESS;WIRE | |
| 21. | Y413884 | [1] | HARNESS;WIRE | |
| 23. | J901250 | [4] | BOLT | |
| 24. | J950012 | [4] | NUT | |
| 25. | A590112 | [8] | WASHER;PLANE | |
| 27. | A590912 | [4] | WASHER;SPRING | |
| 29. | Y971180 | [1] | BRACKET | |
| 30. | A590106 | [8] | WASHER;PLANE | |
| 31. | M430610 | [8] | SCREW | |
| 32. | Y414021 | [2] | PLATE | |
| 33. | Y413983 | [2] | PLATE | |
| 34. | A590104 | [16] | WASHER;PLANE | |
| 35. | A590904 | [8] | WASHER;SPRING | |
| 36. | M500403 | [8] | NUT | |
| 37. | M430420 | [8] | SCREW | |
| 38. | J260620 | [8] | BOLT;SEMS | |
| 38A. | J900620 | [1] | BOLT | |
| 38B. | A590106 | [1] | WASHER;PLANE | |
| 39. | Y413982 | [4] | TRIM;SEAL | |
| 40. | Y971586 | [2] | ANGLE | |
| 41. | Y971585 | [2] | ANGLE | |
| 42. | Y414916 | [1] | HARNESS;WIRE | |
| 43. | J271016 | [2] | BOLT;SEMS | |
| 43A. | J901016 | [1] | BOLT | |
| 43B. | J222010 | [1] | WASHER | |
| 44. | 4448037 | [2] | BRACKET | |
| 45. | Y415395 | [1] | HARNESS;WIRE | |
| 46. | Y414848 | [1] | HARNESS;WIRE | |
