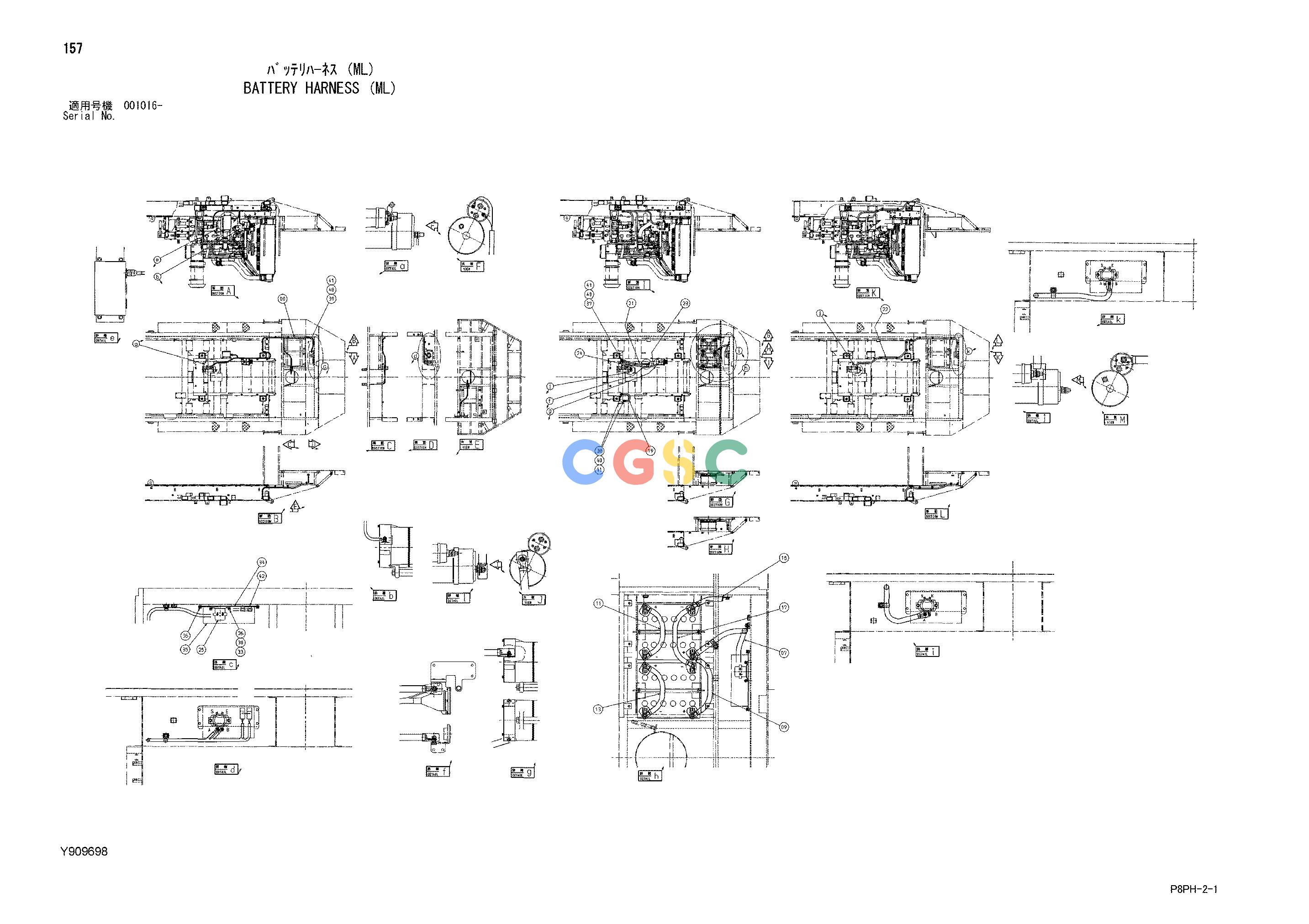

日立零件查询（AR2000）BATTERY HARNESS (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
944 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y413877 | [1] | HARNESS;WIRE | |
| 07. | Y413885 | [1] | HARNESS;WIRE | |
| 09. | Y413886 | [1] | HARNESS;WIRE | |
| 11. | Y413887 | [1] | HARNESS;WIRE | |
| 13. | Y413888 | [1] | HARNESS;WIRE | |
| 15. | Y413889 | [1] | HARNESS;WIRE | |
| 17. | Y413890 | [1] | HARNESS;WIRE | |
| 19. | Y413891 | [1] | HARNESS;WIRE | |
| 21. | Y413892 | [1] | HARNESS;WIRE | |
| 22. | Y413893 | [1] | HARNESS;WIRE | |
| 23. | Y413894 | [1] | HARNESS;WIRE | |
| 24. | Y413895 | [1] | HARNESS;WIRE | |
| 25. | 4255762 | [1] | RELAY;BATTERY | |
| 26. | J900820 | [2] | BOLT | |
| 30. | A590908 | [2] | WASHER;SPRING | |
| 33. | A590108 | [2] | WASHER;PLANE | |
| 34. | Y802184 | [1] | BRACKET | |
| 35. | Y200386 | [1] | COVER | |
| 36. | J260812 | [4] | BOLT;SEMS | |
| 36A. | J900812 | [1] | BOLT | |
| 36B. | A590108 | [1] | WASHER;PLANE | |
| 37. | J901050 | [1] | BOLT | |
| 38. | J901040 | [2] | BOLT | |
| 39. | J901030 | [1] | BOLT | |
| 40. | A590110 | [4] | WASHER;PLANE | |
| 41. | A590910 | [4] | WASHER;SPRING | |
| 42. | Y412688 | [2] | CLIP | |
