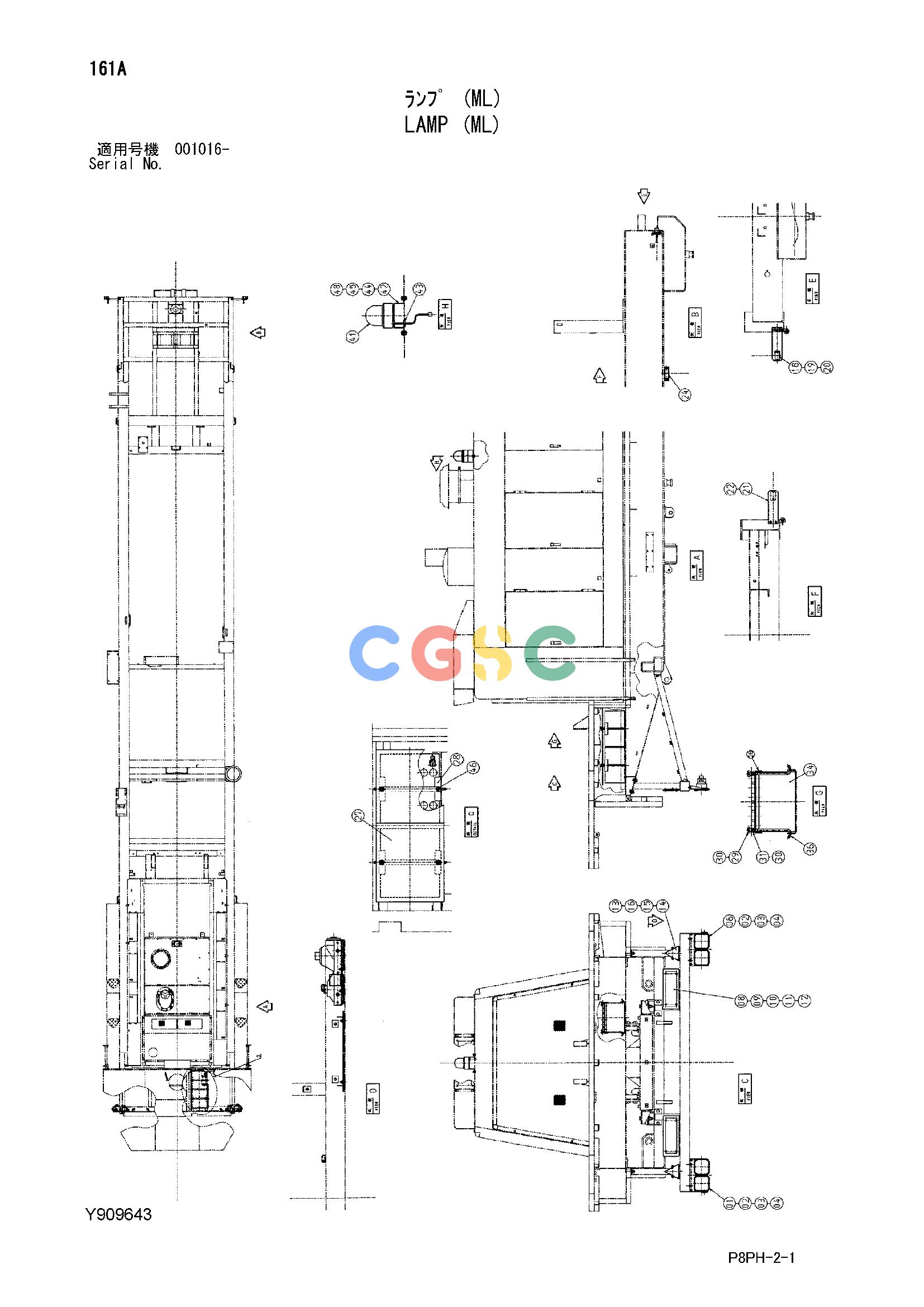

日立零件查询（AR2000）LAMP (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
924 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y410430 | [1] | LAMP;TAIL (L) | |
| 02. | A590108 | [4] | WASHER;PLANE | |
| 03. | J900820 | [4] | BOLT | |
| 04. | A590908 | [4] | WASHER;SPRING | |
| 06. | Y410429 | [1] | LAMP;TAIL (R) | |
| 08. | Y410427 | [1] | REFLECTOR | |
| 09. | M430620 | [8] | SCREW | |
| 10. | A590906 | [8] | WASHER;SPRING | |
| 11. | A590106 | [16] | WASHER;PLANE | |
| 12. | M500605 | [8] | NUT | |
| 13. | M500504 | [4] | NUT | |
| 14. | Y410428 | [2] | REFLECTOR | |
| 15. | M430516 | [4] | SCREW | |
| 16. | A590105 | [4] | WASHER;PLANE | |
| 18. | Y410426 | [2] | LAMP;CLEARANCE | |
| 19. | A590104 | [4] | WASHER;PLANE | |
| 20. | M500403 | [4] | NUT | |
| 21. | Y412456 | [2] | BRACKET | |
| 21. | Y971419 | [2] | BRACKET | |
| 22. | J271020 | [4] | BOLT;SEMS | |
| 22A. | J901020 | [1] | BOLT | |
| 22B. | J222010 | [1] | WASHER | |
| 24. | Y403964 | [2] | LAMP;SIDE | |
| 27. | Y410285 | [2] | RUBBER | |
| 27. | Y413251 | [2] | RUBBER | |
| 28. | 4257035 | [4] | SUPPORT | |
| 28. | Y413250 | [4] | SUPPORT | |
| 29. | M570010 | [4] | NUT;WING | |
| 29. | M570008 | [4] | NUT;WING | |
| 30. | A590110 | [8] | WASHER;PLANE | |
| 30. | A590108 | [8] | WASHER;PLANE | |
| 31. | J950010 | [8] | NUT | |
| 31. | J950008 | [8] | NUT | |
| 34. | 4187027 | [4] | BATTERY | |
| 34. | 4628452 | [4] | BATTERY | |
| 36. | 4359331 | [4] | BOLT;HOOK | |
| 36. | Y413248 | [4] | BOLT;HOOK | |
| 41. | 4310604 | [1] | PATROL-LIGHT | |
| 42. | Y407719 | [1] | BRACKET | |
| 43. | 94-2816 | [2] | BUSHING;RUBBER | |
| 44. | J901020 | [2] | BOLT | |
| 45. | A590910 | [2] | WASHER;SPRING | |
| 46. | Y410498 | [2] | STAY | |
| 46. | Y413249 | [2] | STAY | |
| 48. | J950010 | [2] | NUT | |
