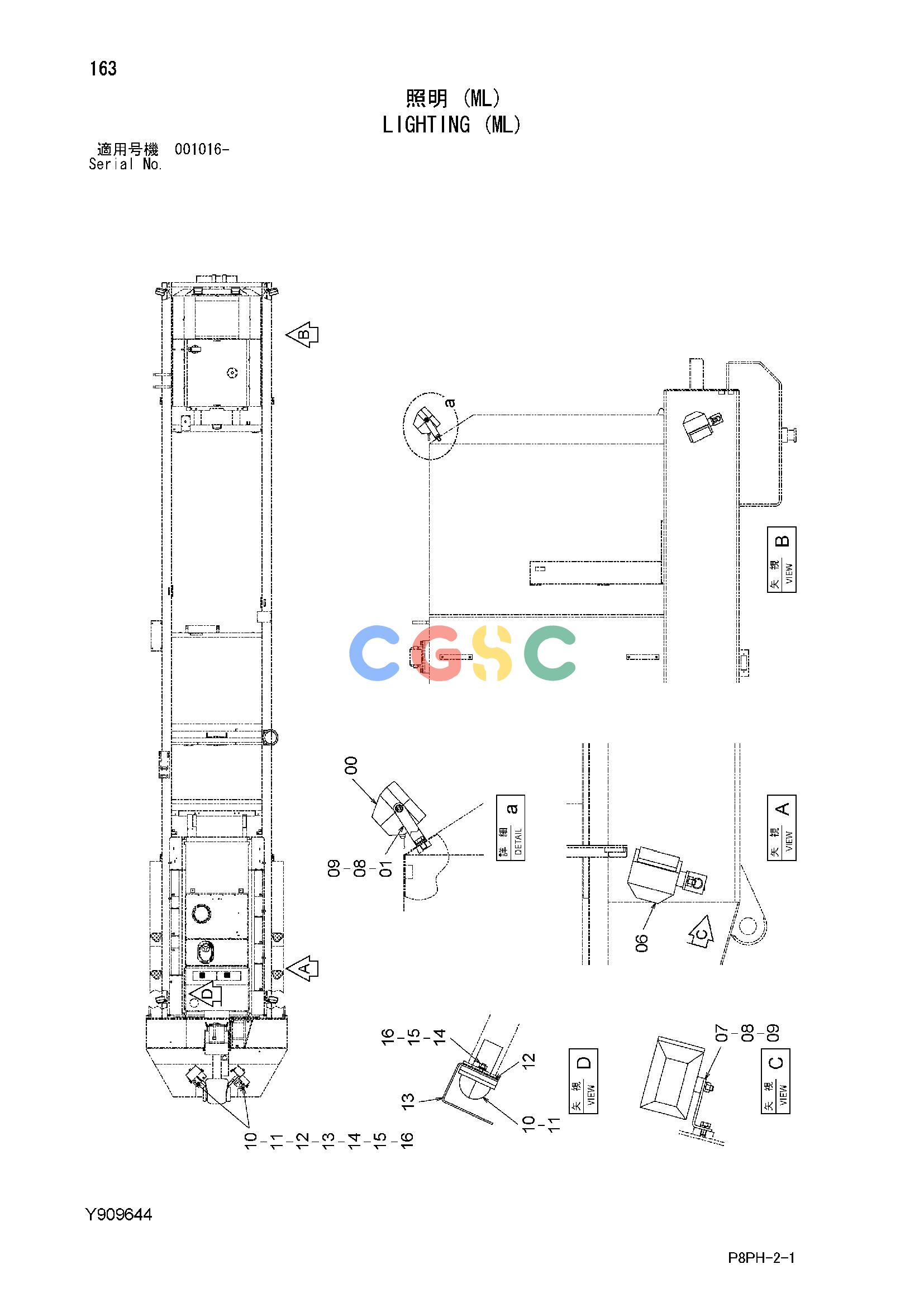

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | Y403961 | [2] | LAMP;HEAD | |
| 01. | Y411503 | [2] | BRACKET | |
| 06. | 4336570 | [4] | LAMP;HEAD | |
| 07. | 4224631 | [4] | BRACKET | |
| 08. | J901425 | [6] | BOLT | |
| 09. | A590114 | [6] | WASHER;PLANE | |
| 10. | 4426886 | [3] | LAMP | |
| 11. | Y414842 | [3] | RUBBER | |
| 12. | Y415136 | [3] | RUBBER | |
| 13. | Y415170 | [3] | COVER | |
| 14. | A590104 | [6] | WASHER;PLANE | |
| 15. | A590904 | [6] | WASHER;SPRING | |
| 16. | M500403 | [6] | NUT |
