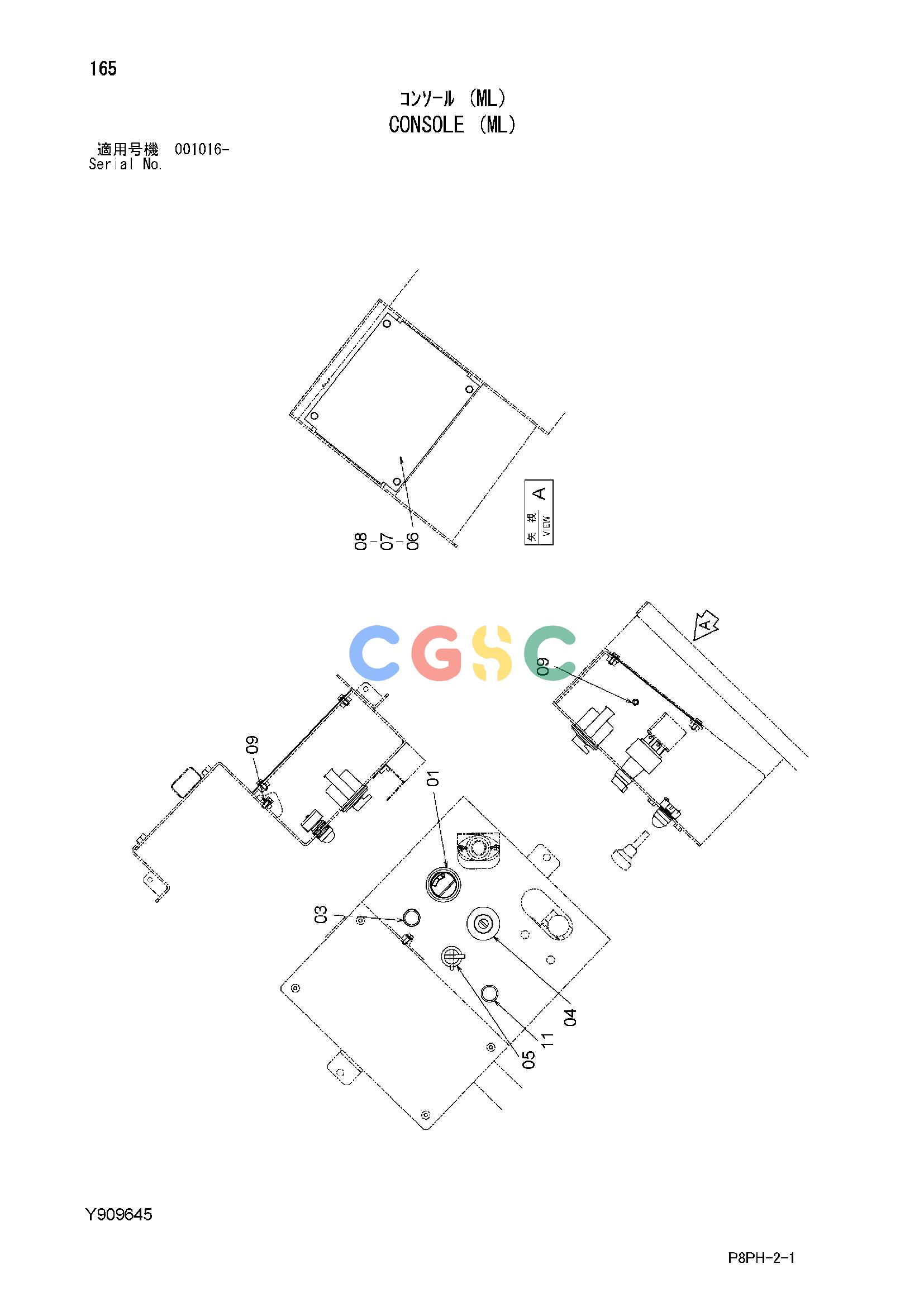

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 4254220 | [1] | METER;AIR | |
| 03. | Y411614 | [1] | LAMP;PILOT | |
| 04. | 4237504 | [1] | SWITCH;START | |
| 05. | Y408813 | [1] | SWITCH | |
| 06. | Y301705 | [1] | PLATE | |
| 07. | J900616 | [4] | BOLT | |
| 08. | A590906 | [4] | WASHER;SPRING | |
| 09. | J260610 | [1] | BOLT;SEMS | |
| 09A. | J900610 | [1] | BOLT | |
| 09B. | A590106 | [1] | WASHER;PLANE | |
| 09. | J260610 | [2] | BOLT;SEMS | |
| 09A. | J900610 | [1] | BOLT | |
| 09B. | A590106 | [1] | WASHER;PLANE | |
| 11. | Y406793 | [1] | LAMP;PILOT |
